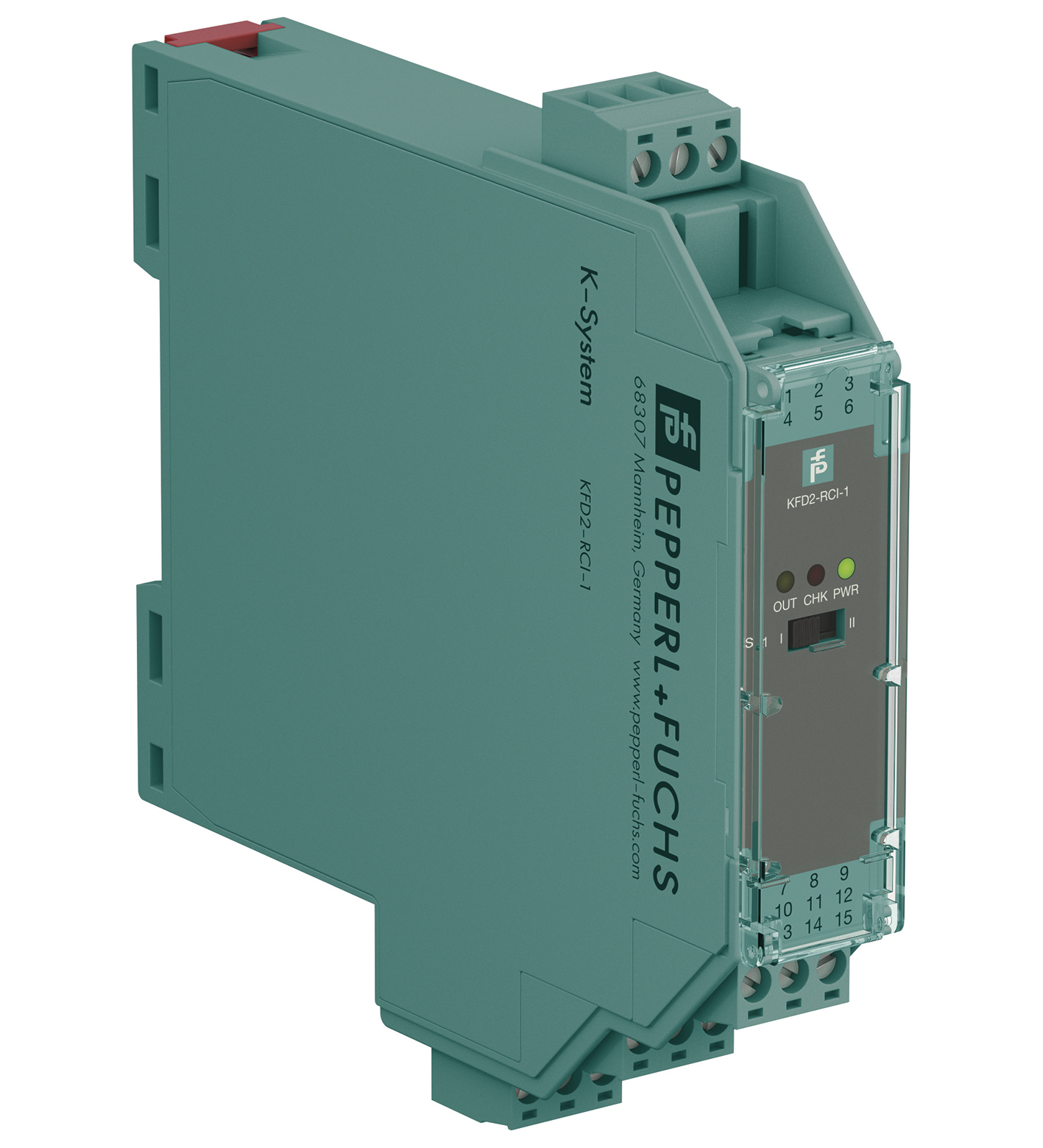

KFD2-RCI-1

Solenoid Driver. 1-channel signal conditioner, 24 V DC supply (Power Rail), Output 20.4 mA at 13.5 V DC, 19 V DC ... 30 V DC input, Test pulse immunity, Line fault detection (LFD), Up to SIL 3 acc. to...

Solenoid Driver. 1-channel signal conditioner, 24 V DC supply (Power Rail), Output 20.4 mA at 13.5 V DC, 19 V DC ... 30 V DC input, Test pulse immunity, Line fault detection (LFD), Up to SIL 3 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, Conformal coating, Safety Integrity Level (SIL): SIL 3, Rated voltage: 19 ... 30 V DC, Type: logic input, Field device: 1 x Valve, Field device [2]: 1 x audible alarm, Field device [3]: 1 x visual alarm, Fault indication output, Line fault detection. Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Connection: Power Rail or terminals 14+, 15-. Rated voltage: 19 ... 30 V DC. Rated current: < 35 mA. Power consumption: < 0.8 W. Connection side: control side. Connection: terminals 10+, 11-. Test pulse length: max. 2 ms from DO card. Input current: 40 mA at 19 ... 30 V DC. Signal level: 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC. Power consumption: < 1.2 W. Operating mode: loop powered. Connection side: field side/control side. Connection: terminals 1+, 3- (terminals 1+, 2 for test loop). Internal resistor: approx. 275 Ω. Current: ≤ 20.4 mA. Voltage: ≥ 13.5 V. Open loop voltage: > 16 V. Voltage: 1-signal: > 13.5 V. Current: 1-signal: 20.4 A 0-signal: 4.2 mA. Load: max. 650 Ω. Response time: < 40 ms input to output. Line fault detection: short circuit voltage < 1 V , open circuit voltage > 16 V. Output II: . Connectionterminal 7: source (-) or sink (+), terminal 8: source (+), terminal 9: sink (-)Current11 mA (source or sink mode)Voltage9 ... 30 V sink mode from external supplyLoadmax. 650 Ω , source mode , for HART ≥ 230 ΩCommunicationpass-through of HART signal between input II and output: . Connection: terminal 7: source (-) or sink (+), terminal 8: source (+), terminal 9: sink (-). Current: 11 mA (source or sink mode). Voltage: 9 ... 30 V sink mode from external supply. Load: max. 650 Ω , source mode , for HART ≥ 230 Ω. Communication: pass-through of HART signal between input II and output. Field circuit/control circuit: basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff. Input/power supply: functional insulation, rated insulation voltage 50 Veff. Output II/power supply: functional insulation, rated insulation voltage 50 Veff. Display elements: LEDs. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2012. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 150 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Height119 mmWidth20 mmDepth115 mm: . Height: 119 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
