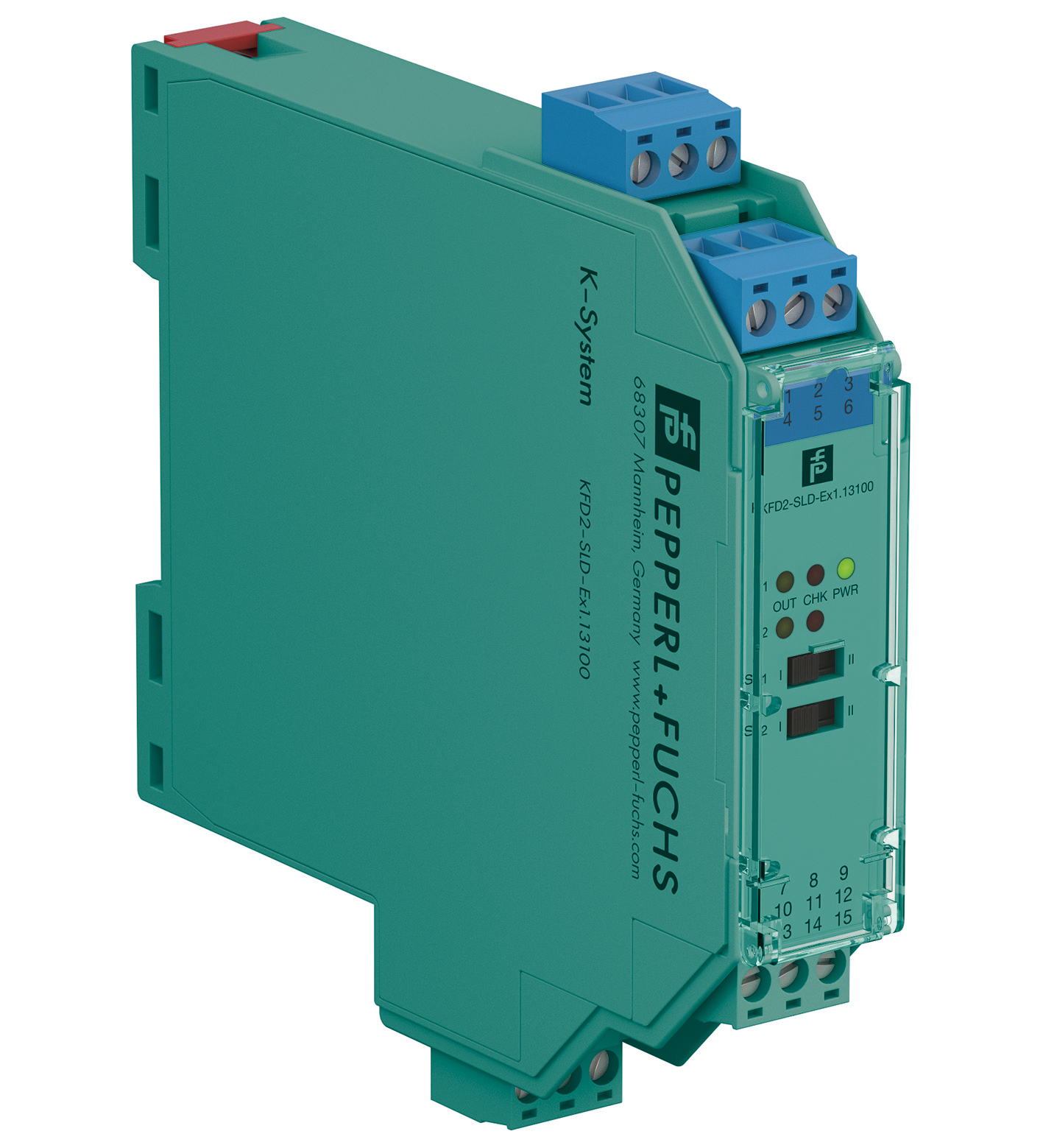

KFD2-SLD-Ex1.13100

Solenoid Driver. 1-channel isolated barrier, 24 V DC supply (Power Rail), Logic input, Output 100 mA at 13 V DC, Alternating outputs for the operation of solenoids with 2 coils, High output power for...

Solenoid Driver. 1-channel isolated barrier, 24 V DC supply (Power Rail), Logic input, Output 100 mA at 13 V DC, Alternating outputs for the operation of solenoids with 2 coils, High output power for IIB gas group, Line fault transparency (LFT), Test pulse immunity, Up to SIL 3 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, Line fault transparency, Safety Integrity Level (SIL): SIL 3, Systematic capability (SC): SC 3, Rated voltage: 19 ... 30 V DC <BR>loop powered, Type: logic input. Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Systematic capability (SC): SC 3. Connection: Power Rail or terminals 14+, 15-. Rated voltage: 19 ... 30 V DC loop powered. Input current: 115 mA at 24 V , 130 Ω load. Power dissipation: 1.5 W at 24 V , 130 Ω load. Connection side: control side. Connection: input 1: terminals 7+, 8- , optional Rext between terminals 7 and 9 input 2: terminals 10+, 11- , optional Rext between terminals 10 and 12. Test pulse length: max. 2 ms from DO card. Input current: approx. 6 mA at 24 V DC If necessary, the current value can be increased by resistor Rext.. Signal level: 1-signal: 15 ... 30 V DC 0-signal: 0 ... 5 V DC. Connection side: field side. Connection: output 1: terminals 1+, 2-, 3 output 2: terminals 4+, 5-, 6-. Internal resistor: approx. 64 Ω. Current: typ. 100 mA. Voltage: ≥ 13 V. Current limit: 105 mA. Open loop voltage: typ. 19.2 V. Load: nominal 0.08 ... 1 kΩ. Switching frequency: max. 2 Hz. Energized/De-energized delay: 30 ms / 30 ms. Input/power supply: basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff. Input/input: basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff. Output/Output: basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff. Output/other circuits: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: LEDs. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2011For further information see system description.. Degree of protection: IEC 60529:2001. Protection against electrical shock: EN 61010-1:2010. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 200 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: EXA 17 ATEX 0076X. Marking II 3(1)G Ex ec [ia IIB Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo22.2 VCurrentIo360 mAPowerPo1990 mW: . Marking: II 3(1)G Ex ec [ia IIB Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Voltage: 22.2 V. Current: 360 mA. Power: 1990 mW. Supply: . Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 60 V (Attention! The rated voltage can be lower.). Input: . Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 60 V (Attention! The rated voltage can be lower.). Galvanic isolation: . Output/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 VOutput/other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Output/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V. Output/other circuits: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012. IECEx approval: . IECEx certificateIECEx EXA 17.0019XIECEx markingEx ec [ia IIB Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I: . IECEx certificate: IECEx EXA 17.0019X. IECEx marking: Ex ec [ia IIB Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
