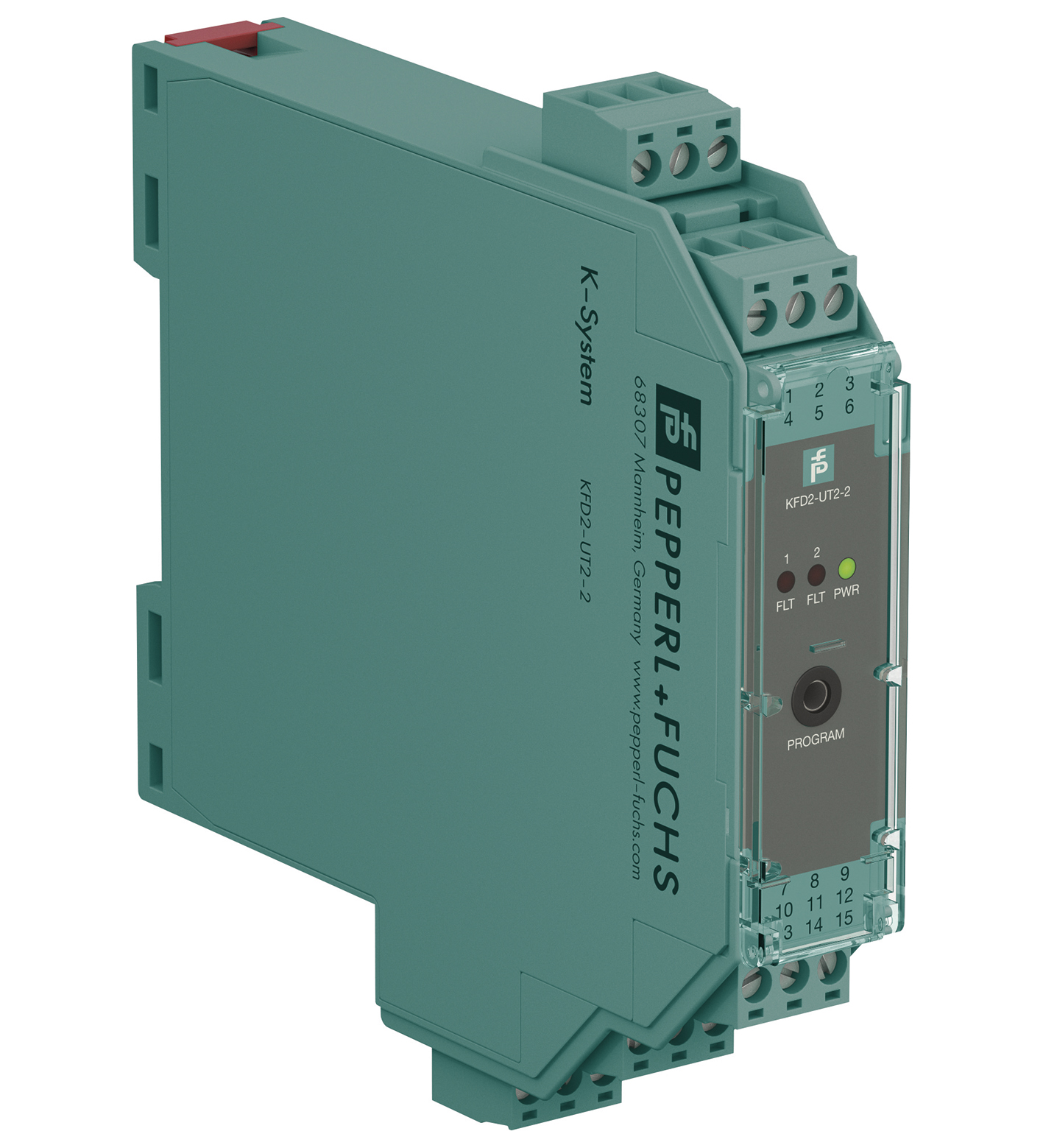

KFD2-UT2-2

Universal Temperature Converter. 2-channel signal conditioner, 24 V DC supply (Power Rail), Thermocouple, RTD, potentiometer or voltage input, Usable as signal splitter (1 input and 2 outputs), Curren...

Universal Temperature Converter. 2-channel signal conditioner, 24 V DC supply (Power Rail), Thermocouple, RTD, potentiometer or voltage input, Usable as signal splitter (1 input and 2 outputs), Current output 0/4 mA ... 20 mA, Sink or source mode, Configurable by PACTware, Line fault (LFD) and sensor burnout detection, Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511, Housing width: 20 mm, Number of channels: 2-channel, Safety Integrity Level (SIL): SIL 2, Rated voltage: 20 ... 30 V DC. Signal type: Analog input. Safety Integrity Level (SIL): SIL 2. Connection: terminals 14+, 15- or power feed module/Power Rail. Rated voltage: 20 ... 30 V DC. Ripple: within the supply tolerance. Power dissipation: ≤ 1.53 W. Power consumption: max. 1.53 W. Programming interface: programming socket. Connection side: field side. Connection: terminals 1, 2, 3; 4, 5, 6. RTD: type Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995)type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94)type Cu10, Cu50, Cu100 (P50353-92)type Ni100 (DIN 43760). Measuring currentapprox. 200 µA with RTDTypes of measuring2-, 3-wire connectionLead resistancemax. 50 Ω per lineMeasurement loop monitoringsensor breakage, sensor short-circuit: . Measuring current: approx. 200 µA with RTD. Types of measuring: 2-, 3-wire connection. Lead resistance: max. 50 Ω per line. Measurement loop monitoring: sensor breakage, sensor short-circuit. Thermocouples: type B, E, J, K, N, R, S, T (IEC 584-1: 1995)type L (DIN 43710: 1985)type TXK, TXKH, TXA (P8.585-2001). Cold junction compensationexternal and internalMeasurement loop monitoringsensor breakage: . Cold junction compensation: external and internal. Measurement loop monitoring: sensor breakage. Potentiometer: 0 ... 20 kΩ (2-wire connection), 0.8 ... 20 kΩ (3-wire connection). Voltage: selectable within the range -100 ... 100 mV. Input resistance: ≥ 1 MΩ (-100 ... 100 mV). Connection side: control side. Connection: output I: terminal 7: source (-), sink (+), terminal 8: source (+), terminal 9: sink(-) output II: terminal 10: source (-), sink (+), terminal 11: source (+), terminal 12: sink(-). Output I, II: Analog current output. Current range0 ... 20 mA or 4 ... 20 mAFault signaldownscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43)Sourceload 0 ... 550 Ω open-circuit voltage ≤ 18 VSinkVoltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V,series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage.The maximum value of the resistance is (V - 5)/0.0215 Ω.: . Current range: 0 ... 20 mA or 4 ... 20 mA. Fault signal: downscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43). Source: load 0 ... 550 Ω open-circuit voltage ≤ 18 V. Sink: Voltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V,series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage.The maximum value of the resistance is (V - 5)/0.0215 Ω.. Deviation: . After calibrationPt100: ± (0.06 % of measurement value in K + 0.1 % of span + 0.1 K (4-wire connection)) thermocouple: ± (0.05 % of measurement value in °C + 0.1 % of span + 1 K (1.2 K for types R and S)) , includes ± 0.8 K fault of the cold junction compensation (CJC) mV: ± (50 µV + 0.1 % of span)potentiometer: ± (0.05 % of full scale + 0.1 % of span, (excludes faults due to lead resistance))Influence of ambient temperaturePt100: ± (0.0015 % of measurement value in K + 0.006 % of span)/K ΔTamb*)thermocouple: ± (0.02 K + 0.005 % of measurement value in °C + 0.006 % of span)/K ΔTamb*)), influence of cold junction compensation (CJC) includedmV: ± (0.01 % of measurement value + 0.006 % of span)/K ΔTamb*)potentiometer: ± 0.006 % of span/K ΔTamb*) *) ΔTamb = ambient temperature change referenced to 23 °C (296 K)Influence of supply voltage< 0.01 % of spanInfluence of load≤ 0.001 % of output value per 100 Ω: . After calibration: Pt100: ± (0.06 % of measurement value in K + 0.1 % of span + 0.1 K (4-wire connection)) thermocouple: ± (0.05 % of measurement value in °C + 0.1 % of span + 1 K (1.2 K for types R and S)) , includes ± 0.8 K fault of the cold junction compensation (CJC) mV: ± (50 µV + 0.1 % of span)potentiometer: ± (0.05 % of full scale + 0.1 % of span, (excludes faults due to lead resistance)). Influence of ambient temperature: Pt100: ± (0.0015 % of measurement value in K + 0.006 % of span)/K ΔTamb*)thermocouple: ± (0.02 K + 0.005 % of measurement value in °C + 0.006 % of span)/K ΔTamb*)), influence of cold junction compensation (CJC) includedmV: ± (0.01 % of measurement value + 0.006 % of span)/K ΔTamb*)potentiometer: ± 0.006 % of span/K ΔTamb*) *) ΔTamb = ambient temperature change referenced to 23 °C (296 K). Influence of supply voltage: < 0.01 % of span. Influence of load: ≤ 0.001 % of output value per 100 Ω. Reaction time: worst case value (sensor breakage and/or sensor short circuit detection enabled)mV: 1.2 s, thermocouples with CJC: 1.4 s, thermocouples with fixed ref. temp: 1.4 s, 3- or 4-wire RTD: 1.1 s, 2-wire RTD: 920 ms, Potentiometer: 3-wire connection 2.8 s, 2-wire connection 2.25 s. Input/Other circuits: basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff. Output/supply, programming input: functional insulation, rated insulation voltage 50 V AC There is no electrical isolation between the programming input and the supply.The programming cable provides galvanic isolation so that ground loops are avoided.. Display elements: LEDs. Configuration: via PACTware. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 130 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Height119 mmWidth20 mmDepth115 mm: . Height: 119 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
