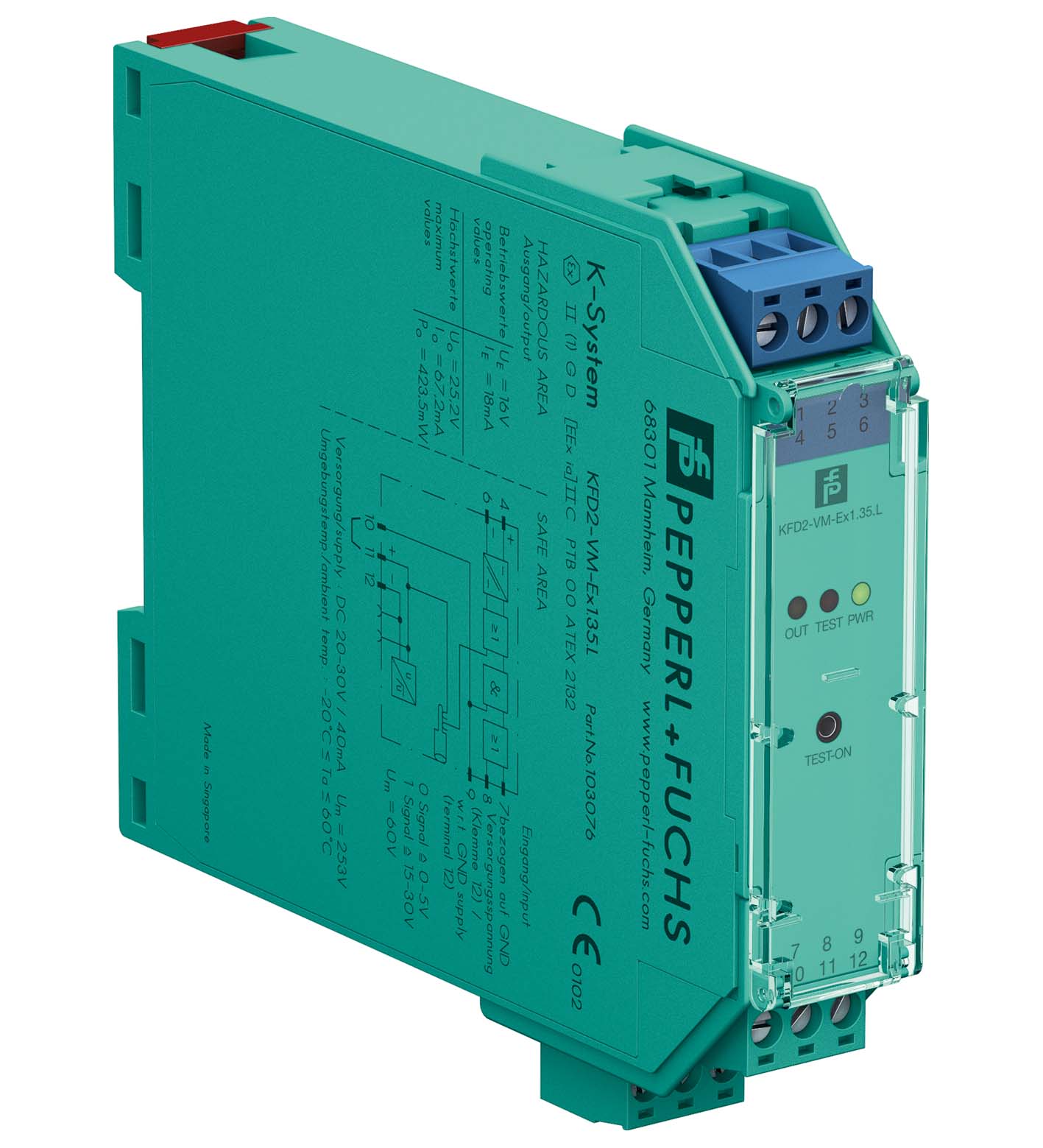

KFD2-VM-Ex1.35.L

Solenoid Driver. 1-channel isolated barrier, 24 V DC supply (Power Rail), Output 15.3 V DC at 17 mA, 3 logic inputs with AND/OR logic, Service port for isolator function test, Housing width: 20 mm, Nu...

Solenoid Driver. 1-channel isolated barrier, 24 V DC supply (Power Rail), Output 15.3 V DC at 17 mA, 3 logic inputs with AND/OR logic, Service port for isolator function test, Housing width: 20 mm, Number of channels: 1-channel, Rated voltage: 20 ... 30 V DC, Type: logic input, Field device: 1 x Valve, Current: typ. 18 mA, Voltage: typ. 16 V. Signal type: Digital Output. Connection: Power Rail or terminals 11+, 12-. Rated voltage: 20 ... 30 V DC. Ripple: ≤ 10 %. Rated current: ≤ 52 mA. Power dissipation: typ. 1.2 W. Power consumption: < 1.5 W. Connection side: control side. Connection: terminals 7+, 8+, 9+. Signal level: 1-signal: 15 ... 30 V DC ; input current: approx. 2.3 mA at 24 V DC 0-signal: 0 ... 5 V DC or open input. Response delay: 5 ... 30 ms (typical 10 ms). Connection side: field side. Internal resistor: max. 410 Ω. Current: typ. 18 mA. Voltage: typ. 16 V. Limit: current IE: ≥ 17 mA; typ. 18 mA voltage UE: ≥ 15.3 V; typ. 16 V. Open loop voltage: min. 22.3 V. Connection: terminals 4+, 6-. Output current: 17 mA. Output signal: These values are valid for the rated operating voltages from 20 ... 30 V DC.. Switching frequency: 15 Hz. Input/power supply: not available. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2012. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 120 g. Dimensions: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: PTB 00 ATEX 2132. Marking II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]OutputEx iaVoltageUo25.2 V DCCurrentIo67.2 mAPowerPo423.5 mW (linear characteristic): . Marking: II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]. Output: Ex ia. Voltage: 25.2 V DC. Current: 67.2 mA. Power: 423.5 mW (linear characteristic). Supply: . Maximum safe voltageUm253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.): Um. Maximum safe voltage: 253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.). Input: . Maximum safe voltageUm60 V (Attention! Um is no rated voltage.): Um. Maximum safe voltage: 60 V (Attention! Um is no rated voltage.). Galvanic isolation: . Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Output: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Output/power supply: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
