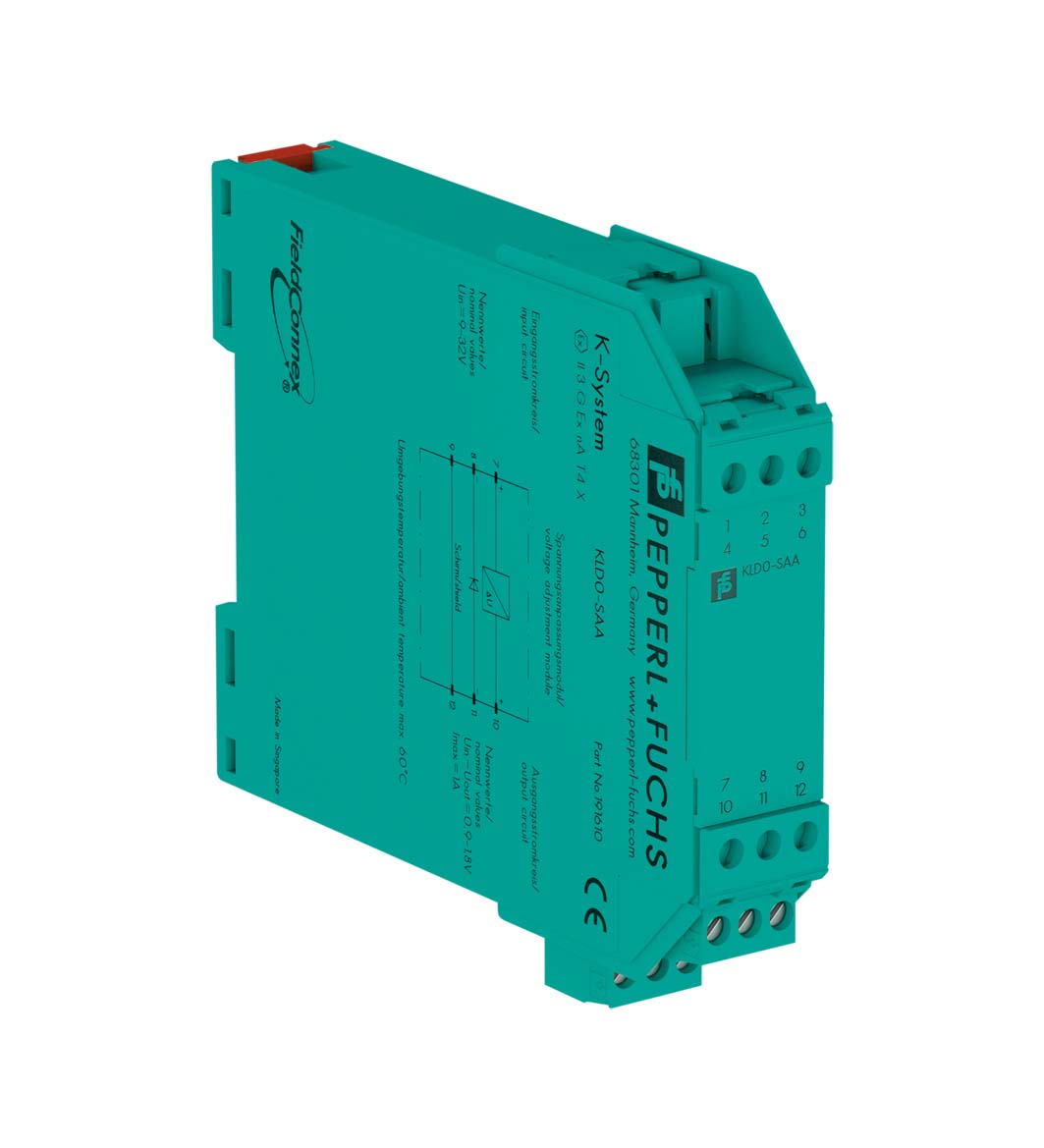

KLD0-SAA

Voltage Adjustment Module. Module for use with Segment Protectors, Series voltage reducing module, Removable terminals, Polarity reversal protected, Installation in cabinet on DIN mounting rail, For F...

Voltage Adjustment Module. Module for use with Segment Protectors, Series voltage reducing module, Removable terminals, Polarity reversal protected, Installation in cabinet on DIN mounting rail, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Europe, Device coupler location: non-explosion hazardous area<BR>Zone 2 - high-power trunk<BR>Division 2 - high-power trunk, Device coupler location [2]: Zone 2 - high-power trunk, Device coupler location [3]: Division 2 - high-power trunk. Design / Mounting: Cabinet installation. Installation in hazardous area: Zone 2 / Div. 2. Field-side: . Connectionterminals 10+, 11-, 12SRated voltageUin - Uout 0.9 ... 1.8 VRated currentmax. 1 A: . Connection: terminals 10+, 11-, 12S. Rated voltage: Uin - Uout 0.9 ... 1.8 V. Rated current: max. 1 A. Host-side: . Connectionterminals 7+, 8-, 9SRated voltage9 ... 32 V DCRated currentmax. 1 APower dissipationmax. 1.8 W: . Connection: terminals 7+, 8-, 9S. Rated voltage: 9 ... 32 V DC. Rated current: max. 1 A. Power dissipation: max. 1.8 W. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 75 %. Pollution degree: max. 2, according to IEC 60664. Connection type: Terminals. Core cross section: up to 2.5 mm2. Housing: 20 mm x 115 mm x 107 mm. Degree of protection: IP20. Mass: approx. 100 g. Mounting: DIN rail mounting. Certificate: PF 16 CERT 1030 X. Marking II 3 G Ex ec IIC T4 Gc: . Marking: II 3 G Ex ec IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-7:2015. Supplementary information: Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
