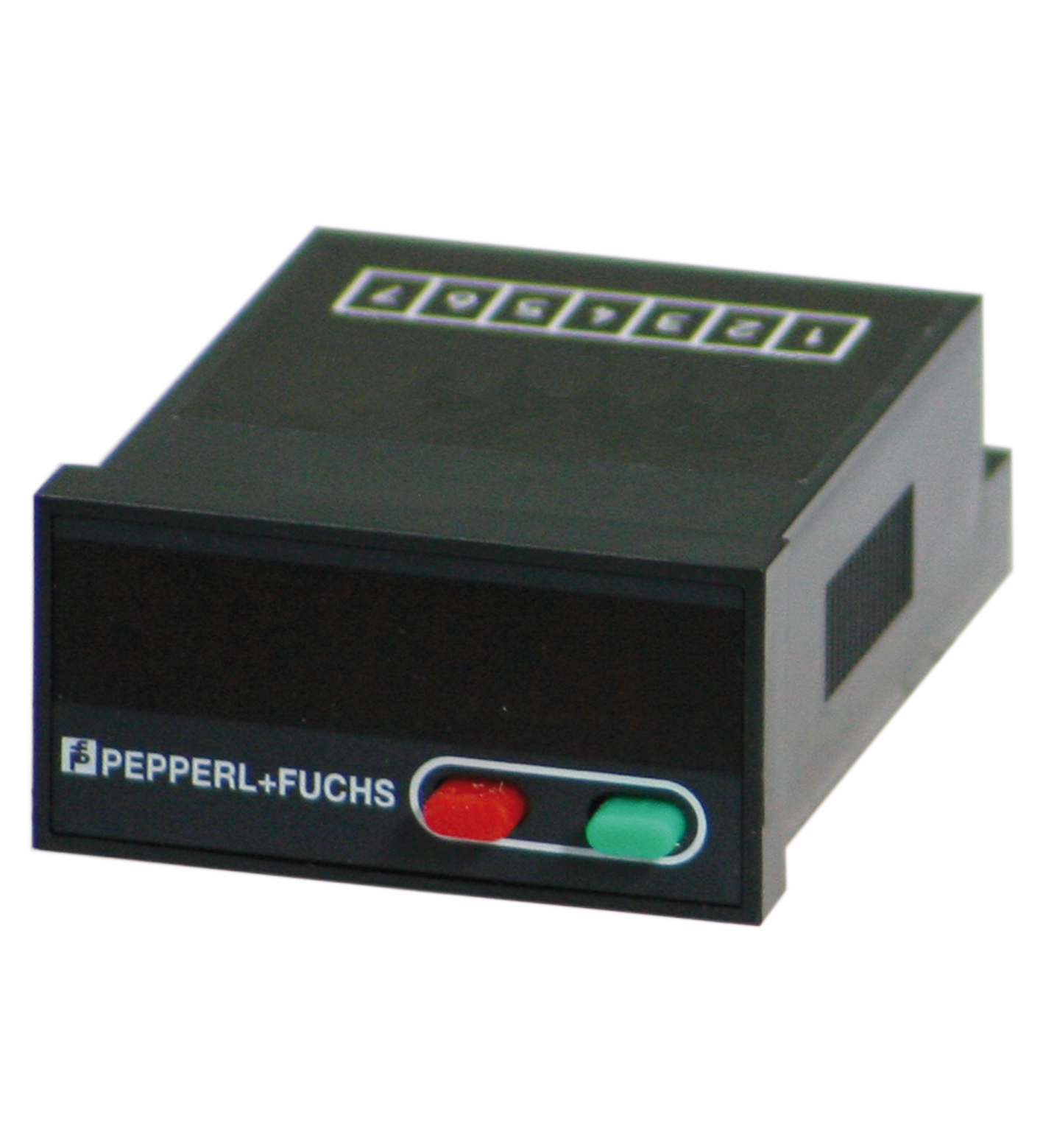

KT-LED-24-PT100-24VDC

LED temperature display. Temperature display in °C or °F, Resolution up to 0.1 °C, Extremely bright, large LED indicator, RTD types Pt100, Ni100 in 2-, 3-, or 4-wire mode, Galvanic isolation, Operatin...

LED temperature display. Temperature display in °C or °F, Resolution up to 0.1 °C, Extremely bright, large LED indicator, RTD types Pt100, Ni100 in 2-, 3-, or 4-wire mode, Galvanic isolation, Operating voltage: 10 ... 30 V DC galvanically isolated, Dimensions: 48 mm x 24 mm x 68.3 mm. Data storage: EEPROM. Programming: keypad-driven menu. Type: 5-digit 7-segment LED display, red. Display value: digit height 8 mm. Display interval: -1999.9 ... 9999.9. Decimal point: 0 to max 1 fractional digit. Temperature range: Pt100 acc. DIN IEC 751: -199.9 ... 850 °C (-327.8 ... 1562 °F) Ni100 acc. DIN 43760: -60 ... 250 °C (-76 ... 482 °F). Resolution: 0.1 °C (0.1 °F) bzw. 1 °C (1 °F). Refresh cycle of the measured value output: 1 - 2 s-1. Reset: manually or external. Operating voltage: 10 ... 30 V DC galvanically isolated. Operating current: max. 40 mA. Suitable sensors: Pt100/Ni100 resistance thermometer, with sensor breakage monitoring. Signal voltage: Display latch, display hold for current measured value. High4 ... 30 V DCLow0 ... 2 V DC: . High: 4 ... 30 V DC. Low: 0 ... 2 V DC. Pt 100 range (-200 ... 850 °C): 0 ... 20 Ω 2-wire: programmable3-/4-wire: no adjustment necessary. Ni 100-range (-60 ... 250 °C): 0 ... 20 Ω 2-wire: programmable3-/4-wire: no adjustment necessary. Current: 1 mA. Counting frequency: 5 measurements per second. Linearity error: Pt100 < 0.1% at 20°C ambient temperatureNi100 < 0.2% at 20°C ambient temperature. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2005: . EMC Directive 2004/108/EC: EN 61000-6-2:2005. Standard conformity: . Emitted interferenceDIN EN 55011:2009, Class B: . Emitted interference: DIN EN 55011:2009, Class B. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: ≤ 85 % (noncondensing). Temperature drift: 0.1 K/Kenvironment. Degree of protection: IP65 (front). Mass: approx. 45 g. Dimensions: 48 mm x 24 mm x 68.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
