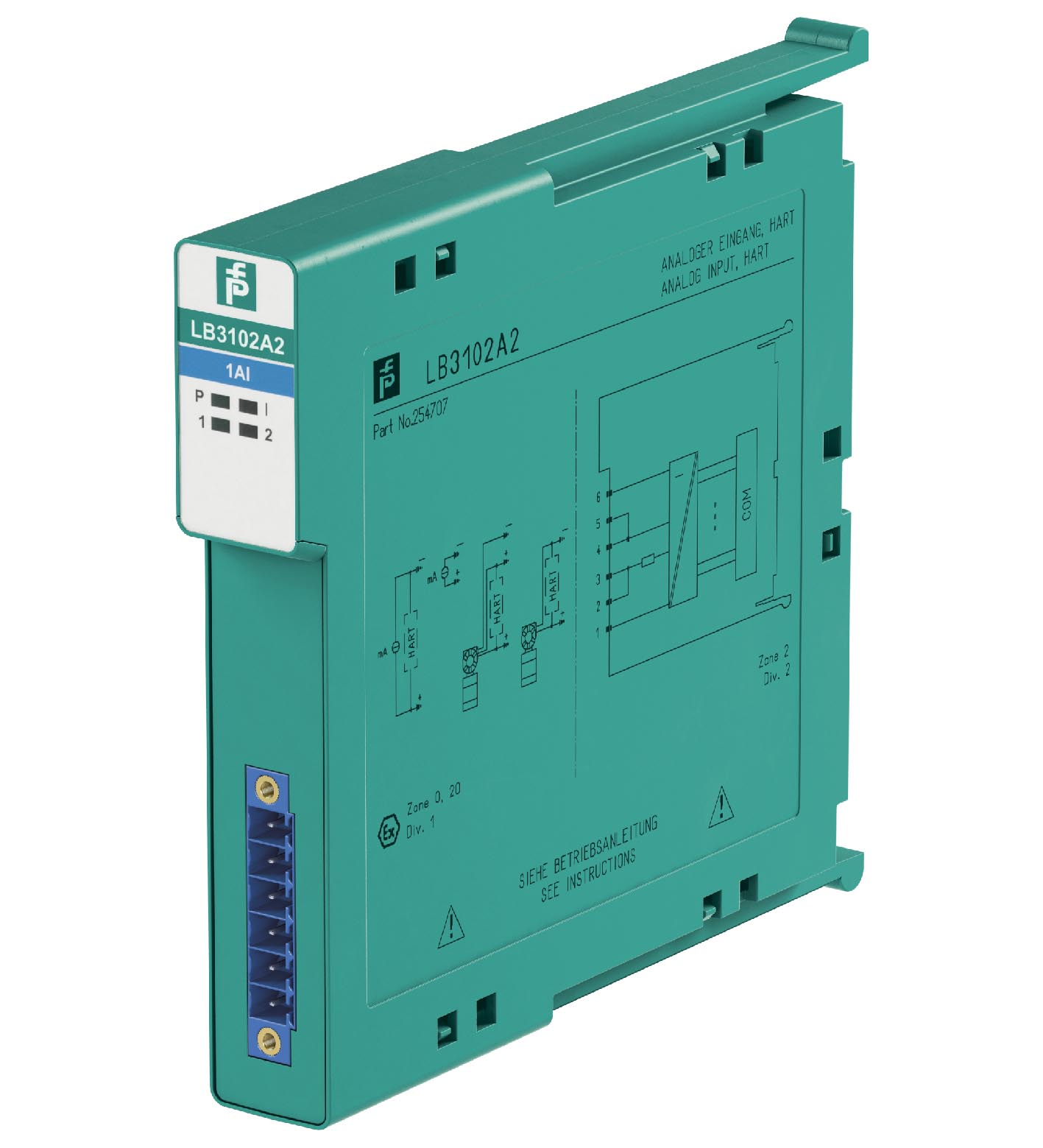

LB3102A2
HART Transmitter Power Supply, Input Isolator. 1-channel, Input Ex ia, Mounting in Zone 2, Class I/Div.2 or in the safe area, Power supply for 2- or 3-wire transmitters with 4 mA ... 20 mA, Explosion...
HART Transmitter Power Supply, Input Isolator. 1-channel, Input Ex ia, Mounting in Zone 2, Class I/Div.2 or in the safe area, Power supply for 2- or 3-wire transmitters with 4 mA ... 20 mA, Explosion protection: Ex ia, Field device: pressure converter, Field device [2]: flow converter, Field device [3]: level converter, Field device [4]: Temperature Converter, Connection: 2-wire transmitter, Connection [2]: 3-wire transmitter, Connection [3]: 4-wire transmitter, HART communication. Occupied slots: 1. Connection: backplane bus. Rated voltage: 12 V DC , only in connection with the power supplies LB9***. Power dissipation: 0.75 W. Power consumption: 1.1 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 1. Suitable field devices: . Field devicepressure converterField device [2]flow converterField device [3]level converterField device [4]Temperature Converter: . Field device: pressure converter. Field device [2]: flow converter. Field device [3]: level converter. Field device [4]: Temperature Converter. Field device interface: . Connection2-wire transmitterConnection [2]3-wire transmitterConnection [3]4-wire transmitter: . Connection: 2-wire transmitter. Connection [2]: 3-wire transmitter. Connection [3]: 4-wire transmitter. Connection: 2-wire transmitter (HART):supply circuit: 2/3+, 4/5-3-wire transmitter (HART):supply circuit: 2/3+, 6-measuring circuit: 4/5+, 6-4-wire transmitter (separately powered):measuring circuit: 4/5+, 6-HART measuring circuit: 1+, 6-. Transmitter supply voltage: min. 15 V at 20 mA ; 21.5 V at 4 mA. Input resistance: 15 Ω (terminals 5, 6) 236 Ω (terminals 1, 6) HART. Line fault detection: can be switched on/off for each channel via configuration tool , configurable via configuration tool. Short-circuitfactory setting: > 22 mA configurable between 0 ... 26 mAOpen-circuitfactory setting: < 1 mA configurable between 0 ... 26 mA: . Short-circuit: factory setting: > 22 mA configurable between 0 ... 26 mA. Open-circuit: factory setting: < 1 mA configurable between 0 ... 26 mA. HART communication: yes. HART secondary variable: yes. Deviation: . After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range: . After calibration: 0.1 % of the signal range at 20 °C (68 °F). Influence of ambient temperature: 0.1 %/10 K of the signal range. Resolution: 12 Bit (0 ... 26 mA). Refresh time: 100 ms. LED indication: Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1) red: line fault (lead breakage or short circuit) Status LED (2) yellow: Live Zero monitoring. Coding: optional mechanical coding via front socket. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21:2007. Degree of protection: IEC 60529:2000. Environmental test: EN 60068-2-14:2009. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Damaging gas: EN 60068-2-42:2003. Relative humidity: EN 60068-2-78:2001. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 when mounted on backplane. Connection: removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2). Mass: approx. 90 g. Dimensions: . Height100 mmWidth16 mmDepth102 mm: . Height: 100 mm. Width: 16 mm. Depth: 102 mm. EU-type examination certificate: BVS 12 ATEX E 100 X. Marking II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC: . Marking: II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC. Supply: . VoltageUo27 VCurrentIo92 mAPowerPo619 mW (linear characteristic): Uo. Voltage: 27 V. Current: 92 mA. Power: 619 mW (linear characteristic). Connection 1 to 6: . Voltage8.9 VCurrent4 mAPower24 mW (trapezoid characteristic curve): . Voltage: 8.9 V. Current: 4 mA. Power: 24 mW (trapezoid characteristic curve). Input: . VoltageUo0.7 VCurrentIo7 mAVoltageUi30 V DCCurrentIi100 mAPowerPi100 mW Pi < 100 mW is fulfilled by Ii < 100 mA, so a comparison of Po < Pi is not necessary.Internal capacitanceCi242 nFInternal inductanceLi0 mH: Uo. Voltage: 0.7 V. Current: 7 mA. Voltage: 30 V DC. Current: 100 mA. Power: 100 mW Pi < 100 mW is fulfilled by Ii < 100 mA, so a comparison of Po < Pi is not necessary.. Internal capacitance: 242 nF. Internal inductance: 0 mH. Galvanic isolation: . Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V: . Input/power supply, internal bus: safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010. ATEX approval: BVS 12 ATEX E 100X. UL approval: E106378. IECEx approval: BVS 13.0043X. Approved forEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I: . Approved for: Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I. System information: The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
