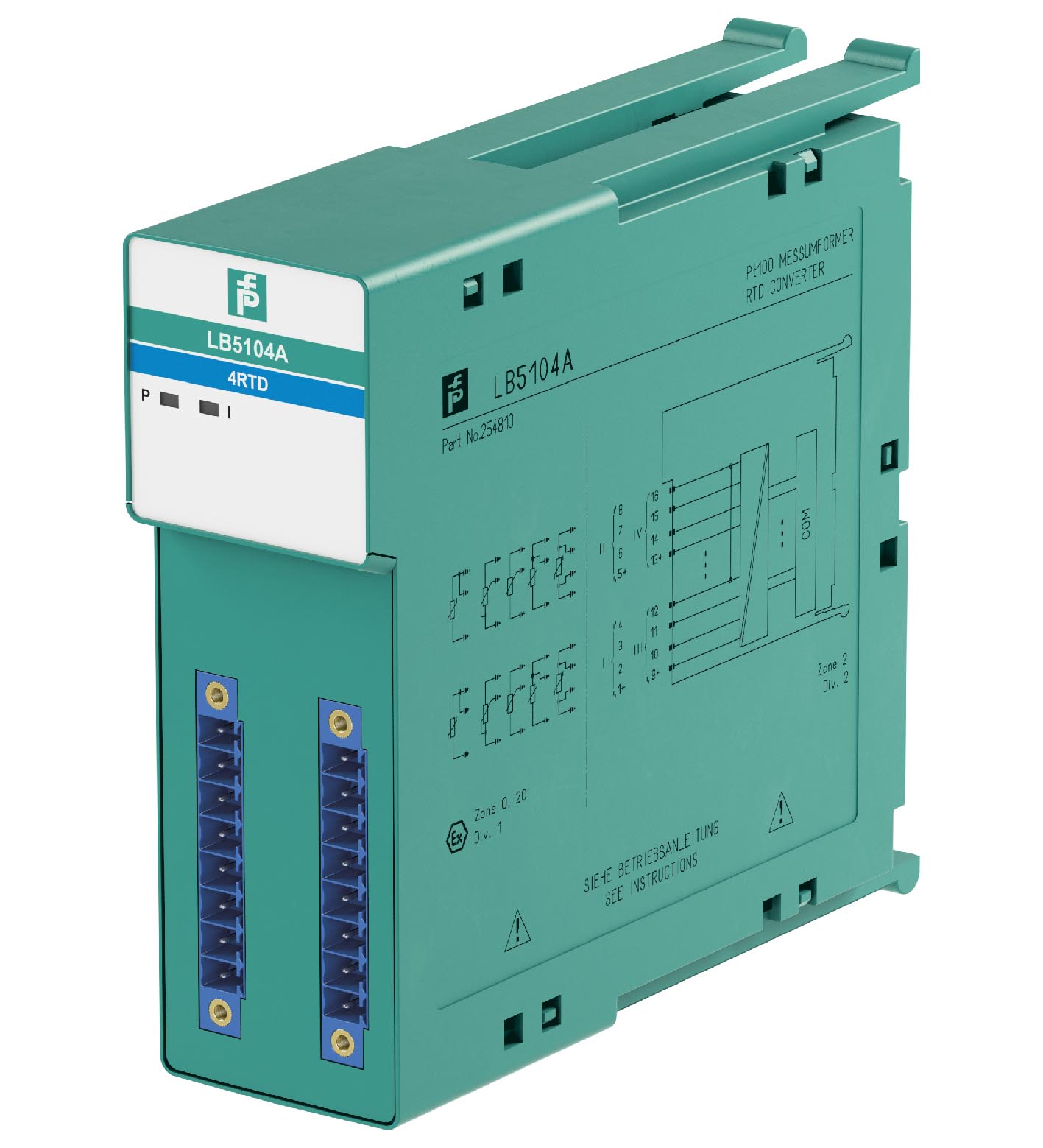

LB5104A
RTD Converter. 4 channels, Inputs Ex ia, Mounting in Zone 2, Class I/Div.2 or in the safe area, Converter for 2-, 3- and 4-wire RTDs (Pt100 ... Pt1000), slide wire sensors etc., Explosion protection:...
RTD Converter. 4 channels, Inputs Ex ia, Mounting in Zone 2, Class I/Div.2 or in the safe area, Converter for 2-, 3- and 4-wire RTDs (Pt100 ... Pt1000), slide wire sensors etc., Explosion protection: Ex ia, Field device: resistance thermometer, Field device [2]: slide-wire sensors, Field device [3]: potentiometer, Connection: 2-wire sensor, Connection [2]: 3-wire sensor, Connection [3]: 4-wire sensor. Occupied slots: 2. Connection: backplane bus. Rated voltage: 12 V DC , only in connection with the power supplies LB9***. Power dissipation: 0.35 W. Power consumption: 0.35 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 4. Suitable field devices: . Field deviceresistance thermometerField device [2]slide-wire sensorsField device [3]potentiometer: . Field device: resistance thermometer. Field device [2]: slide-wire sensors. Field device [3]: potentiometer. Field device interface: . Connection2-wire sensorConnection [2]3-wire sensorConnection [3]4-wire sensor: . Connection: 2-wire sensor. Connection [2]: 3-wire sensor. Connection [3]: 4-wire sensor. Connection: channel I: resistance/potentiometer input 1 ... 4channel II: resistance/potentiometer input 5 ... 8channel III: resistance/potentiometer input 9 ... 12channel IV: resistance/potentiometer input 13 ... 16. Measuring range: Pt100 (18-390 Ω) (500 Ω incl. line resistance)Pt200 (37-780 Ω)Pt500 (92-1952 Ω)Pt1000 (185-3905 Ω)Ni100 (69-270 Ω)Ni500 (345-1350 Ω)Ni1000 (690-2700 Ω). Slide-wire sensor: 0 ... 10 kΩ. Measuring current: 200 µA. Smallest span: 50 Ω for 0.1 % accuracy. Linearity error: 0.1 %. Conversion time: max. 500 ms (4 channels) max. 1 s (for 4x 3-wire Pt100). Busy after download: 5 ... 15 s. Lead resistance: max. 50 Ω per strand. Line fault detection: can be switched on/off for each channel via configuration tool. Short-circuit< 10 ΩOpen-circuit> 1 kΩ: . Short-circuit: < 10 Ω. Open-circuit: > 1 kΩ. Deviation: . Influence of ambient temperaturemax. 0,1 %/10 K: . Influence of ambient temperature: max. 0,1 %/10 K. LED indication: Power LED (P) green: supply Status LED (I) red: line fault (collective alarm) , red flashing: communication error. Coding: optional mechanical coding via front socket. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Damaging gas: EN 60068-2-42. Relative humidity: EN 60068-2-78. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 when mounted on backplane. Connection: removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2). Mass: approx. 150 g. Dimensions: . Height100 mmWidth32.5 mmDepth102 mm: . Height: 100 mm. Width: 32.5 mm. Depth: 102 mm. EU-type examination certificate: PTB 03 ATEX 2042 X. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Input: . VoltageUo7.14 VCurrentIo70 mAPowerPo123 mW (linear characteristic): Uo. Voltage: 7.14 V. Current: 70 mA. Power: 123 mW (linear characteristic). Certificate: PF 08 CERT 1234 X. Marking II 3 G Ex nA IIC T4 Gc: . Marking: II 3 G Ex nA IIC T4 Gc. Galvanic isolation: . Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V: . Input/power supply, internal bus: safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010. ATEX approval: PTB 03 ATEX 2042 X. UL approval: E106378. IECEx approval: . IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I: . IECEx certificate: IECEx BVS 09.0037X. IECEx marking: Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I. System information: The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
