LB6006A2

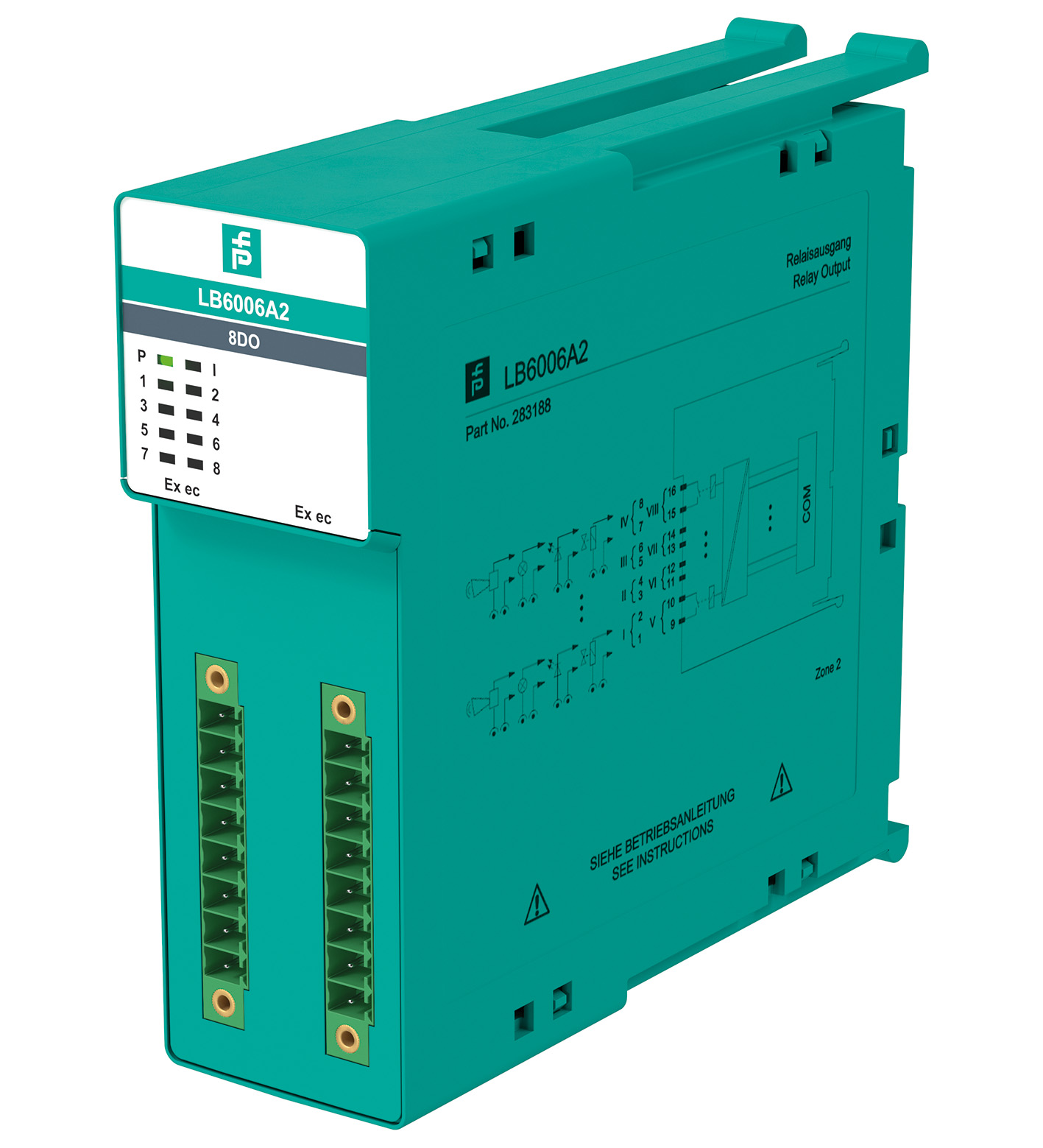

Relay output. 8-channel, Installation in Zone 2 or safe area, Positive or negative logic selectable, Simulation mode for service operations (forcing), Explosion protection: Ex nA nC. Occupied slots: 2...

Relay output. 8-channel, Installation in Zone 2 or safe area, Positive or negative logic selectable, Simulation mode for service operations (forcing), Explosion protection: Ex nA nC. Occupied slots: 2. Connection: backplane bus. Rated voltage: 12 V DC +4/-2 % , only in connection with the power supply LB9006C. Power dissipation: 2.4 W. Power consumption: 1.4 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 8. Field device interface: . ConnectionRelay output: . Connection: Relay output. Connection: channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO. Relay: . Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated: . Switching voltage: 30 V DC. Switching current: 1 A DC. Switch power: 30 W. Minimum load: 5 V 10 mA. Electrical life: 0.1 million switching cycles at maximum load and temperature. Contact Material: AgPd gold plated. Response time: 20 ms (depending on bus cycle time). Watchdog: within 0.5 s the device goes in safe state, e.g. after loss of communication. LED indication: Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown Status LED (1-8) line fault (lead breakage or short circuit) , yellow: Channel status. Coding: optional mechanical coding via front socket. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Low voltage: . Directive 2014/35/EUEN 61010-1 , EN 60664-1: . Directive 2014/35/EU: EN 61010-1 , EN 60664-1. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Relative humidity: EN 60068-2-78. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles. Degree of protection: IP20 when mounted on backplane. Connection: removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2). Mass: approx. 160 g. Dimensions: . Height100 mmWidth32.5 mmDepth102 mm: . Height: 100 mm. Width: 32.5 mm. Depth: 102 mm. EU-type examination certificate: FIDI 23 ATEX 0078 X. Marking II 3G Ex ec nC IIC T4 Gc: . Marking: II 3G Ex ec nC IIC T4 Gc. Galvanic isolation: . Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC: . Output/power supply, internal bus: basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15: . Directive 2014/34/EU: EN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15. ATEX approval: FIDI 23 ATEX 0078 X. IECEx approval: . IECEx certificateIECEx FIDI 23.0010XIECEx markingEx ec nC IIC T4 Gc: . IECEx certificate: IECEx FIDI 23.0010X. IECEx marking: Ex ec nC IIC T4 Gc. System information: The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
