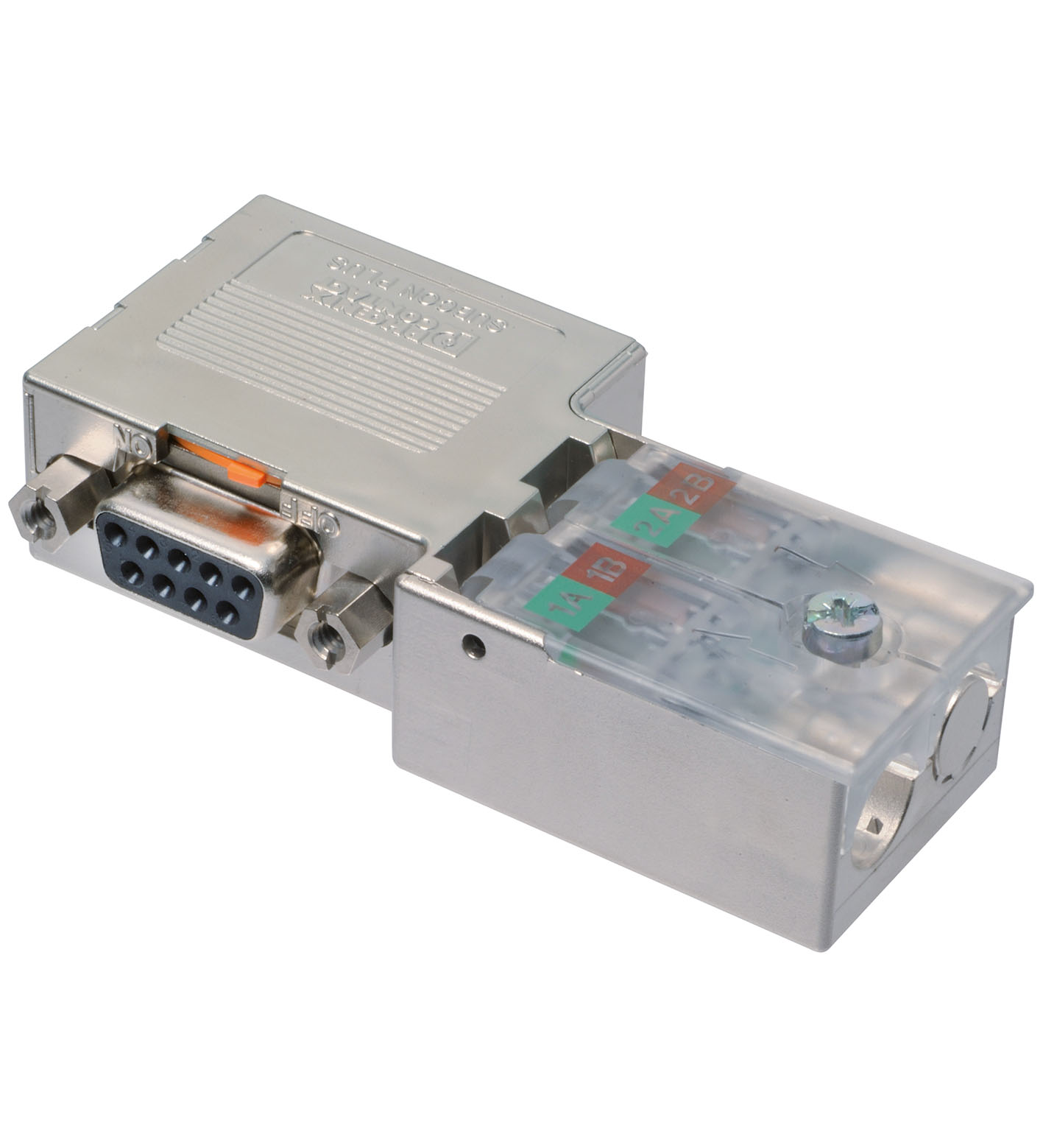

LB9003A

D-Sub plug 9-pin. For PROFIBUS DP, MODBUS, RS 485, Cable feed below 90°, With switchable bus termination resistor, With connector for bus monitor or class 2 master. Rated voltage: 60 V AC/DC. Rated cu...

D-Sub plug 9-pin. For PROFIBUS DP, MODBUS, RS 485, Cable feed below 90°, With switchable bus termination resistor, With connector for bus monitor or class 2 master. Rated voltage: 60 V AC/DC. Rated current: 1 A. Interface type: PROFIBUS DP. Transfer rate: max. 12 MBit/s. Connector pinout: 3, 5, 6, 8. Ambient temperature: -20 ... 75 °C (-4 ... 167 °F). Storage temperature: -25 ... 80 °C (-13 ... 176 °F). Core cross section: max. 1.5 mm2. Cable diameter: 7.6 ... 8.4 mm. Cable gland: screw terminals. Material: . Housingmetallized ABS: . Housing: metallized ABS. Mass: approx. 40 g. Dimensions: (W x H x D) 68.2 mm x 40.5 mm x 17 mm. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021American Bureau of ShippingT1450280/UN: . Lloyd Register: 15/20021. American Bureau of Shipping: T1450280/UN

Brand	Pepperl Fuchs
Lifecycle status	active
