LB9029BP12320.1

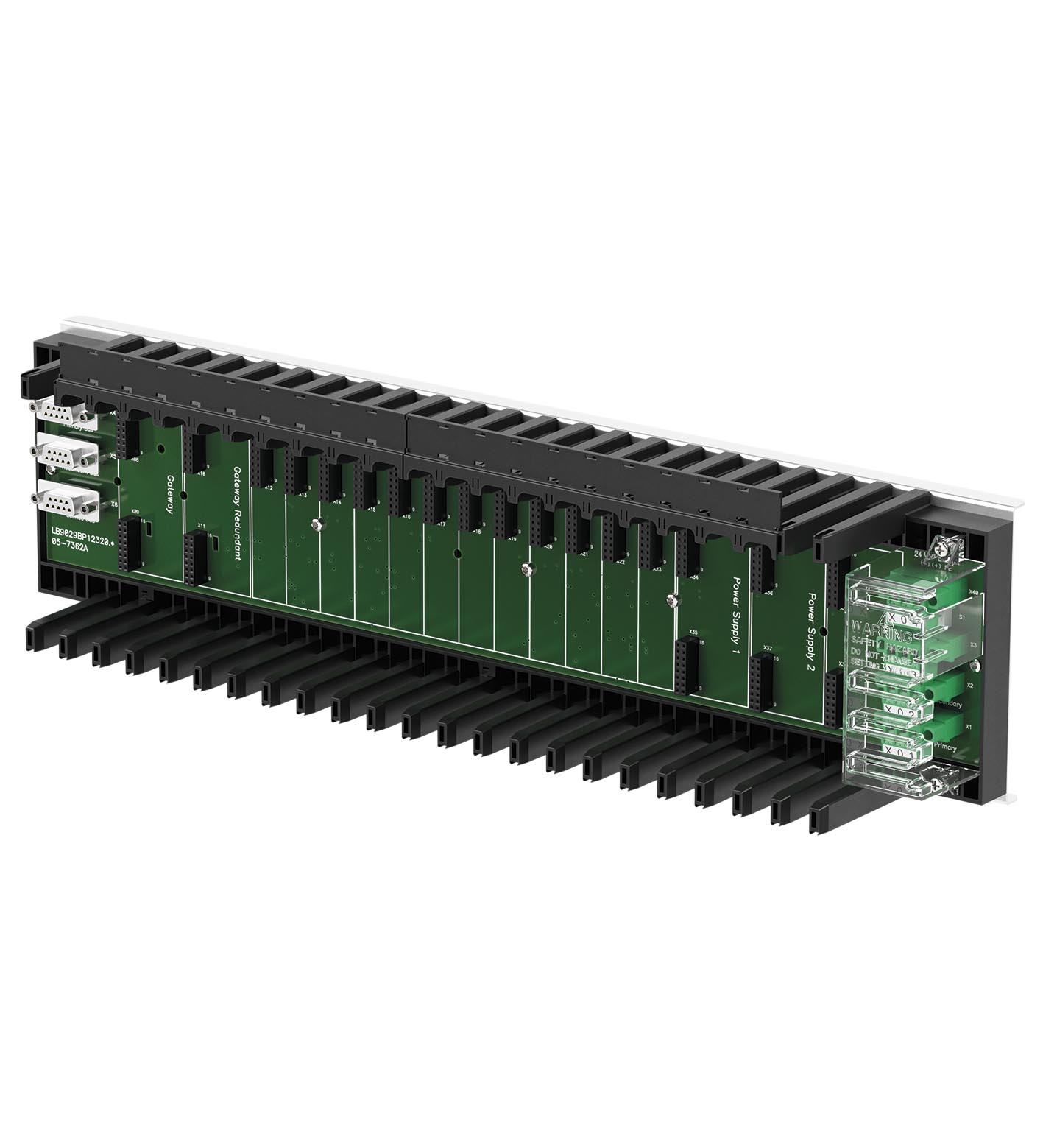

Redundancy Base Backplane. Backplane for LB-System, For PROFIBUS DP, PROFIBUS DP V1, PROFINET, and MODBUS RTU, Max. 12 slots for I/O modules, Redundancy (field bus and power supply), Number of modules...

Redundancy Base Backplane. Backplane for LB-System, For PROFIBUS DP, PROFIBUS DP V1, PROFINET, and MODBUS RTU, Max. 12 slots for I/O modules, Redundancy (field bus and power supply), Number of modules: 12, Redundancy, Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler, Redundancy. Suitable components: Bus Coupler LB8106* , LB8107* , LB8108* , LB8109* , LB8122*. Bus coupler: 2. Supply: 3. I/O modules (single width): max. 12. I/O modules (dual width): max. 6. Maximum safe voltage Um: 60 V DC (SELV/PELV). Input voltage range: 18 ... 32 V DC (SELV/PELV). Redundancy: yes. Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler. Redundancy: yes. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21. Degree of protection: EN 60529. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20. Mass: approx. 1380 g. Dimensions: (W x H x D) 440 x 127 x 80 mm (17.3 x 5 x 3.15 inch) , without modules. Height127 mmWidth440 mmDepth80 mm: . Height: 127 mm. Width: 440 mm. Depth: 80 mm. Certificate: BVS 16 ATEX E 089 X. Marking II 3 G Ex nA IIC T4 Gc: . Marking: II 3 G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-15:2010. UL approval: E106378. Control drawing116-0321: . Control drawing: 116-0321. IECEx approval: IECEx BVS 16.0047X. Approved forEx nA IIC T4 Gc: . Approved for: Ex nA IIC T4 Gc. Supplementary information: Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
