LB9547-S70-0-0-1-0-M

Redundancy Field Unit. Standard enclosure for LB-System, Max. 46 slots for I/O modules, Installation in Zone 2 or safe area, For MODBUS TCP/IP, Number of modules: 46, Material: Stainless steel, Redund...

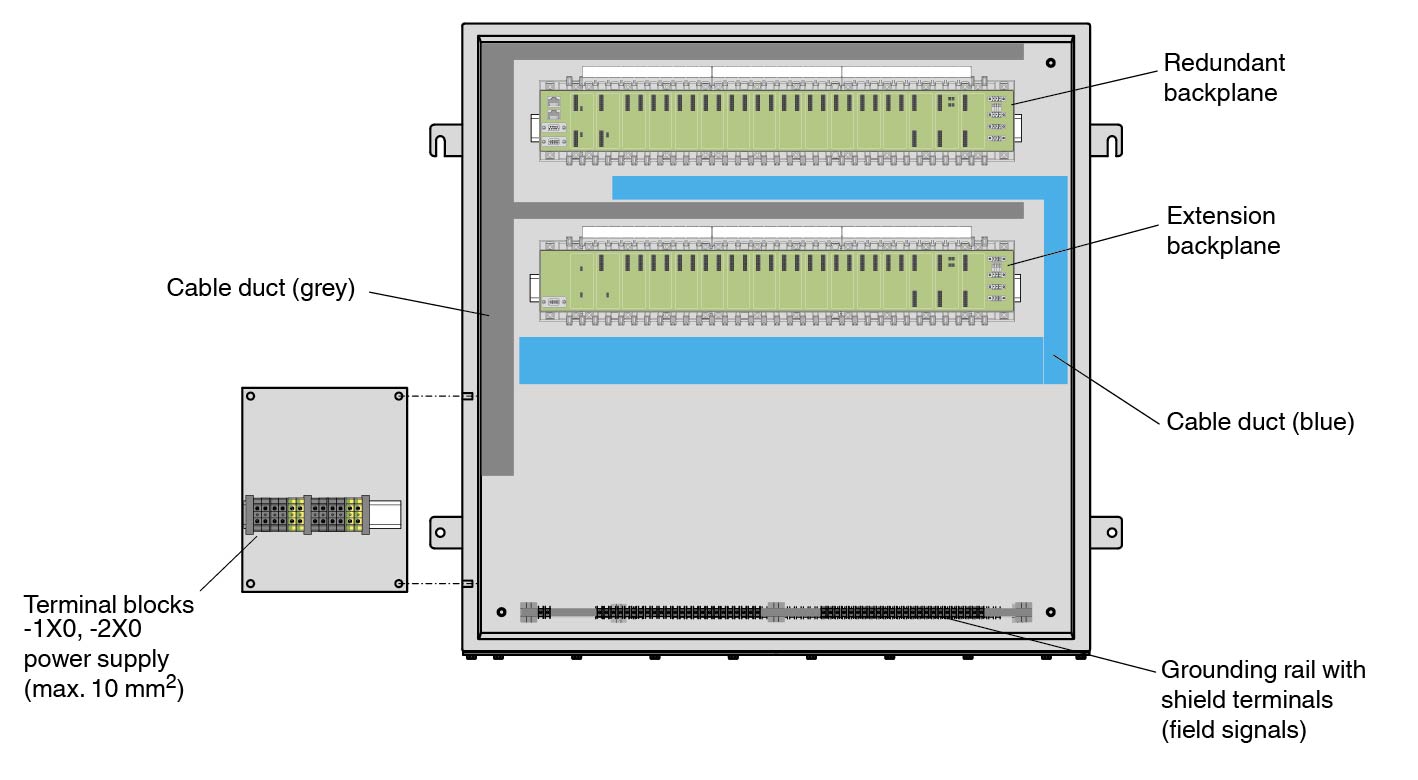

Redundancy Field Unit. Standard enclosure for LB-System, Max. 46 slots for I/O modules, Installation in Zone 2 or safe area, For MODBUS TCP/IP, Number of modules: 46, Material: Stainless steel, Redundancy, Fieldbus type: MODBUS TCP, Redundancy. Installed components: backplane LB9022E , backplane LB9024A. Bus coupler: 2. Supply: 6. I/O modules (single width): max. 46. I/O modules (dual width): max. 23. Connection: screw terminals, max. 10 mm2. Rated voltage: 24 V DC. Maximum safe voltage Um: 60 V. Redundancy: yes. Fieldbus type: MODBUS TCP. Connection: RJ-45 connector (not included with delivery). Redundancy: yes. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Impact resistance: 7J. Enclosure cover: hinged door with cam lock and double-bit insert. Degree of protection: IP66, NEMA 4X. Cable entry: power supply (Ex e): 2 x M25 and 2 x stopping plugs bus (Ex e): 6 x M20 field signals (Ex i): 184 x M16 and 8 x stopping plugs. Material: . HousingStainless steel 1.4404 / AISI 316LSurfaceelectropolishedCable glandPolyamide (PA)SealNeoprene, fire-resistant, one pieceMaterial thicknessenclosure body: 1.2 mmenclosure cover: 1.5 mmmounting plate, gland plate: 3 mm: . Housing: Stainless steel 1.4404 / AISI 316L. Surface: electropolished. Cable gland: Polyamide (PA). Seal: Neoprene, fire-resistant, one piece. Material thickness: enclosure body: 1.2 mmenclosure cover: 1.5 mmmounting plate, gland plate: 3 mm. Mass: approx. 35 kg , without modules. Dimensions: (W x H x D) 800 x 800 x 300 mm (31.5 x 31.5 x 11.8 inch). Height800 mmWidth800 mmDepth300 mm: . Height: 800 mm. Width: 800 mm. Depth: 300 mm. Mounting: thru-holes Ø11 mm. Grounding: grounding bolt M10 , brass. Certificate: PF 16 CERT 1267 X. Marking II 3(1/2)G Ex e nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tc [ia Da/ib Db/ic] IIIC T135 °C Dc: . Marking: II 3(1/2)G Ex e nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tc [ia Da/ib Db/ic] IIIC T135 °C Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014. Marine approval: . Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UN: . Lloyd Register: 15/20021. DNV GL Marine: TAA0000034. American Bureau of Shipping: T1450280/UN. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
