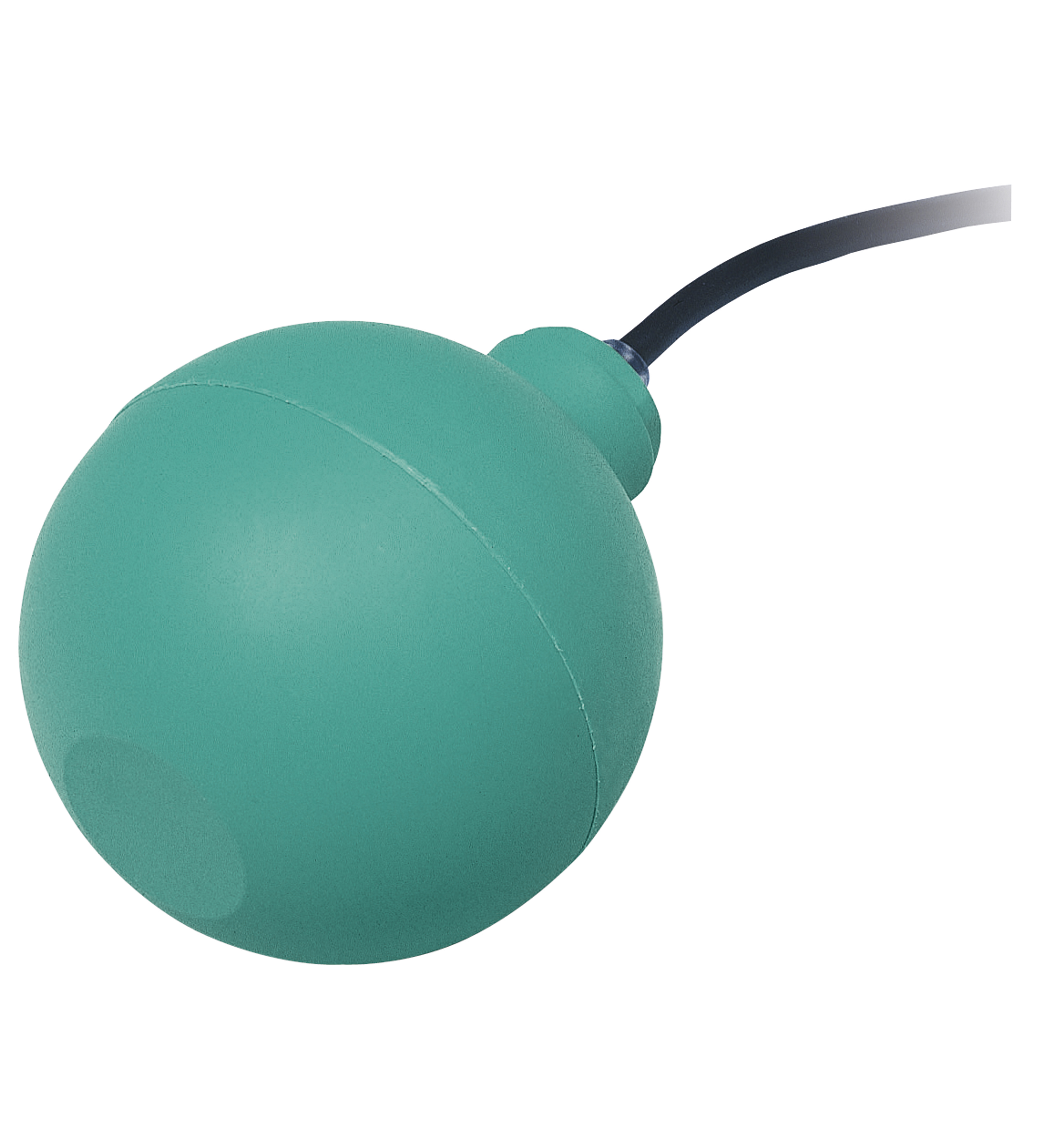

LFL2-BK-U-TPK5-EMS
Float Switch. Switch element: microswitch, <b>mercury-free</b>, Limit value detection for fluids, Ball design: high buoyancy. Series: LFL2-**-U. Construction type: ball design. Contact loading: 250 V...
Float Switch. Switch element: microswitch, <b>mercury-free</b>, Limit value detection for fluids, Ball design: high buoyancy. Series: LFL2-**-U. Construction type: ball design. Contact loading: 250 V AC/3 A; 150 V DC/0.25 A resistive load; 60 V DC/1 A resistive load. Rated insulation voltage: 300 V. Pulse withstand voltage: 4 kV. Electrical life: ≥ 5 x 104 switching cycles. Low voltage: . Directive 2014/35/EUEN 60947-5-1:2017: . Directive 2014/35/EU: EN 60947-5-1:2017. Degree of protection: IEC 60529:2001. Description: microswitch with switching ball, change-over contact. Equipment architecture: This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.. CCC approval: Certified by China Compulsory Certification (CCC). Installation conditions: . Installation instructionsrange of application and minimum length between mounting and float:≥ 100 mm (4 inch), preferred for many acids and lyes mounting:The float switch is mounted by means of a counter weight or rods (e. g. float switch combination) from the top.The pivot of the cable should always be horizontal.: . Installation instructions: range of application and minimum length between mounting and float:≥ 100 mm (4 inch), preferred for many acids and lyes mounting:The float switch is mounted by means of a counter weight or rods (e. g. float switch combination) from the top.The pivot of the cable should always be horizontal.. Process conditions: . Process pressure (static pressure)≤ 2 bar (29 psi) at 20 °C (68 °F)Density≥ 0.6 g/cm3: . Process pressure (static pressure): ≤ 2 bar (29 psi) at 20 °C (68 °F). Density: ≥ 0.6 g/cm3. Ambient temperature: 5 ... 70 °C (41 ... 158 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Altitude: ≤ 2000 m above MSL. Degree of protection: IP68. Cable: . LengthL5 m: L. Length: 5 m. Material: float: PP (Polypropylene) cable: TPK (3 x 0.75 mm2). Switching point: switch angle, measured against the horizontal:- upper switch point 25° ±10°- lower switch point 6° ±6°. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
