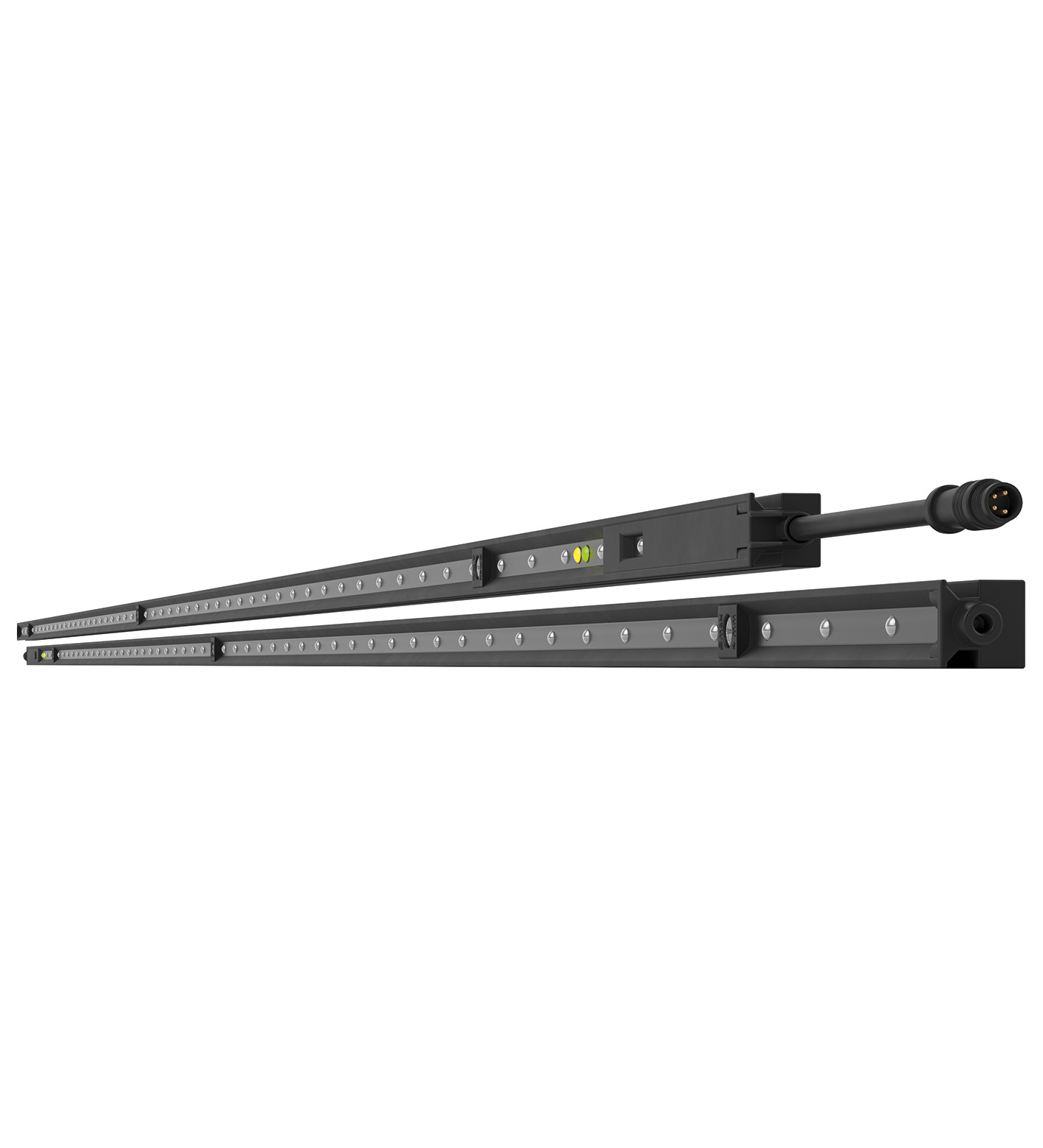

LG01B-1890-20C-5-R1-C3-F27-S15

Safety light grid. Cost-optimized series for standard tasks, High degree of protection (IP67), Direct assembly, Relay output, Operating voltage: 10 ... 30 V DC, Test input: high active or low active,...

Safety light grid. Cost-optimized series for standard tasks, High degree of protection (IP67), Direct assembly, Relay output, Operating voltage: 10 ... 30 V DC, Test input: high active or low active, Connection: fixed cable with M8 plug, 6-pin, Housing: black anodized aluminum Epoxy resin molded. Effective detection range: 1.6 ... 10 m. Threshold detection range: 14 m. Number of protective field beams: 20. Light source: IRED. Light type: infrared. Marking: CE. Target size: 50 ... 200 mm. Protection field height: 1890 mm. Opening angle: eff. 5 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Emitter: LED green Receiver: LED green. Function indicator: Emitter: yellow LED Receiver: LED red: lit when the light beam is interrupted LED green: lights up when light beam is free. Stability alarm indicator: available. Operating voltage: 10 ... 30 V DC. Operating current: Emitter: approx. 30 mA (24 V) receiver: approx. 20 mA (24 V). Power consumption: approx. 1.2 W. Test input: high active or low active. Output type: relay. Switching type: light-on. Signal output: 100 mA , short-circuit protected , potential-free. Energized/De-energized delay: < 800 ms. Response time: ≤ 100 ms. Product standard: EN ISO 13849 , EN 12978 , EN 61000-6-2, EN 61000-6-3. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 95 %, not condensing. Degree of protection: IP67 according to EN 60529. Connection: fixed cable with M8 plug, 6-pin. Material: . Housingblack anodized aluminum Epoxy resin molded: . Housing: black anodized aluminum Epoxy resin molded. Mass: approx. 1234 g. Dimensions: . Height2010 mmWidth16 mmDepth16 mm: . Height: 2010 mm. Width: 16 mm. Depth: 16 mm

Brand	Pepperl Fuchs
Lifecycle status	active
