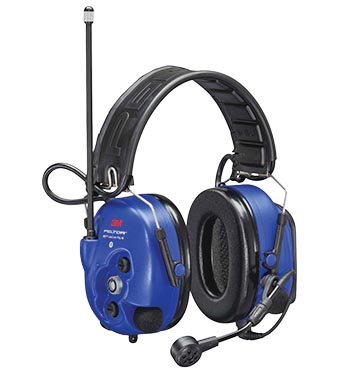

LITE COM PRO III EX HEADBAND

Headset. 3M™ PELTOR™ WS™ LiteCom Pro III Ex Headset, 403-470 MHz, Analog/Digital, Ex, EU version, Headband. Description: Headband. Microphone: Dynamic (MT73). Two-way radio: . Frequency range403 ... 4...

Headset. 3M™ PELTOR™ WS™ LiteCom Pro III Ex Headset, 403-470 MHz, Analog/Digital, Ex, EU version, Headband. Description: Headband. Microphone: Dynamic (MT73). Two-way radio: . Frequency range403 ... 470 MHzOperating modeSimplexChannels70 programmable channelsChannel grid12,5 kHz and 25 kHzModulationAnalog: 2,5 kHz (FM) and 5 kHz (FM)Digital: 2,5 kHz (4-level FSK)Sensitivity (Receiver)Typical -120 dBmSelective squelchProgrammable (supports CTCSS and DCS)Power Output200 / 20 / 10 mW ERDetection rangeOutdoors up to 2 km depending on conditions: . Frequency range: 403 ... 470 MHz. Operating mode: Simplex. Channels: 70 programmable channels. Channel grid: 12,5 kHz and 25 kHz. Modulation: Analog: 2,5 kHz (FM) and 5 kHz (FM)Digital: 2,5 kHz (4-level FSK). Sensitivity (Receiver): Typical -120 dBm. Selective squelch: Programmable (supports CTCSS and DCS). Power Output: 200 / 20 / 10 mW ER. Detection range: Outdoors up to 2 km depending on conditions. Battery type: Li-ion 3.7 V , 1350 mAh , 5 Wh. Charging time: approx. 12 h. Operating duration: 8 h * (90 stby / 5 tx / 5 rx)* can be increased up to 12 hours with the power save feature. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 55 °C (-4 ... 131 °F) < 90 % Humidity. Mass: 521 g. ATEX approval: . ATEX certificatePresafe 16ATEX8960XATEX markingI M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°CII 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C GaII 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C: . ATEX certificate: Presafe 16ATEX8960X. ATEX marking: I M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°CII 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C GaII 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C. IECEx approval: . IECEx certificatePresafe 16.0086XIECEx markingEx ia I Ma -20°C ≤ Ta: ≤ +50°CEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°CEx ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C: . IECEx certificate: Presafe 16.0086X. IECEx marking: Ex ia I Ma -20°C ≤ Ta: ≤ +50°CEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°CEx ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C. Scope of delivery: 3M™ PELTOR™ WS™ LiteCom Pro III Ex headset. Battery ACK082 Power supply FR08 Cable AL2AH (for ACK082) Hygiene kit HY83 Documentation

Brand	Pepperl Fuchs
Lifecycle status	active
