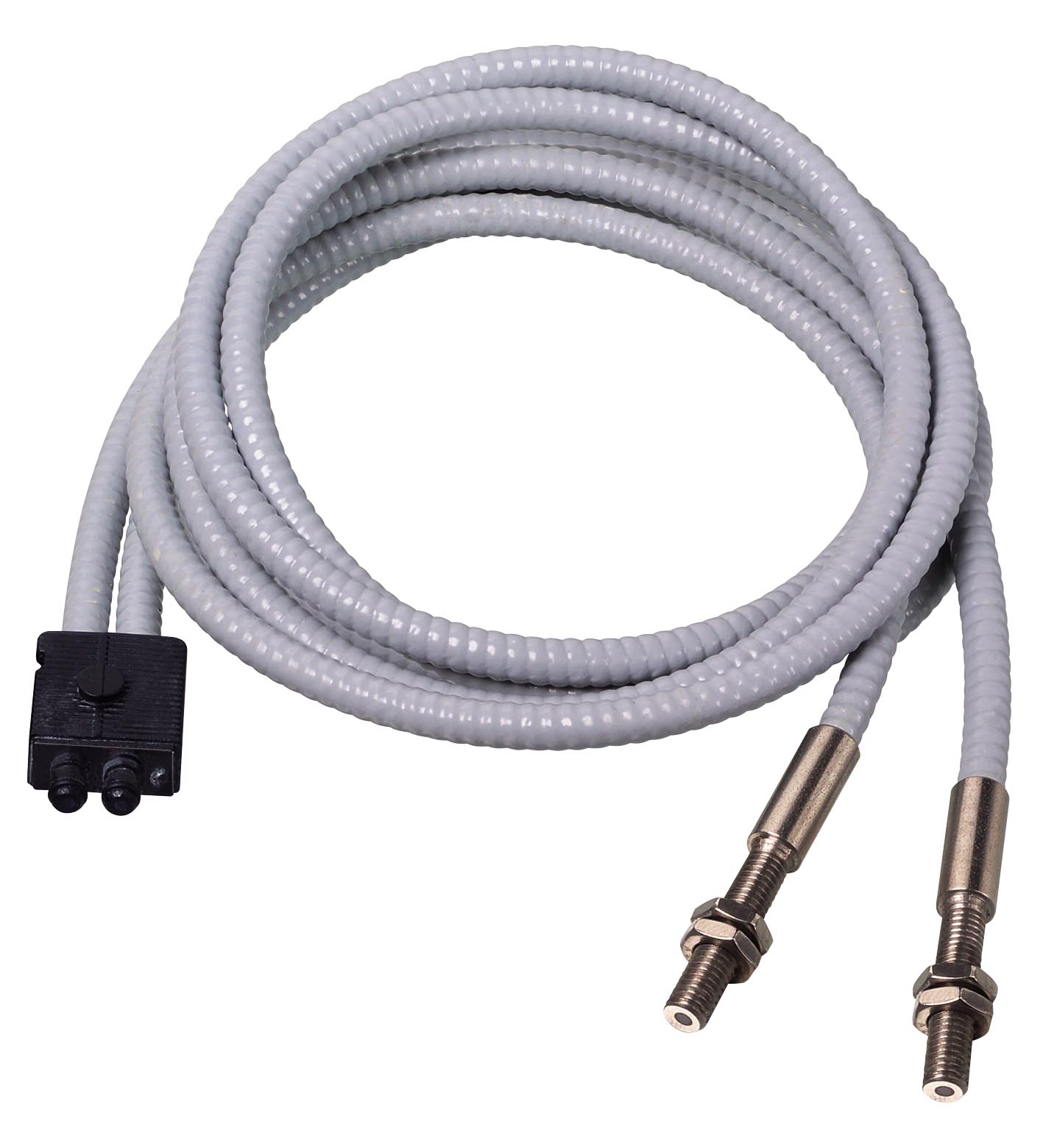

LLE 04-1,6-1,0-G

Glass fiber optic. Glass fiber optic - thru-beam with metal silicone covering, Special features: High temperature, End piece: thread, Series: Glass fiber optic - thru-beam, Sheathing: Metal-silicon, D...

Glass fiber optic. Glass fiber optic - thru-beam with metal silicone covering, Special features: High temperature, End piece: thread, Series: Glass fiber optic - thru-beam, Sheathing: Metal-silicon, Device series: MLV41-LL. Fiber optic length: 1000 mm. Fiber optic diameter: 7.3 mm. Adapter form: 04. End piece: thread. Bending radius: min. 20 mm. Fiber bundle diameter: 1.8 mm optical face: 2.5 mm2. Opening angle: approx. 68 °. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F) [Adapter] -40 ... 180 °C (-40 ... 356 °F) [End head and Covering]. Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Degree of protection: IP65. Material: . Optical faceglassSheathingMetal-siliconCoreGlass fiberEnd pieceStainless steel 1.4305 / AISI 303AdapterPVC: . Optical face: glass. Sheathing: Metal-silicon. Core: Glass fiber. End piece: Stainless steel 1.4305 / AISI 303. Adapter: PVC. Extraction force: at probe at 20°C: 120 N. Device series: MLV41-LL

Brand	Pepperl Fuchs
Lifecycle status	active
