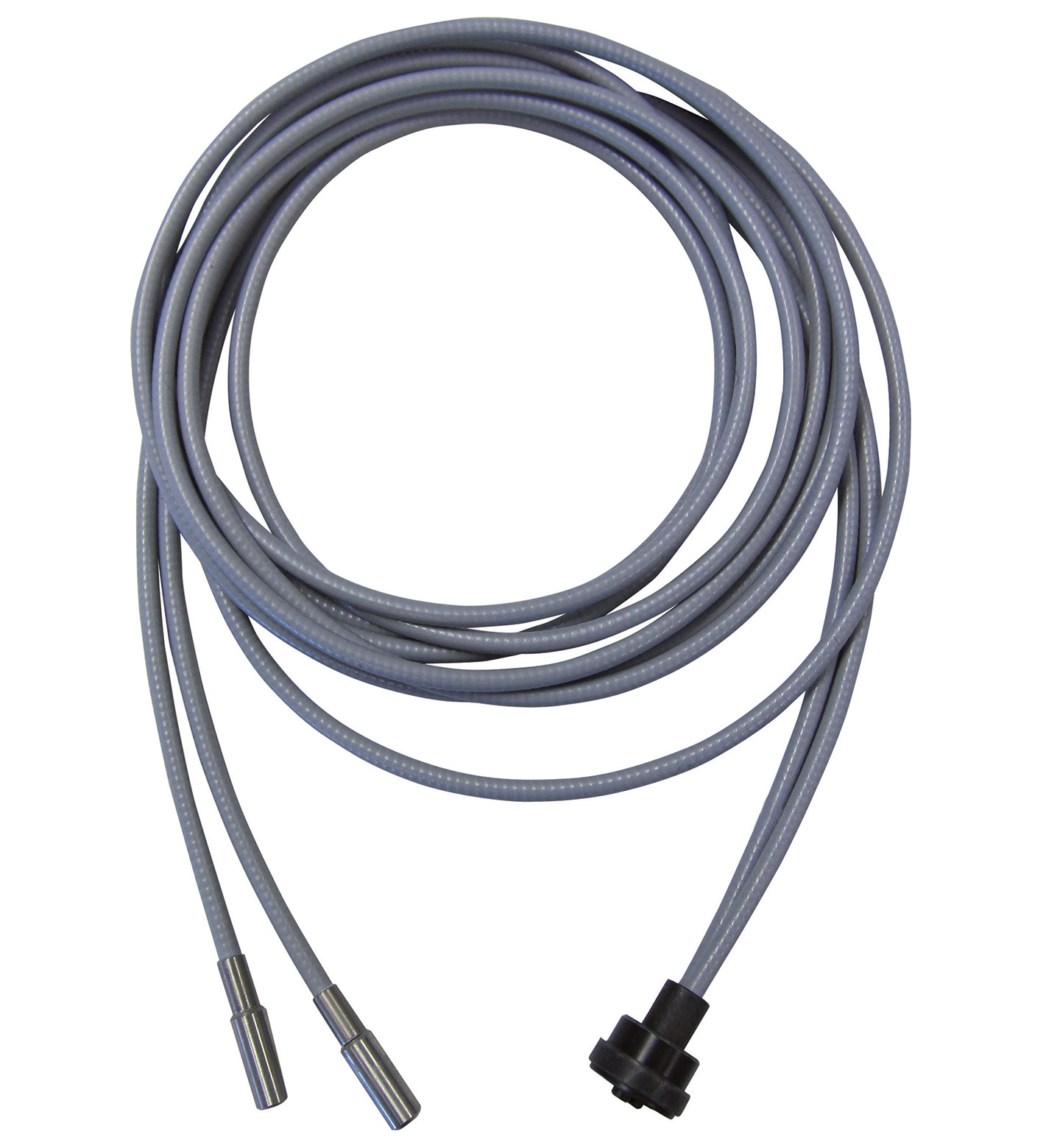

LLE 18/30-2,3-3,0-Z1 M.BÜND.O.

Glass fiber optic. Glass fiber optic - thru-beam with metal/silicon covering and bundled lens, End piece: Cylindrical and bundled lens, Series: Glass fiber optic - thru-beam, Sheathing: Metal-silicon,...

Glass fiber optic. Glass fiber optic - thru-beam with metal/silicon covering and bundled lens, End piece: Cylindrical and bundled lens, Series: Glass fiber optic - thru-beam, Sheathing: Metal-silicon, Device series: GLV30. Detection range: 200 mm. Fiber optic length: 3000 mm. Fiber optic diameter: 5.9 mm. Adapter form: 18/30. End piece: Cylindrical and bundled lens. Bending radius: min. 22 mm. Fiber bundle diameter: 2.3 mm optical face: 4.2 mm2. Opening angle: approx. 68 °. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F) [Adapter] -40 ... 180 °C (-40 ... 356 °F) [End head and Covering]. Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Degree of protection: IP65. Material: . Optical faceglassSheathingMetal-siliconCoreGlass fiberEnd pieceStainless steel 1.4305 / AISI 303AdapterPolyamide PA 6.6: . Optical face: glass. Sheathing: Metal-silicon. Core: Glass fiber. End piece: Stainless steel 1.4305 / AISI 303. Adapter: Polyamide PA 6.6. Extraction force: at probe at 20°C: 120 N. Device series: GLV30

Brand	Pepperl Fuchs
Lifecycle status	active
