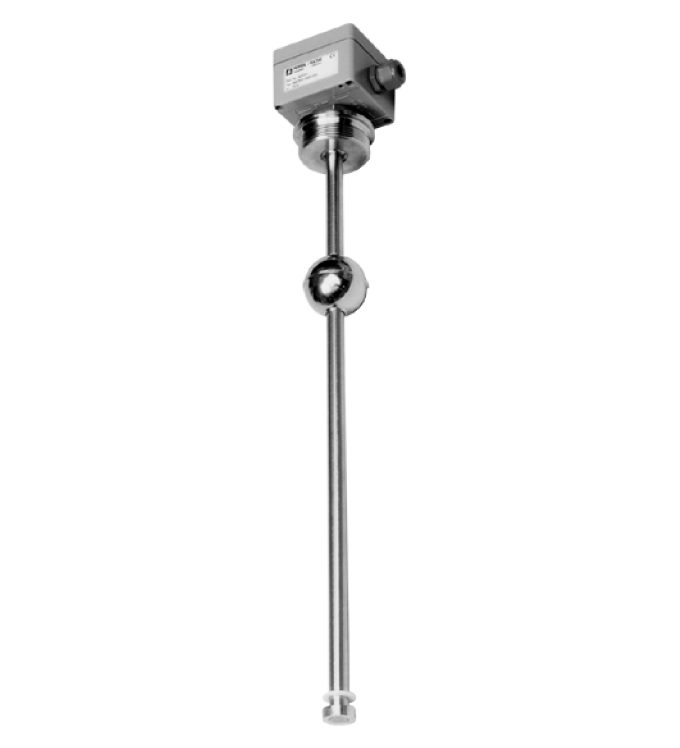

LMC-Ex

Magnetic Immersion Probe for Continuous Measurement. Sensor for continuous level measurement in liquids, Resolution 5 mm or 15 mm, Media contacting parts of stainless steel, Mounting without removing...

Magnetic Immersion Probe for Continuous Measurement. Sensor for continuous level measurement in liquids, Resolution 5 mm or 15 mm, Media contacting parts of stainless steel, Mounting without removing the float , Approved for zone 0. Equipment architecture: A measuring system consists of a magnet-operated immersion probe LMC****-***-I-Ex with built-in converter and a transmitter power supply KFD2-STC4-Ex1 or of a magnet-operated immersion probe LMC****-***-O4-Ex and a potentiometer converter KFD2-PT2-Ex1.. Series: LMC-Ex. Connection: version I: 2-wire, 4 ... 20 mAversion O4: 3-wire, potentiometer connection approx. 40 kΩ. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2006 , EN 61000-6-4:2011: . Directive 2014/30/EU: EN 61000-6-2:2006 , EN 61000-6-4:2011. Degree of protection: IEC 60529:2000. Accuracy: resolution:- version LMC5: 5 mm- version LMC15: 15 mm. Process conditions: . Process temperature-20 ... 100 °C (-4 ... 212 °F)Process pressure (static pressure)≤ 16 bar (232.1 psi)Densityversion S1: ≥ 0.6 g/cm3version S2: ≥ 0.8 g/cm3version S3: ≥ 0.7 g/cm3: . Process temperature: -20 ... 100 °C (-4 ... 212 °F). Process pressure (static pressure): ≤ 16 bar (232.1 psi). Density: version S1: ≥ 0.6 g/cm3version S2: ≥ 0.8 g/cm3version S3: ≥ 0.7 g/cm3. Ambient temperature: terminal box: -50 ... 60 °C (-58 ... 140 °F). Degree of protection: IP66 / IP68. Connection: Version I: 2 terminals, max. 2.5 mm2Version O4: 3 terminals, max. 2.5 mm2. Material: float, guide tube, process connection: stainless steel 1.4571/316Titerminal box: aluminum die-casting. Dimensions: float:- version S1: ball ∅80 mm- version S2: cylinder ∅44 mm x 52 mm- version S3: ball ∅52 mmguide tube:- version LMC5: ∅14 mm, max. length 3000 mm- version LMC15: ∅12 mm, max. length 3000 mm terminal box: 80 x 75 x 57 mm. Process connection: thread G1-1/2A, G2A to DIN/ISO 228/1. EU-type examination certificate: KEMA 03 ATEX 1497 X. Marking II 1/2G EEx ia IIC T4...T6VoltageUi28 VCurrentIi120 mAInternal capacitanceCi0 nFInternal inductanceLi 0 µH: . Marking: II 1/2G EEx ia IIC T4...T6. Voltage: 28 V. Current: 120 mA. Internal capacitance: 0 nF. Internal inductance: 0 µH. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012, EN 60079-11:2012, EN 60079-26:2007: . Directive 2014/34/EU: EN 60079-0:2012, EN 60079-11:2012, EN 60079-26:2007. Supplementary documentation: instruction manuals (SI). Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.. Designation: - LML-FS1 float, ball, Ø80 mm, 1.4571/316Ti- LML-FS4 float, ball, Ø44 mm, 1.4571/316Ti- LML-FS5 float, ball, Ø52 mm, Titanium- LML-FS6 float, cylinder, Ø44 mm x 52 mm, 1.4571/316Ti

Brand	Pepperl Fuchs
Lifecycle status	active
