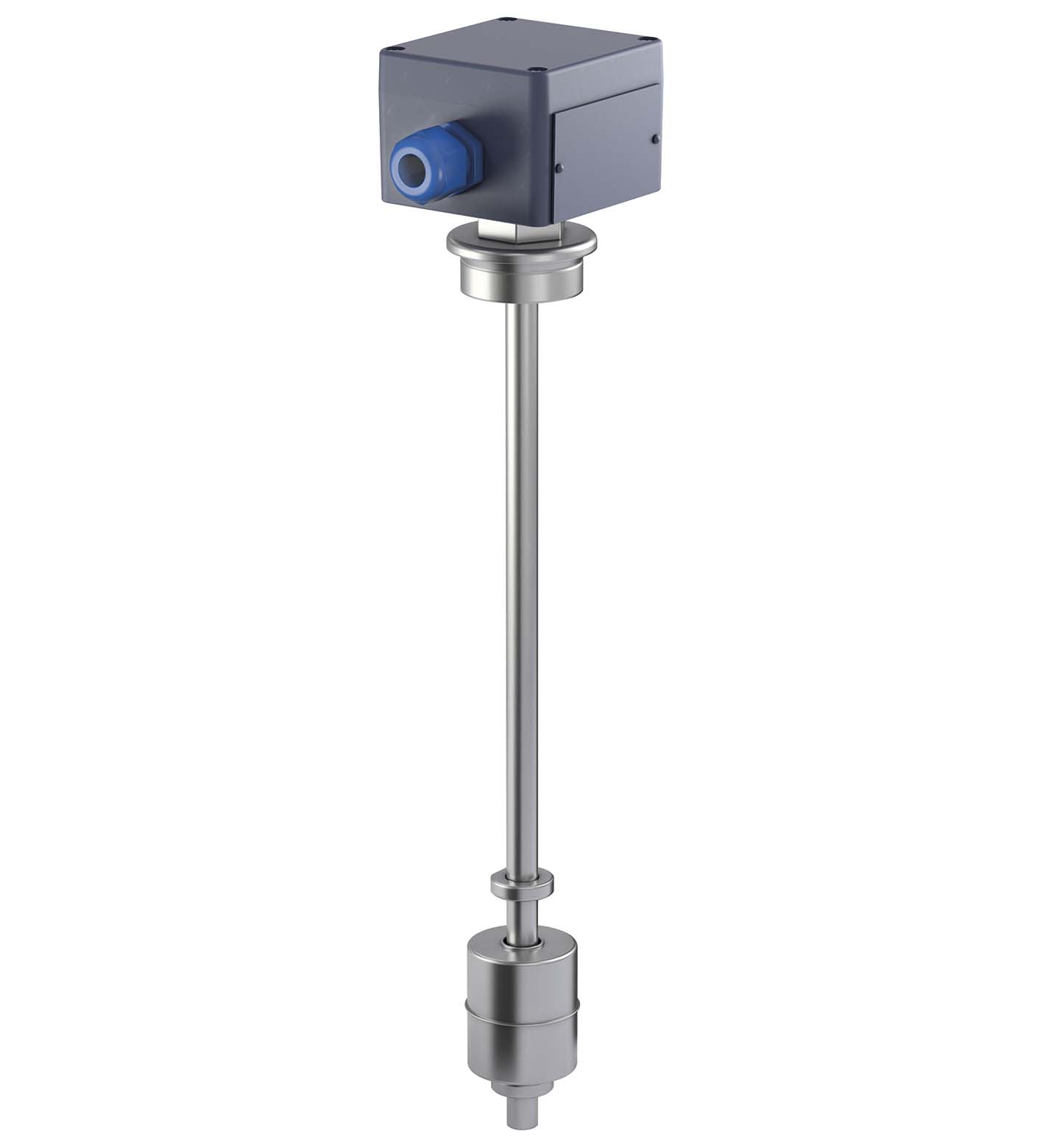

LML-P

Magnetic Immersion Probe for Limit Value Detection. Sensor for limit value detection in liquids, Media contacting parts of plastic, Mounting without removing the float (G5 and G6). Function principle:...

Magnetic Immersion Probe for Limit Value Detection. Sensor for limit value detection in liquids, Media contacting parts of plastic, Mounting without removing the float (G5 and G6). Function principle: ring magnet as switching element in the float, reed contact, change-over contactnumber of contacts:- version LML1: 1 contact- version LML2: 2 contacts- version LML3: 3 contacts. Series: LML-P. Rated voltage: 250 V AC/DC. Current consumption: 1 A. Power consumption: 40 VA. Connection: This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2000. Installation conditions: . Switching pointposition according to specification: . Switching point: position according to specification. Process conditions: . Process temperatureversion PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F)Process pressure (static pressure)≤ 3 bar (43.5 psi)Density≥ 0.8 g/cm3: . Process temperature: version PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F). Process pressure (static pressure): ≤ 3 bar (43.5 psi). Density: ≥ 0.8 g/cm3. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP66 / IP68. Connection: version LML: terminal box, max. 9 terminalsversion LML-PVC1: connection cable 1 m (3.3 ft), 0.75 mm2. Material: float, guide tube, process connection:- version PP: PP (Polypropylene)- version PVDF: PVDF (Polyvinylidenfluoride)connection cable: PVCterminal box: Polyester. Dimensions: float:- version PP: cylinder ∅44 mm x 44 mm- version PVDF: cylinder ∅55 mm x 70 mmguide tube:- version D: ∅12 mm, max. length 1000 mm- version P: ∅16 mm, max. length 1000 mm- other lengths on requestterminal box: 80 x 82 x 55 mm. Process connection: thread G3/8A, G1-1/2A, G2A to DIN/ISO 228/1. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.. Designation: - LML-Z21 set collar, PP- LML-Z22 set collar, PVDF - LML-FD5 float, cylinder, Ø55 mm x 70 mm, PVDF- LML-FP7 float, cylinder, Ø44 mm x 44 mm, PP

Brand	Pepperl Fuchs
Lifecycle status	active
