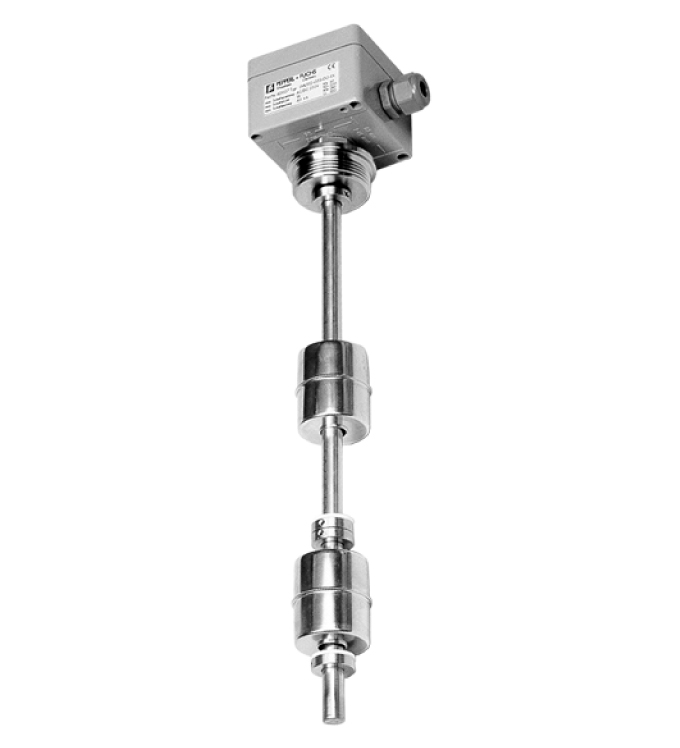

LML-S
Magnetic Immersion Probe for Limit Value Detection. Sensor for limit value detection in liquids, Media contacting parts of stainless steel, Mounting without removing the float (G5 and G6). Function pr...
Magnetic Immersion Probe for Limit Value Detection. Sensor for limit value detection in liquids, Media contacting parts of stainless steel, Mounting without removing the float (G5 and G6). Function principle: ring magnet as switching element in the float, reed contact, change-over contactnumber of contacts:- version LML1: 1 contact- version LML2: 2 contacts- version LML3: 3 contacts. Series: LML-S. Rated voltage: 250 V AC/DC. Current consumption: 1 A. Power consumption: 40 VA. Connection: This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2000. Installation conditions: . Switching pointposition according to specification: . Switching point: position according to specification. Process conditions: . Process temperatureversion LML: -30 ... 150 °C (-22 ... 302 °F)version LML-PVC1: -10 ... 80 °C (14 ... 176 °F)Process pressure (static pressure)≤ 25 bar (362.6 psi)Densityversion S2: ≥ 0.8 g/cm3version S3: ≥ 0.7 g/cm3: . Process temperature: version LML: -30 ... 150 °C (-22 ... 302 °F)version LML-PVC1: -10 ... 80 °C (14 ... 176 °F). Process pressure (static pressure): ≤ 25 bar (362.6 psi). Density: version S2: ≥ 0.8 g/cm3version S3: ≥ 0.7 g/cm3. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP66 / IP68. Connection: version LML: terminal box, max. 9 terminalsversion LML-PVC1: connection cable 1 m (3.3 ft), 0.75 mm2. Material: float, guide tube, process connection: stainless steel 1.4571/316Ticonnection cable: PVCterminal box: aluminum die-casting. Dimensions: float:- version S2: cylinder ∅44 mm x 52 mm- version S3: ball ∅52 mmguide tube: ∅12 mm, max. length 3000 mmterminal box: 80 x 75 x 55 mm. Process connection: thread G3/8A, G1-1/2A, G2A to DIN/ISO 228/1. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.. Designation: - LML-Z11 set collar, 1.4571/316Ti - LML-FS2 float, cylinder, Ø44 mm x 52 mm, 1.4571/316Ti- LML-FS3 float, ball, Ø52 mm, 1.4571/316Ti
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
