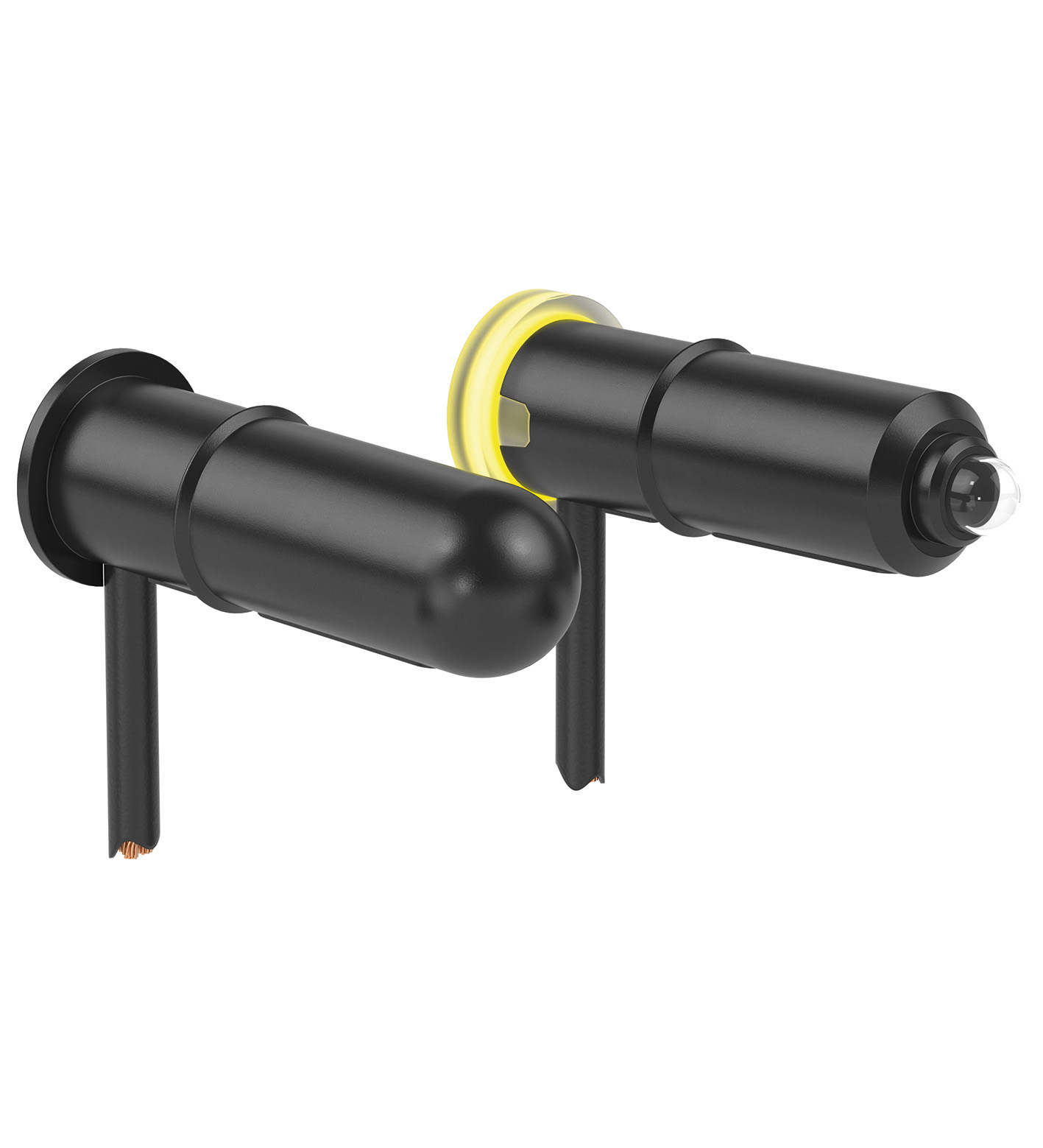

LOW-POWER-SIGNAL-12M-1/10,5Mol

Safety edge. Safety thru-beam sensor, Modulated infrared light, No additional mounting materials required, For mounting GP series rubber profiles, Comprehensive accessories, Function: Secure, Sensor p...

Safety edge. Safety thru-beam sensor, Modulated infrared light, No additional mounting materials required, For mounting GP series rubber profiles, Comprehensive accessories, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: battery operated 3 ... 6 V DC <BR>Coiled Cable: 9 ... 27 V DC, Output type: OSE, Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected, Connection: PUR cable <BR>0.14 mm² 3 conductor , halogen-free. Effective detection range: 1 ... 12 m. Threshold detection range: 12 m. Number of protective field beams: 1. Light source: IRED. Light type: 880 nm IR light pulsed. Marking: CE. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: LED yellow. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected. Operating voltage: battery operated 3 ... 6 V DC Coiled Cable: 9 ... 27 V DC. Operating current: battery operated 1.6 mA coiled 3.8 mA. Output type: OSE. Switching type: light-on. Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected. Energized/De-energized delay: typ. 100 ms. Functional safety: ISO 13849-1 , Cat. 2 PL d. Product standard: EN 61000-6-2, EN 61000-6-3 , EN 12978. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Degree of protection: IP67 according to EN 60529 molded. Connection: PUR cable 0.14 mm2 3 conductor , halogen-free. Material: . HousingEmitter: black ABS / Receiver: Lexan (PC) , black: . Housing: Emitter: black ABS / Receiver: Lexan (PC) , black. Mass: at 1 m Cable: 21 g at 10,5 m Cable: 155 g. Dimensions: . Length39 mmDiameter12 mm: . Length: 39 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
