LRP*.*

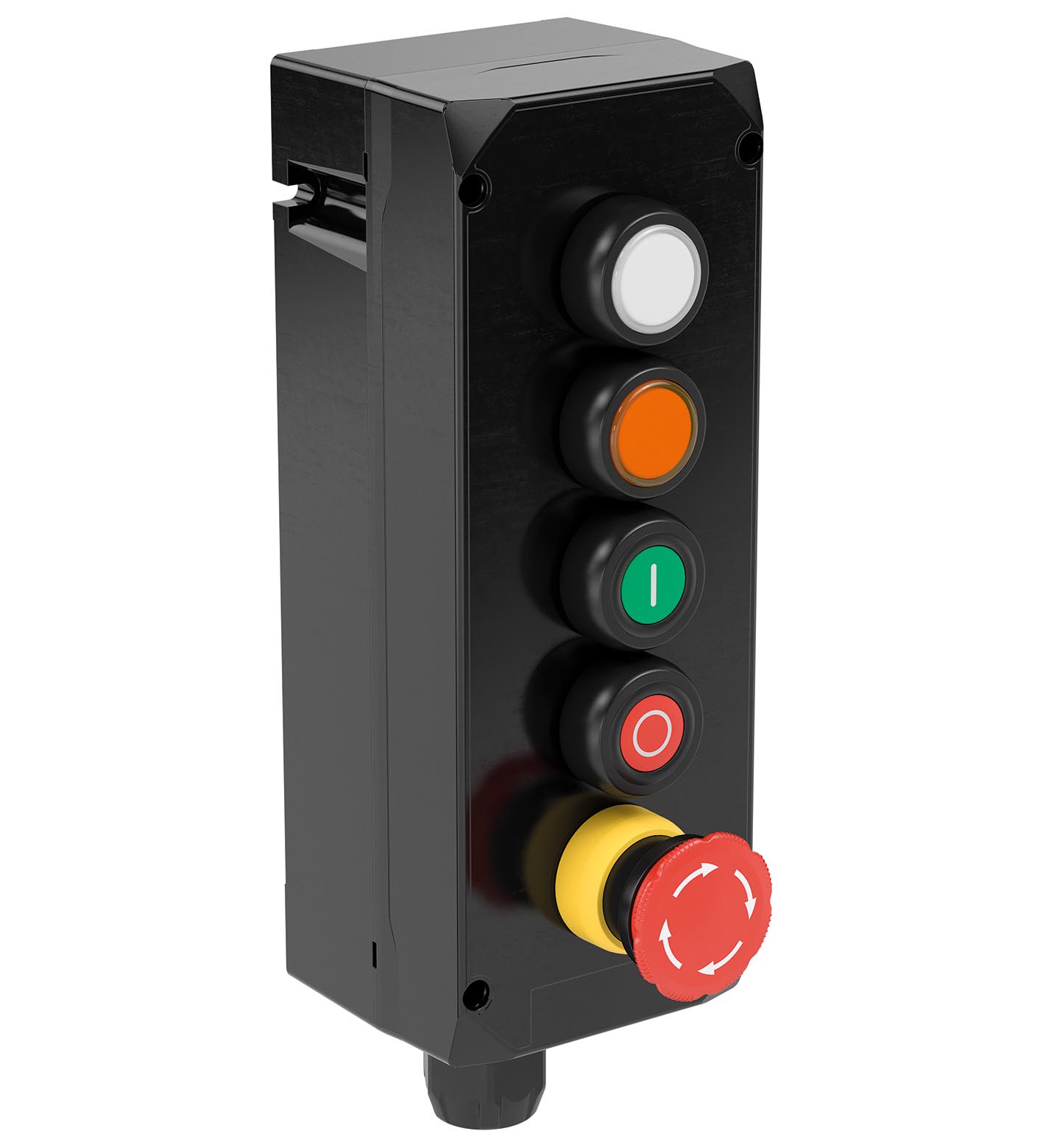

Control Units Ex e, Polyamide. Polyamide (PA) enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb, Ex ib and Ex tb certified, Up to 5 operators per enclosure, Customizable configu...
Control Units Ex e, Polyamide. Polyamide (PA) enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb, Ex ib and Ex tb certified, Up to 5 operators per enclosure, Customizable configuration of operators, contact modules and cable entries as per specification, Wide range of labels and accessories available, 5 enclosure size options, Degree of protection IP66, Installation in portrait, landscape on request, Function: see data table, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) <BR>-50 °C (-58 °F) on request. Operating voltage: 400 V max.. Operating current: 16 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: see data table. Enclosure range: LRP. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm: . Screws: M4 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 1.5 Nm. Degree of protection: IP66. Cable entry: cable glands as per specification. Number of cable entriessee data table: . Number of cable entries: see data table. Defined entry area: face A and face B. Material: . EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone: . Enclosure: Polyamide (PA). Finish: inherent color black. Seal: one piece closed cell silicone. Mass: see data table. Dimensions: see data table. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: see data table. Grounding: 2x 2.5mm² grounding terminal. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) -50 °C (-58 °F) on request. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request: . Marking: II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. ECAS approval: 24-11-132356/E24-11-137186/NB0002. IA approval: MASC S/22-8362X. CCC approval: 2020322304002545. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 2829. Ordering information: For standard configured units please see pdf datasheet. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label. Control elements: small footprint max. 5 see data table all NC contacts have a direct opening action for emergency stop functions
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
