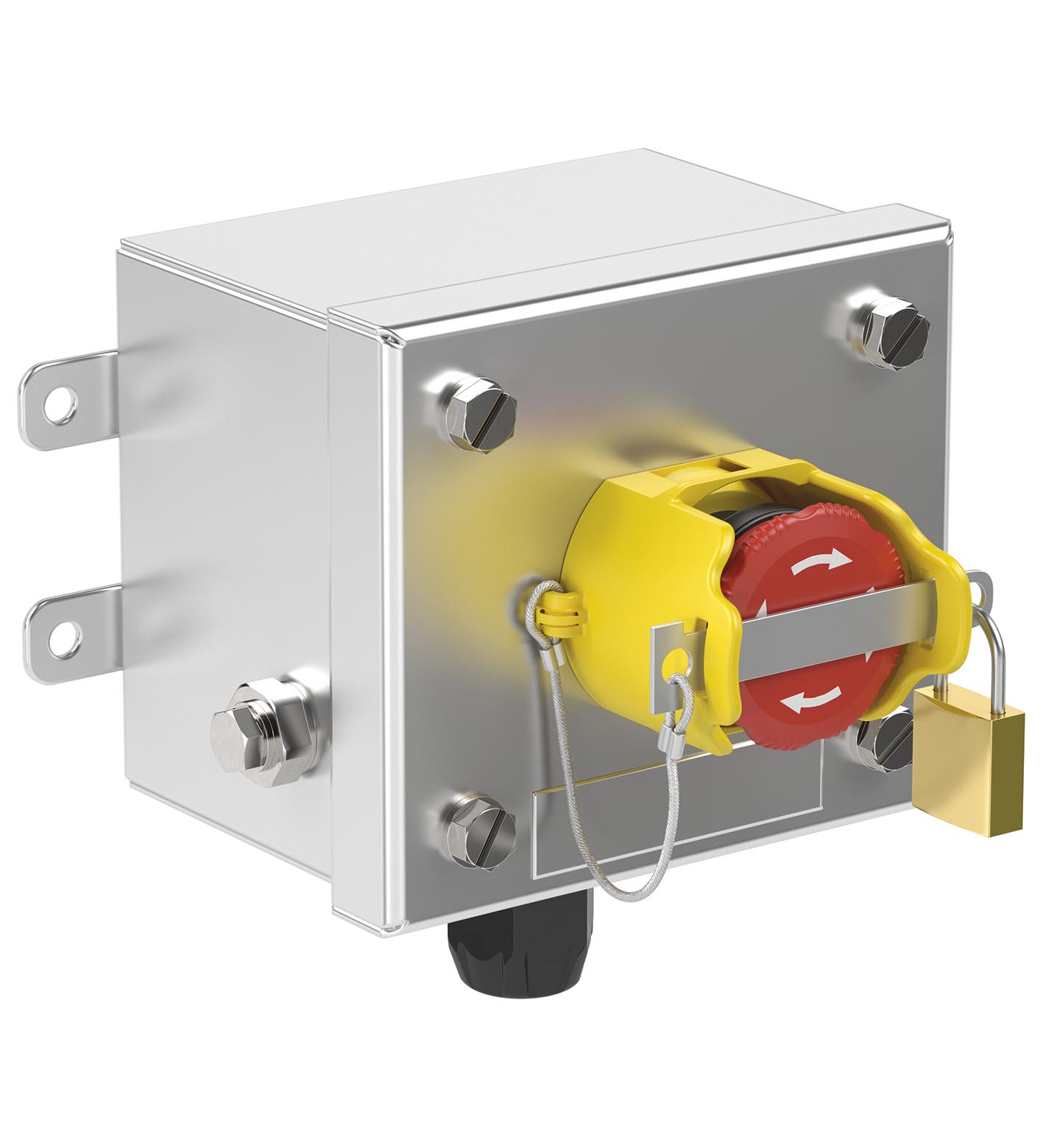

LRS1.B.E4MZPR.B.1

Control Unit Ex e, Stainless Steel, Emergency Stop Button. Emergency stop mushroom button 40 mm, red, twist-to-release - 1x NO / 1x NC, Stainless Steel AISI 316L, Installation in Zone 1, Zone 2, Zone...

Control Unit Ex e, Stainless Steel, Emergency Stop Button. Emergency stop mushroom button 40 mm, red, twist-to-release - 1x NO / 1x NC, Stainless Steel AISI 316L, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Ex db eb and Ex tb certified, Emergency stop shroud with padlock, Bottom face cable gland polyamide, 1x M20, Function: mushroom button, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4 <BR>-40 ... 40 °C (-40 ... 104 °F) @ T6 <br>, Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Operating voltage: 250 V max.. Operating current: 13 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: mushroom button. ColorredShroudplasticContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionlatching , twist to releaseLabelingnone as standard: . Color: red. Shroud: plastic. Contact configuration: 1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 A. Number of poles: 2. Operator action: latching , twist to release. Labeling: none as standard. Enclosure range: SR. Enclosure cover: fully detachable. Cover fixing: stainless steel A4 (V4A) hexagonal head screws. ScrewsM6Number4Tightening torque3 Nm - 3.5 Nm: . Screws: M6. Number: 4. Tightening torque: 3 Nm - 3.5 Nm. Degree of protection: IP66. Cable entry: thru-holes direct through body. Cable entry face B: . M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm: . M20 quantity: 1. M20 series: Cable Glands, Plastic. M20 type: CG.PEDS1.M20.*. M20 clamping range: 6 ... 12 mm. Defined entry area: face B. Material: . Enclosure1.5 mm AISI 316L, (1.4404) stainless steelFinishbrushedSealone piece closed cell silicone: . Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Finish: brushed. Seal: one piece closed cell silicone. Mass: approx. 0.7 kg. Dimensions: . External dimension (A)102 mmExternal dimension (B)116 mmExternal dimension (C)87 mmExternal dimension with operating element (C1)132 mmExternal dimension with screws (C2)92 mmMounting holes distance (G)41 mmMounting holes distance (H)130 mmMounting holes diameter (J)6.1 mmThickness of mounting brackets (N)1.5 mmMaximum external dimension (K)145 mm: . External dimension (A): 102 mm. External dimension (B): 116 mm. External dimension (C): 87 mm. External dimension with operating element (C1): 132 mm. External dimension with screws (C2): 92 mm. Mounting holes distance (G): 41 mm. Mounting holes distance (H): 130 mm. Mounting holes diameter (J): 6.1 mm. Thickness of mounting brackets (N): 1.5 mm. Maximum external dimension (K): 145 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 4 screws. Grounding: M6 internal/external brass nickel-plated grounding bolt. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ): . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ). IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label M6 internal/external stainless steel grounding bolt

Brand	Pepperl Fuchs
Lifecycle status	active
