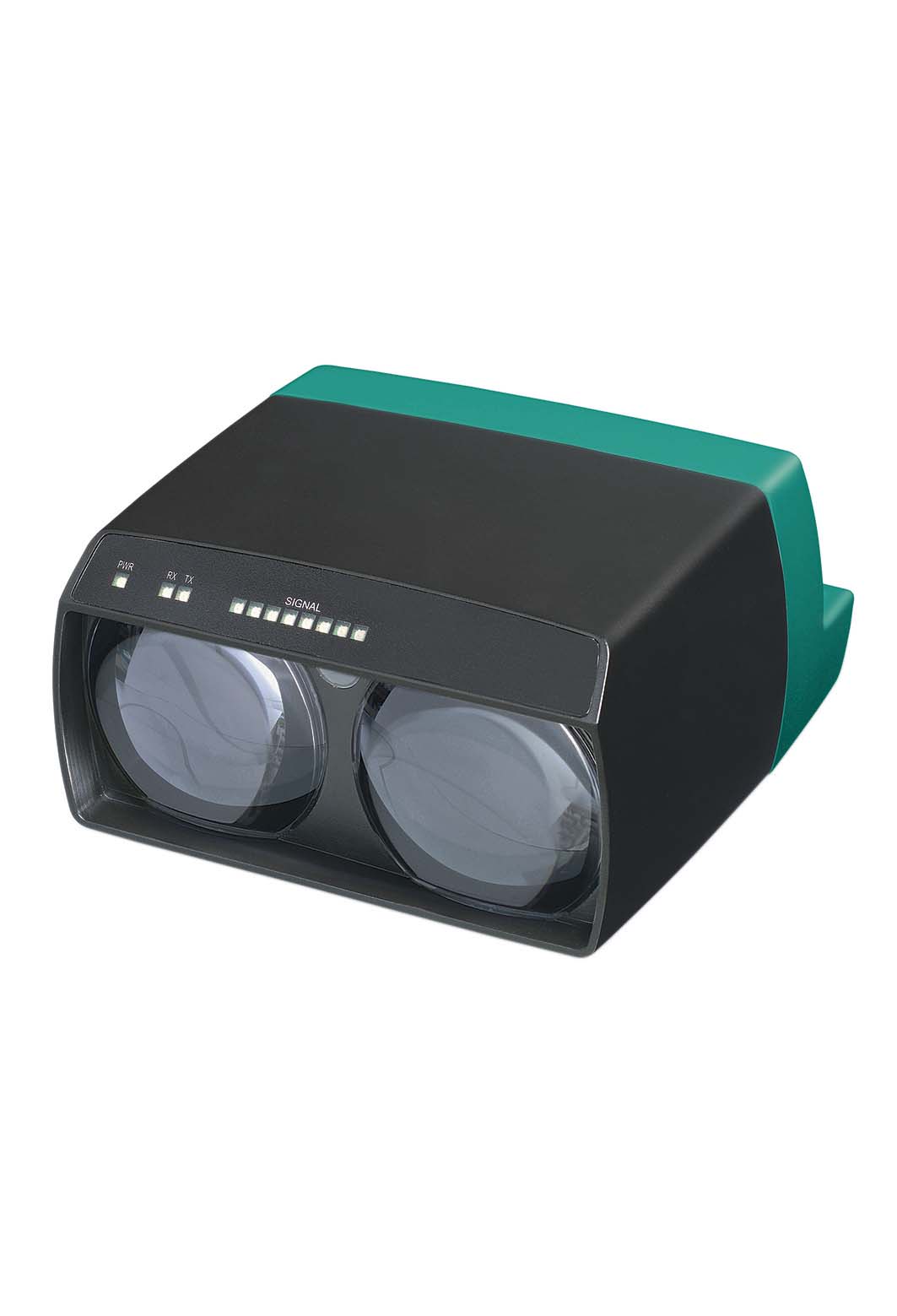

LS610-DA-IBS/F2/146

Optical data coupler. Optical data coupler for INTERBUS, 120 m detection range, infrared light, M12 plug, low temperature version, Devices for INTERBUS, Version for low temperature applications, Plug...

Optical data coupler. Optical data coupler for INTERBUS, 120 m detection range, infrared light, M12 plug, low temperature version, Devices for INTERBUS, Version for low temperature applications, Plug connection for fast mounting, No parameterization, Usable up to detection range 0. Effective detection range: 0 ... 120 m. Threshold detection range: 140 m. Light type: modulated infrared light. Diameter of the light spot: 2 m at a distance of 100 m. Opening angle: 1.1 °. Ambient light limit: > 10000 Lux. MTTFd: 260 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Data flow indicator: LED green: emitterLED yellow: receiver. Function indicator: alignment aid: flashing front red LED Signal strength (8 LED: Red, yellow, green). Operating voltage: 18 ... 30 V DC. No-load supply current: 200 mA. Data rate: 0 ... 2 MBit/s. Operation frequency: F2 = 12.5 MHz. Interface type: RS 422 , galvanically isolated. Stability alarm output: 1 PNP (switches if there is sufficient operating reserve) short-circuit protected, max. 200 mA. Product standard: EN 60947-5-2. Approvals: CE, cULus. Ambient temperature: -30 ... 50 °C (-22 ... 122 °F) , For use in dry cold. Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Degree of protection: IP65. Connection: 4-pin, M12x1 connector, standard (supply) ,5-pin, M12x1 connector, B-coded (Remote Bus In) ,5-pin, M12x1 socket, B-coded (Remote Bus Out). Material: . HousingABS / PCOptical faceplastic: . Housing: ABS / PC. Optical face: plastic. Mass: 700 g. Dimensions: . Height90 mmWidth170 mmLength171 mm: . Height: 90 mm. Width: 170 mm. Length: 171 mm

Brand	Pepperl Fuchs
Lifecycle status	active
