Pepperl Fuchs

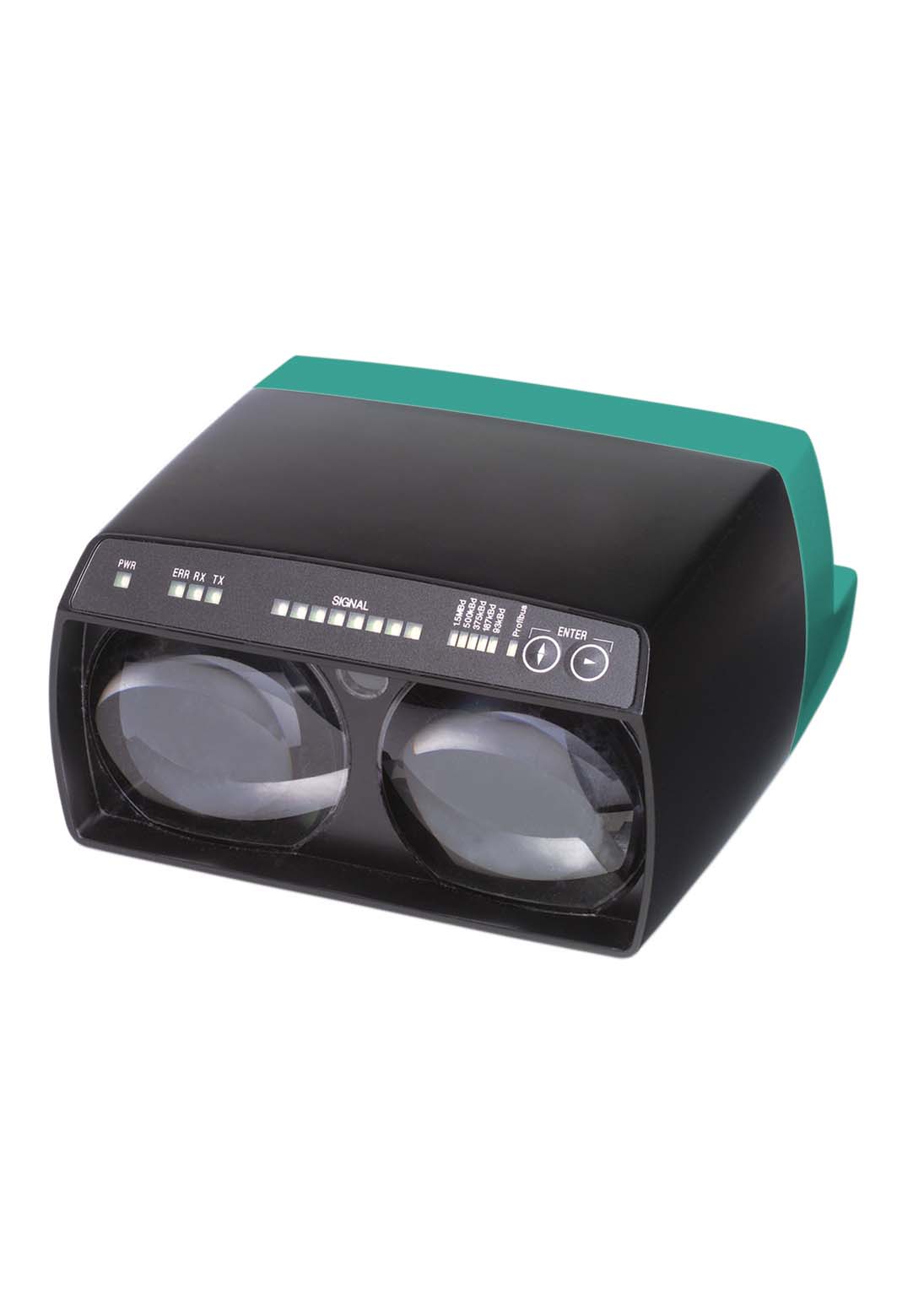

LS610-DA-P/F2

Optical data coupler. Optical data coupler for PROFIBUS, 120 m detection range, infrared light, M12 plug, Devices for PROFIBUS, Problem-free light beam interruption due to TVT (Telegram Verification Technology), Plug connection for fast mounting, Simple programming without opening the device, Usable up to detection range 0. Effective detection range: 0 ... 120 m. Threshold detection range: 140 m. Light type: modulated infrared light. Diameter of the light spot: 2 m at a distance of 100 m. Opening angle: 1.1 °. Ambient light limit: > 10000 Lux. MTTFd: 250 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Data flow indicator: LED green: emitterLED yellow: receiver LED red: faulty telegram. Function indicator: alignment aid: flashing front red LED Signal strength (8 LED: Red, yellow, green) Baudrate, operating mode. Control elements: membrane keys, 2 keys, can be electrically locked. Operating voltage: 18 ... 30 V DC. No-load supply current: 200 mA. Data rate: 93.75; 187.5;(350); 500;1500 kBit/s , adjustable. Operation frequency: F2 = 12.5 MHz. Interface type: PROFIBUS, galvanically isolated. Function input: Keylock, internal Pull-up resistorkeypad locked with 0 V. Stability alarm output: 1 PNP (switches if there is sufficient operating reserve) short-circuit protected, max. 200 mA. Product standard: EN 60947-5-2. Approvals: CE, cULus. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP65. Connection: 4-pin, M12x1 connector, standard (supply) ,5-pin, M12x1 connector, B-coded (Bus In) ,5-pin, M12x1 socket, B-coded (Bus Out/Termination). Material: . HousingABS / PCOptical faceplastic: . Housing: ABS / PC. Optical face: plastic. Mass: 700 g. Dimensions: . Height90 mmWidth170 mmLength171 mm: . Height: 90 mm. Width: 170 mm. Length: 171 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
