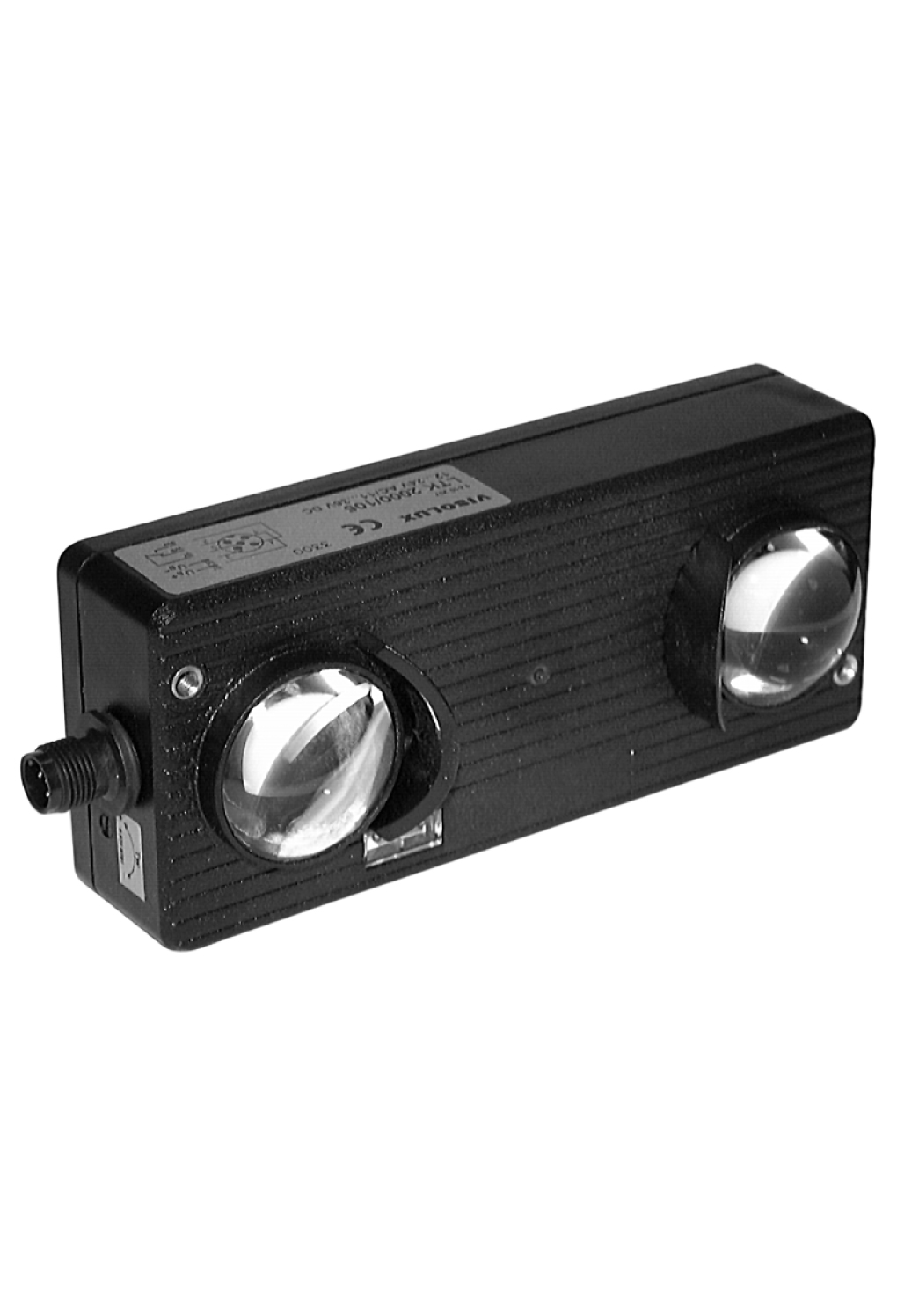

LT2-8-HS-2000/47/105

Active infrared scanner. Precision sensor for long detection ranges up to 2 m, Mode selectable: background suppression or evaluation, Mechanical adjustable detection range, Adjustable timer functions,...

Active infrared scanner. Precision sensor for long detection ranges up to 2 m, Mode selectable: background suppression or evaluation, Mechanical adjustable detection range, Adjustable timer functions, DC voltage version, Function: Secure, Sensor principle: Diffuse mode sensor, Operating voltage: 15 ... 35 V DC, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Connection: 5-pin plastic M12 connector without cable. Detection range min.: 0 ... 500 mm by background evaluation,350 ... 500 mm by background suppression. Detection range max.: 0 ... 2000 mm by background evaluation, 350 ... 2500 mm by background suppression. Light source: IRED. Light type: modulated infrared light. Operating mode: switching between background suppression/evaluation. Diameter of the light spot: 50 mm at 2000 mm sensor range. MTTFd: 730 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED green: power onLED yellow: object detection. Control elements: Sensing range setting, programming switch for time functions, time setting. Operating voltage: 15 ... 35 V DC. Ripple: 10 %. No-load supply current: 100 mA. Test input: emitter deactivation with +Ub. Switching type: light/dark on selectable programmable , Factory setting: light on. Signal output: 2 PNP, complementary, short-circuit protected, open collectors. Switching voltage: 35 V DC. Switching current: 200 mA. Response time: 50 ms. De-energized delay: 100 ms. Timer function: Programmable on/off delay, adjustable 0.1 ... 10 s. Product standard: EN 60947-5-2. Standard conformity: . Emitted interferenceEN 61000-6-3StandardsEN 61000-6-2 without EN 61000-4-5, EN 61000-4-11: . Emitted interference: EN 61000-6-3. Standards: EN 61000-6-2 without EN 61000-4-5, EN 61000-4-11. CE conformity: yes. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP65. Connection: 5-pin plastic M12 connector without cable. Material: . HousingMakrolon GV30Optical facehardened plastic lens: . Housing: Makrolon GV30. Optical face: hardened plastic lens. Mass: 320 g. Dimensions: . Height64 mmWidth150 mmDepth49 mm: . Height: 64 mm. Width: 150 mm. Depth: 49 mm

Brand	Pepperl Fuchs
Lifecycle status	active
