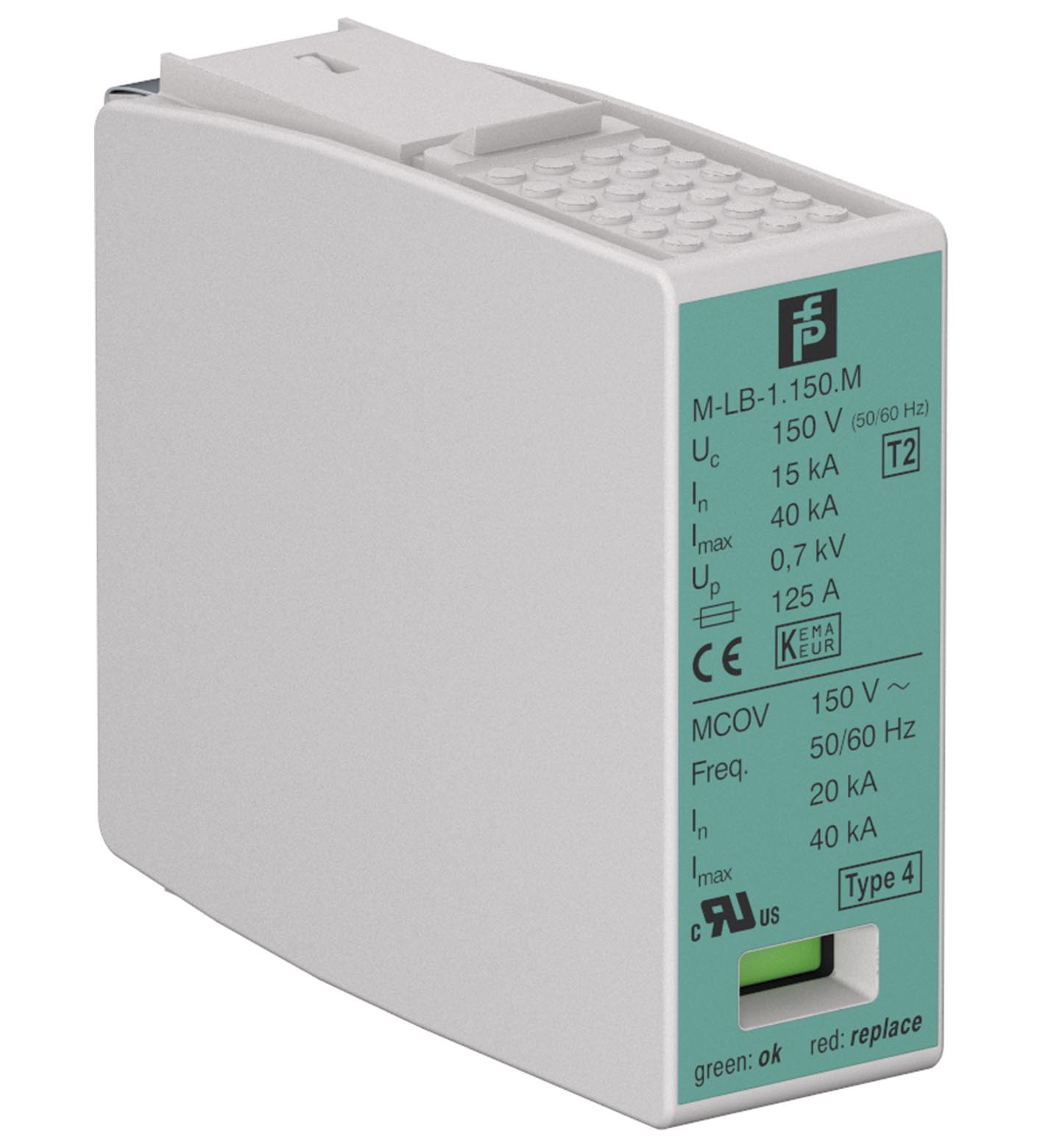

M-LB-1.150.M

Protection Module for Surge Protection Barrier. Protection module for 1 supply line, Type 2 acc. to EN 61643-11, Exchange device for surge protection barrier M-LB-*.150*.D, Easy replacement of protect...

Protection Module for Surge Protection Barrier. Protection module for 1 supply line, Type 2 acc. to EN 61643-11, Exchange device for surge protection barrier M-LB-*.150*.D, Easy replacement of protection modules wihtout tools, High discharge capacity, Module can be exchanged under voltage (hot swap), Device type: type 2 acc. to EN 61643-11<br>class II acc. to IEC 61643-1, Number of protected supply lines: 1. Device type: type 2 acc. to EN 61643-11class II acc. to IEC 61643-1. Number of protected supply lines: 1. Maximum continuous operating voltage: 150 V AC. Nominal discharge current (8/20 µs): 15 kA. Max. surge current (8/20 µs): 40 kA. Display elements: status display operating state (green)fault indication (red). Low voltage: . Directive 2014/35/EUEN 61643-11:2012: . Directive 2014/35/EU: EN 61643-11:2012. Degree of protection: IEC 60529. Shock resistance: EN 60068-2. Vibration resistance: EN 60068-2. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Degree of protection: IP20. Material: . Housingthermoplastic, color grey , UL 94 V-0: . Housing: thermoplastic, color grey , UL 94 V-0. Mass: approx. 50 g. Dimensions: 18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880. Height45 mmWidth18 mmDepth50 mm: . Height: 45 mm. Width: 18 mm. Depth: 50 mm. Mounting: in the surge protection barrier M-LB-*.****.*. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
