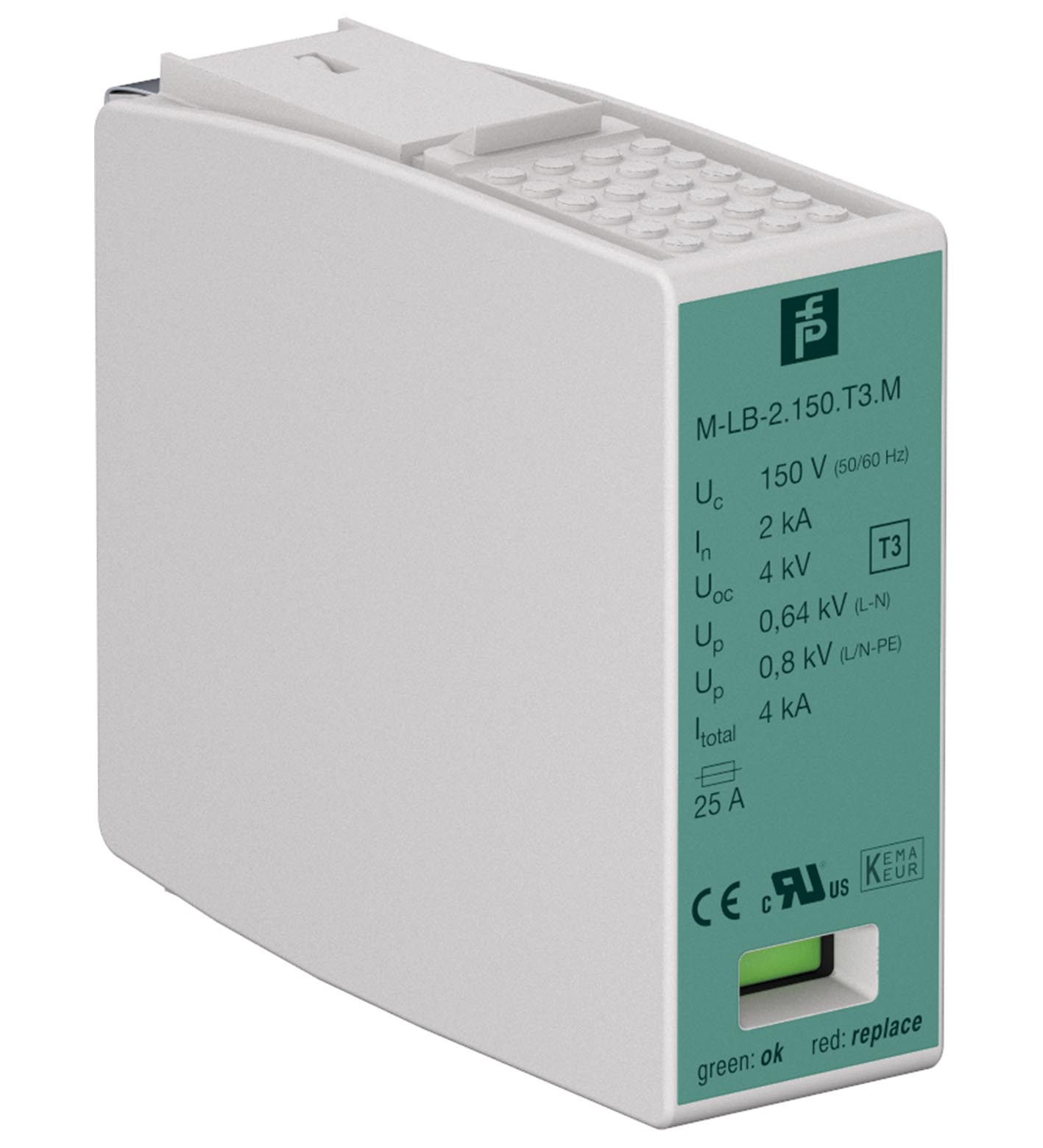

M-LB-2.150.T3.M

Protection Module for Surge Protection Barrier. Protection module for 1 supply line, Type 3 acc. to EN 61643-11, Removable module for surge protection barrier M-LB-2.150.T3.D, Easy replacement of prot...

Protection Module for Surge Protection Barrier. Protection module for 1 supply line, Type 3 acc. to EN 61643-11, Removable module for surge protection barrier M-LB-2.150.T3.D, Easy replacement of protection modules wihtout tools, High discharge capacity, Module can be exchanged under voltage (hot swap), Device type: type 3 acc. to EN 61643-11:2013<br>class III acc. to IEC 61643-1:2011, Number of protected supply lines: 1. Device type: type 3 acc. to EN 61643-11:2013class III acc. to IEC 61643-1:2011. Number of protected supply lines: 1. Maximum continuous operating voltage: 150 V AC 150 V DC. Nominal load current: 25 A. Nominal discharge current (8/20 µs): 2 kA. Max. surge current (8/20 µs): 4 kA. Display elements: status display operating state (green)fault indication (red). Low voltage: . Directive 2014/35/EUEN 61643-11:2012: . Directive 2014/35/EU: EN 61643-11:2012. Degree of protection: IEC 60529:2013. Shock resistance: EN 60068-2:2010. Vibration resistance: EN 60068-2:2010. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Degree of protection: IP20. Material: . Housingthermoplastic, color grey , UL 94 V-0: . Housing: thermoplastic, color grey , UL 94 V-0. Mass: approx. 50 g. Dimensions: 18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880. Mounting: in the surge protection barrier M-LB-*.****.*. UL approval: E346845. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
