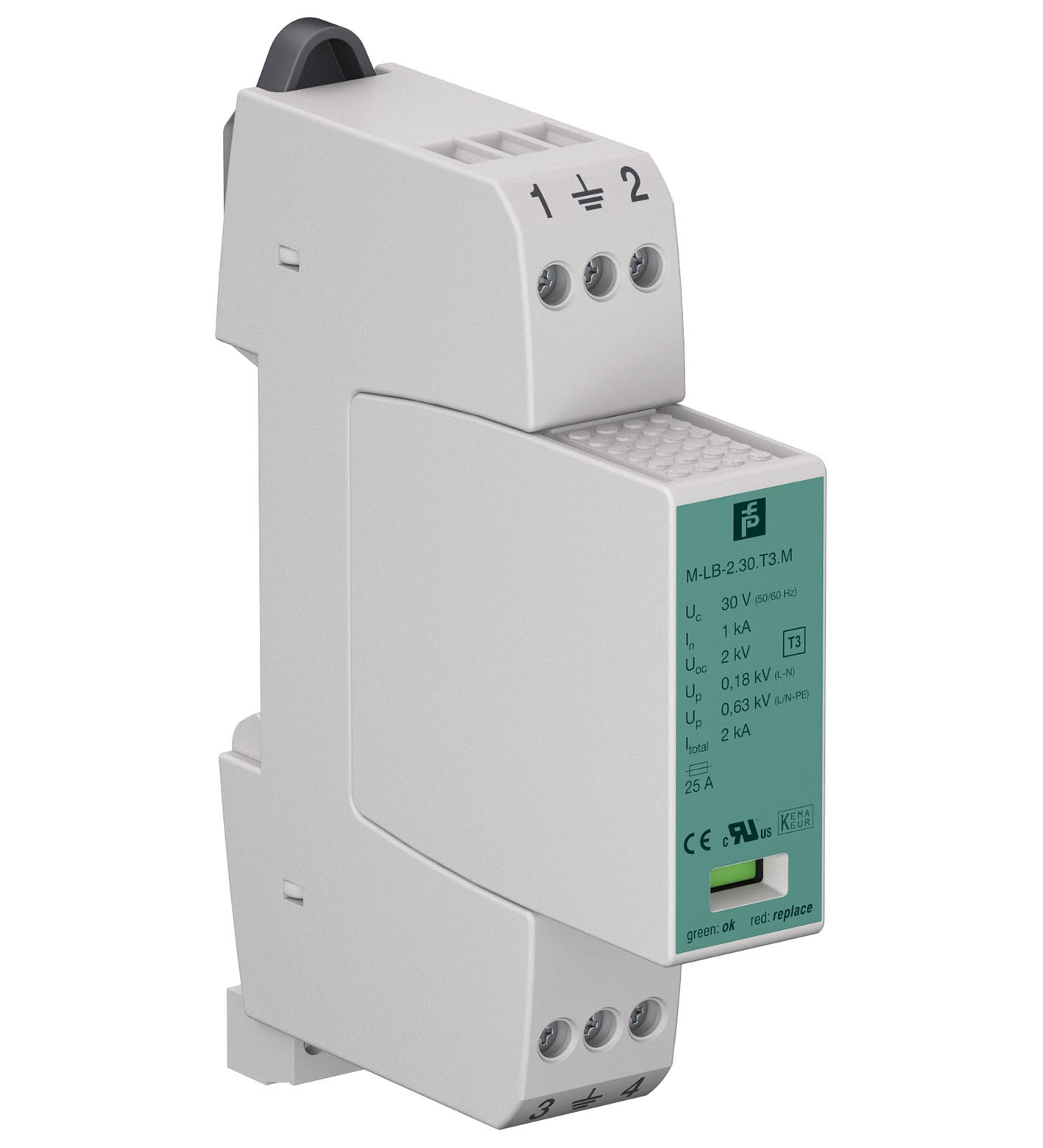

M-LB-2.30.T3.D

Surge Protection Barrier. Surge protection for 2 supply lines, Type 3 acc. to EN 61643-11, Nominal voltage 24 V AC, Pre-wired unit, Operating state and fault indication of every protected line, Fault...

Surge Protection Barrier. Surge protection for 2 supply lines, Type 3 acc. to EN 61643-11, Nominal voltage 24 V AC, Pre-wired unit, Operating state and fault indication of every protected line, Fault indication output, DIN rail mountable, Device type: type 3 acc. to EN 61643-11:2013<br>class III acc. to IEC 61643-1:2011, Number of protected supply lines: 2. Device type: type 3 acc. to EN 61643-11:2013class III acc. to IEC 61643-1:2011. Number of protected supply lines: 2. Suitable components: protection module M-LB-2.30.T3.M. Nominal voltage: 24 V AC, 50 ... 60 Hz. Maximum continuous operating voltage: 30 V AC, 50 ... 60 Hz 30 V DC. Nominal load current: 25 A. Nominal discharge current (8/20 µs): 1 kA. Max. surge current (8/20 µs): 2 kA. Voltage protection level: max. 180 V (L-N) max. 630 V (L/N-PE). Reaction time: max. 25 ns (L-N) max. 100 ns (L/N-PE). Short-circuit-proof: 6 kA eff at max. mains-side overcurrent protection. Overcurrent protection: max. 25 A gL/gG (B 25 A) , mains-side. Connection: terminals 11, 12, 14. Output: volt-free change-over contact. Switch power: AC: 250 V / 0.5 A DC: 250 V/0.1 A; 125 V/0.2 A; 75 V/0.5 A; 24 V/0.5 A. Display elements: status display operating state (green)fault indication (red). Low voltage: . Directive 2014/35/EUEN 61643-11:2012: . Directive 2014/35/EU: EN 61643-11:2012. Degree of protection: IEC 60529:2013. Shock resistance: EN 60068-2:2010. Vibration resistance: EN 60068-2:2010. Installation conditions: . Mounting locationindoor: . Mounting location: indoor. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 5 ... 95 %. Degree of protection: IP20. Core cross section: - min. 0.5 mm2 solid/flexible- max. 4 mm2 stranded/2.5 mm2 flexible. Material: . Housingthermoplastic, color grey , UL 94 V-0: . Housing: thermoplastic, color grey , UL 94 V-0. Mass: approx. 120 g. Dimensions: 18 x 90 x 72 mm (0.7 x 3.6 x 2.8 inch) (W x H x D) , 1 TE acc. to DIN 43880. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: TÜV 22 ATEX 8932 X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 , EN IEC 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN IEC 60079-0:2018 , EN IEC 60079-7:2015+A1:2018. UL approval: E346845. IECEx approval: . IECEx certificateIECEx TUR 22.0082XIECEx markingEx ec IIC T4 Gc: . IECEx certificate: IECEx TUR 22.0082X. IECEx marking: Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
