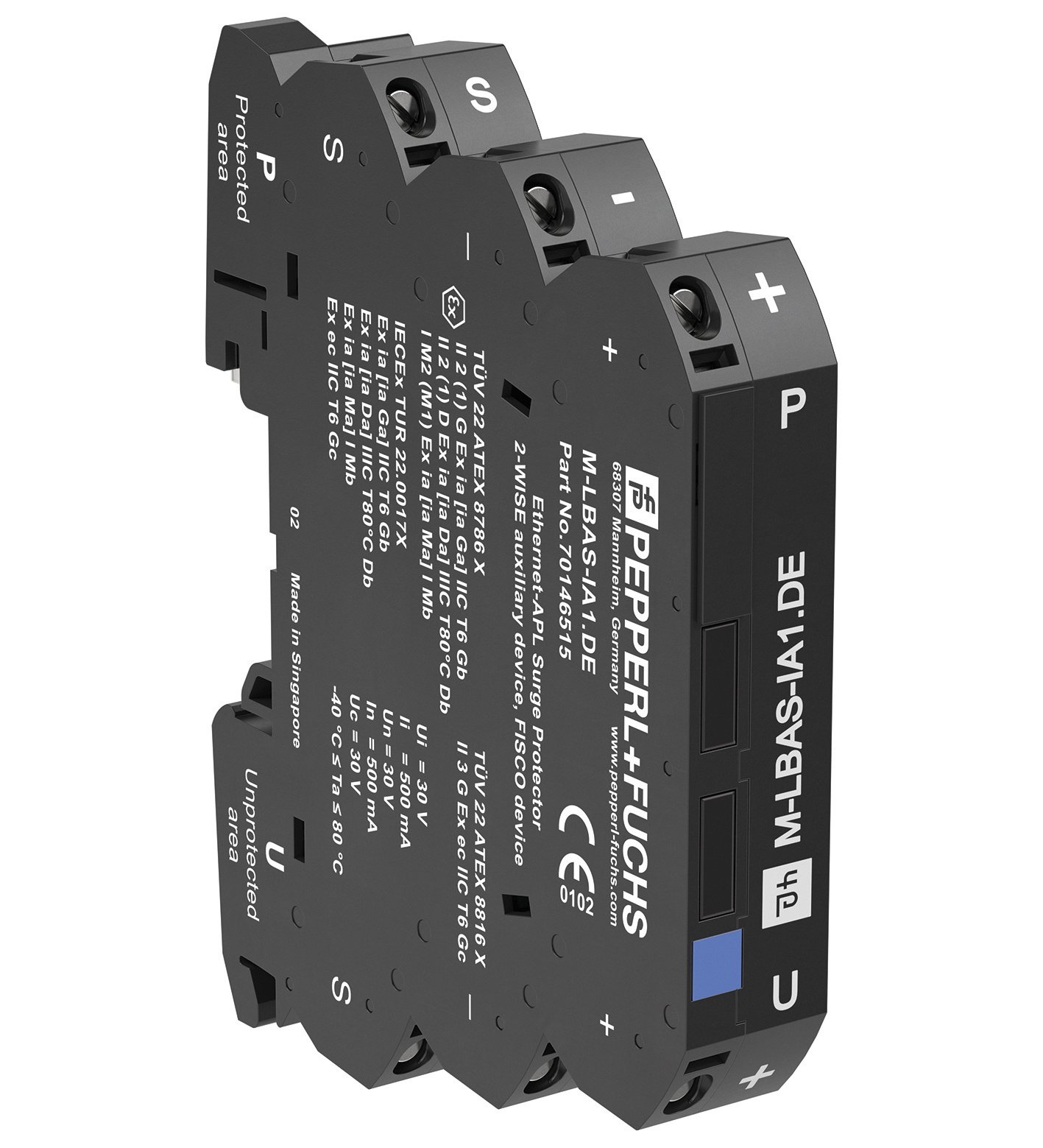

Surge Protector. FieldConnex®, Surge protector, Ethernet-APL, control cabinet installation, Ex ia, Ex ec, direct shield grounding, For Ethernet-APL spur ports, Intrinsically safe according to 2-WISE a...

Surge Protector. FieldConnex®, Surge protector, Ethernet-APL, control cabinet installation, Ex ia, Ex ec, direct shield grounding, For Ethernet-APL spur ports, Intrinsically safe according to 2-WISE and FISCO, Installation on DIN mounting rail in cabinet or field junction box, Direct grounding of the cable shield, IECEx approval, Europe, Function: Surge Protection, Design / Mounting: Cabinet installation. Design / Mounting: Cabinet installation. Installation in hazardous area: Zone 1. Interface type: Ethernet-APL auxiliary device. Rated voltage: 30 V. Rated current: 500 mA. Impulse rating: 2 kV/1 kA (category C1) per line 10 kV/5 kA (category C2) per line 1 kA (category D1) per line. Impulse discharge current (10/350 µs): 0.5 kA per line. Nominal discharge current (8/20 µs): . per line5 kAtotal10 kAShield10 kA: . per line: 5 kA. total: 10 kA. Shield: 10 kA. Max. surge current (8/20 µs): 10 kA overstressed fault mode 3 acc. to IEC 61643-21. Voltage protection level: . Line/Earthmax. 1500 V C1 , 1 kA per linemax. 2100 V C2 , 5 kA per linemax. 50 V C3 , 50 A per linemax. 1300 V B2 , 50 A per line: . Line/Earth: max. 1500 V C1 , 1 kA per linemax. 2100 V C2 , 5 kA per linemax. 50 V C3 , 50 A per linemax. 1300 V B2 , 50 A per line. Degree of protection: IEC/EN 60529. Climatic conditions: IEC 60721. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Surge protection: IEC 61643-21. Ethernet: Ethernet-APL ,IEEE 802.3 for 10BASE-T1L. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -50 ... 90 °C (-58 ... 194 °F). Relative humidity: ≤ 95 % non-condensing. Shock resistance: 15 g 11 ms. Vibration resistance: 1 g , 10 ... 150 Hz. Connection type: screw terminals. Core cross section: solid wire 0.5 ... 2.5 mm2 ,stranded wire 0.5 ... 1.5 mm2. Housing material: Polyamide PA 6.6. Degree of protection: IP20. Mass: 32 g. Mounting: DIN mounting rail. EU-type examination certificate: TÜV 22 ATEX 8786 X , TÜV 22 ATEX 8816 X. Marking2-WISE auxiliary device , FISCOMarking ll 3 G Ex ec llC T6 Gc ,[exsign] ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l MbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH: . Marking: 2-WISE auxiliary device , FISCO. Marking: ll 3 G Ex ec llC T6 Gc ,[exsign] ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb. Voltage: 30 V. Current: 500 mA. Internal capacitance: negligible 0 nF. Internal inductance: negligible 0 µH. Directive conformity: . Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-11:2012 ,IEC TS 60079-47:2021: . Directive 2014/34/EU: EN 60079-0:2018 ,EN 60079-11:2012 ,IEC TS 60079-47:2021. Supplementary information: . IECEx approval: IECEx TUR 22.0017X. Approved forEx ec llC T6 Gc ,Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb: . Approved for: Ex ec llC T6 Gc ,Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
