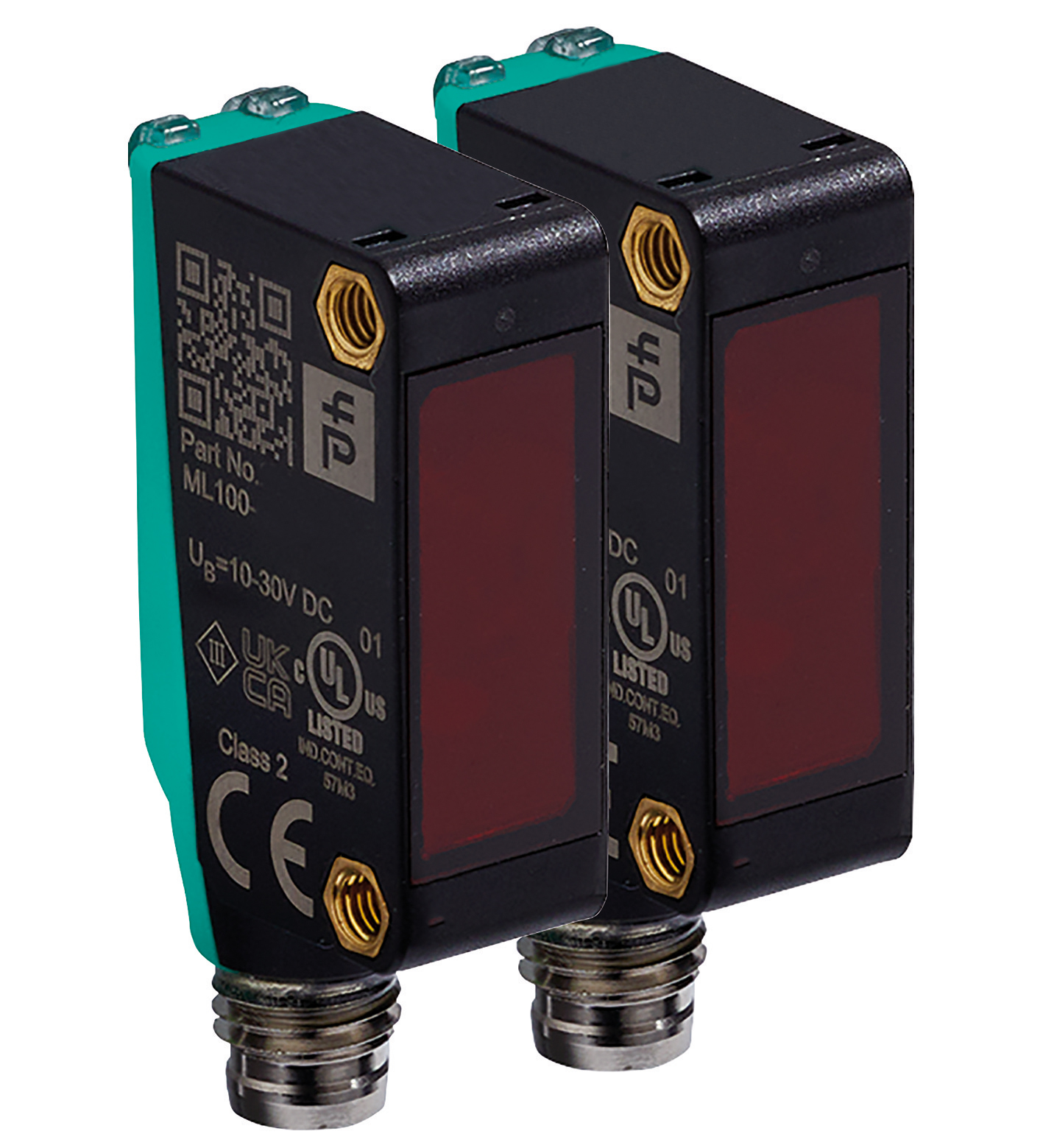

M100/MV100-IR/95/120/154

Thru-beam sensor (pair). Thru-beam sensor, 15 m detection range, infrared light, light/dark on, DC version, PNP output, sensitivity adjuster, M8 plug, Miniature design, Easy to use, Full metal thread...

Thru-beam sensor (pair). Thru-beam sensor, 15 m detection range, infrared light, light/dark on, DC version, PNP output, sensitivity adjuster, M8 plug, Miniature design, Easy to use, Full metal thread mounting, Highly visible LEDs for Power ON and switching state, Not sensitive to ambient light. Emitter: M100-IR/95. Receiver: MV100-IR/95/120/154. Effective detection range: 0 ... 15 m. Threshold detection range: 20 m. Light source: IRED. Light type: modulated infrared light. Diameter of the light spot: approx. 1.5 m at a distance of 20 m. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 15 mA Receiver: ≤ 8 mA. Switching type: The default setting is: /Q - pin2: light on Q - pin4: dark on. Signal output: 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 250 Hz. Response time: 2 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. UN/ECE Regulation No. 10 (E1): Type-approval number: 047350. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: M8 x 1 connector, 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 20 g (emitter and receiver). Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm

Brand	Pepperl Fuchs
Lifecycle status	active
