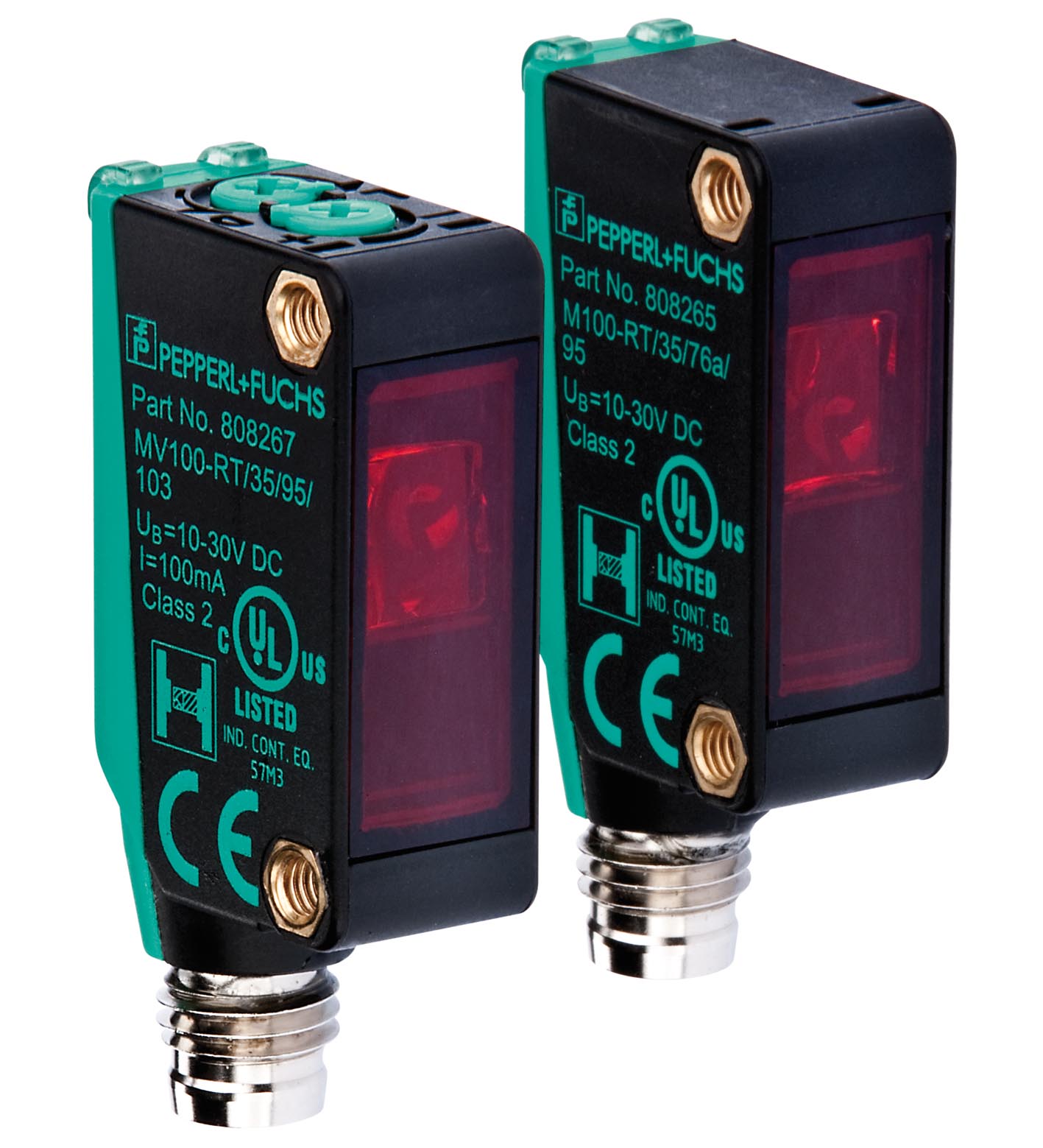

M100/MV100-RT-7870/98/103

Thru-beam sensor. Thru-beam sensor, 10 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, M8 plug, Miniature design, Easy to use, Very bright, highly visible li...

Thru-beam sensor. Thru-beam sensor, 10 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, M8 plug, Miniature design, Easy to use, Very bright, highly visible light spot, Full metal thread mounting, Highly visible LEDs for Power ON and switching state. Emitter: M100-RT-7870/98. Receiver: MV100-RT/98/103. Effective detection range: 0 ... 10 m. Threshold detection range: 15 m. Light source: LED. Light type: modulated visible red light. Diameter of the light spot: approx. 1 m at a distance of 15 m. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Control elements: sensitivity adjustment. Control elements: Light-on/dark-on changeover switch. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 15 mA Receiver: ≤ 8 mA. Test input: emitter deactivation at +UB. Switching type: The switching type of the sensor is adjustable. The default setting is: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012: . EMC Directive 2004/108/EC: EN 60947-5-2:2007+A1:2012. Standard conformity: . StandardsUL 60947-5-2: . Standards: UL 60947-5-2. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: M8 x 1 connector, 3-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 20 g (emitter and receiver). Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm

Brand	Pepperl Fuchs
Lifecycle status	active
