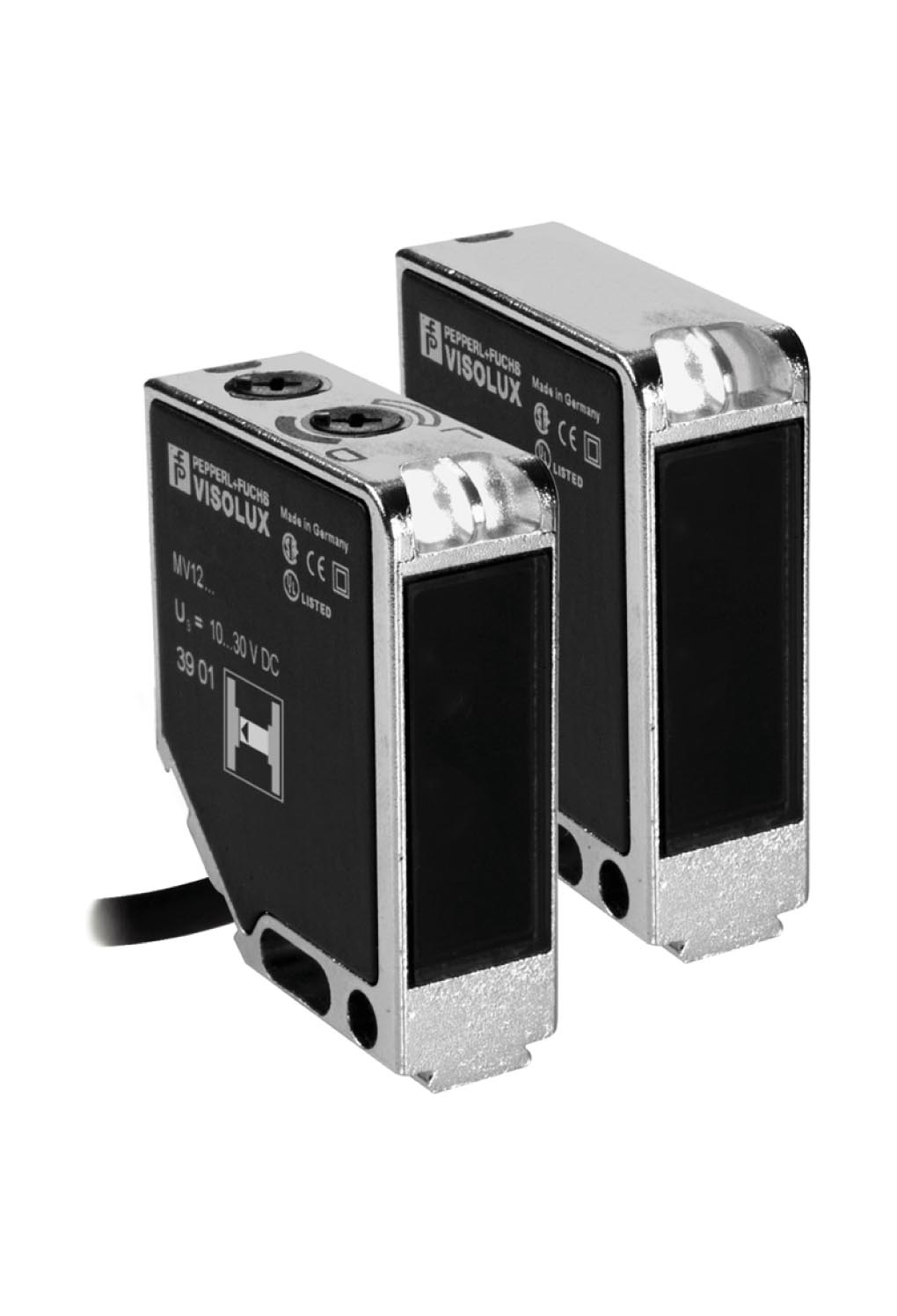

Thru-beam sensor. Robust thru-beam sensor for standard applications, small design, 25 m detection range, red light, emission frequency F1, light/dark on, push-pull output, stability alarm output, test...

Thru-beam sensor. Robust thru-beam sensor for standard applications, small design, 25 m detection range, red light, emission frequency F1, light/dark on, push-pull output, stability alarm output, test input, external Teach-In, fixed cable, Series of sensors in a widely used standard housing, Teach-in switch for setting the contrast detection levels, Automatic adjustment in case of soiling in contrast detection mode, High level of stability thanks to the metal housing frame. Emitter: M12-F1/76b/115. Receiver: MV12-F1/82b/115/128. Effective detection range: 0 ... 16 m. Threshold detection range: 25 m. Light source: 2 LED. Light type: modulated visible red light , 660 nm. Target size: min. 12 mm. Alignment aid: LED red in receiver. Diameter of the light spot: approx. 420 mm at a distance of 16 m. Opening angle: 1.5 °. Ambient light limit: . Continuous light40000 LuxModulated light5000 Lux: . Continuous light: 40000 Lux. Modulated light: 5000 Lux. MTTFd: 570 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Operation indicator: LED green, flashes in case of short-circuit. Function indicator: 2 LEDs yellow for switching state, operating reserve, Teach-In and contrast detection mode. Control elements: rotary switch for light/dark, 5-step switch for contrast recognition adjustment. Contrast detection levels: 15 % - clear glass bottles 25 % - plastic foils 40 % - colored glass or opaque materials adjustable by Teach-In key or external wire. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 35 mA Receiver: ≤ 45 mA. Test input: emitter deactivation at 0 V. Function input: Ext. Teach-In input (ET). Stability alarm output: 1 PNP, inactive when level falls below operating reserve after approx. 5 s.Immediately inactive if the beam is interrupted 4 times during the flashtime.. Switching type: light/dark on, switchable. Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 0.2 A. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. Protection class: II, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP67. Connection: 2500 mm fixed cable , PUR. Material: . HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PCOptical facePlastic pane: . Housing: Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC. Optical face: Plastic pane. Mass: 120 g (emitter and receiver). Dimensions: . Height49 mmWidth41.5 mmDepth15 mm: . Height: 49 mm. Width: 41.5 mm. Depth: 15 mm

Brand	Pepperl Fuchs
Lifecycle status	active
