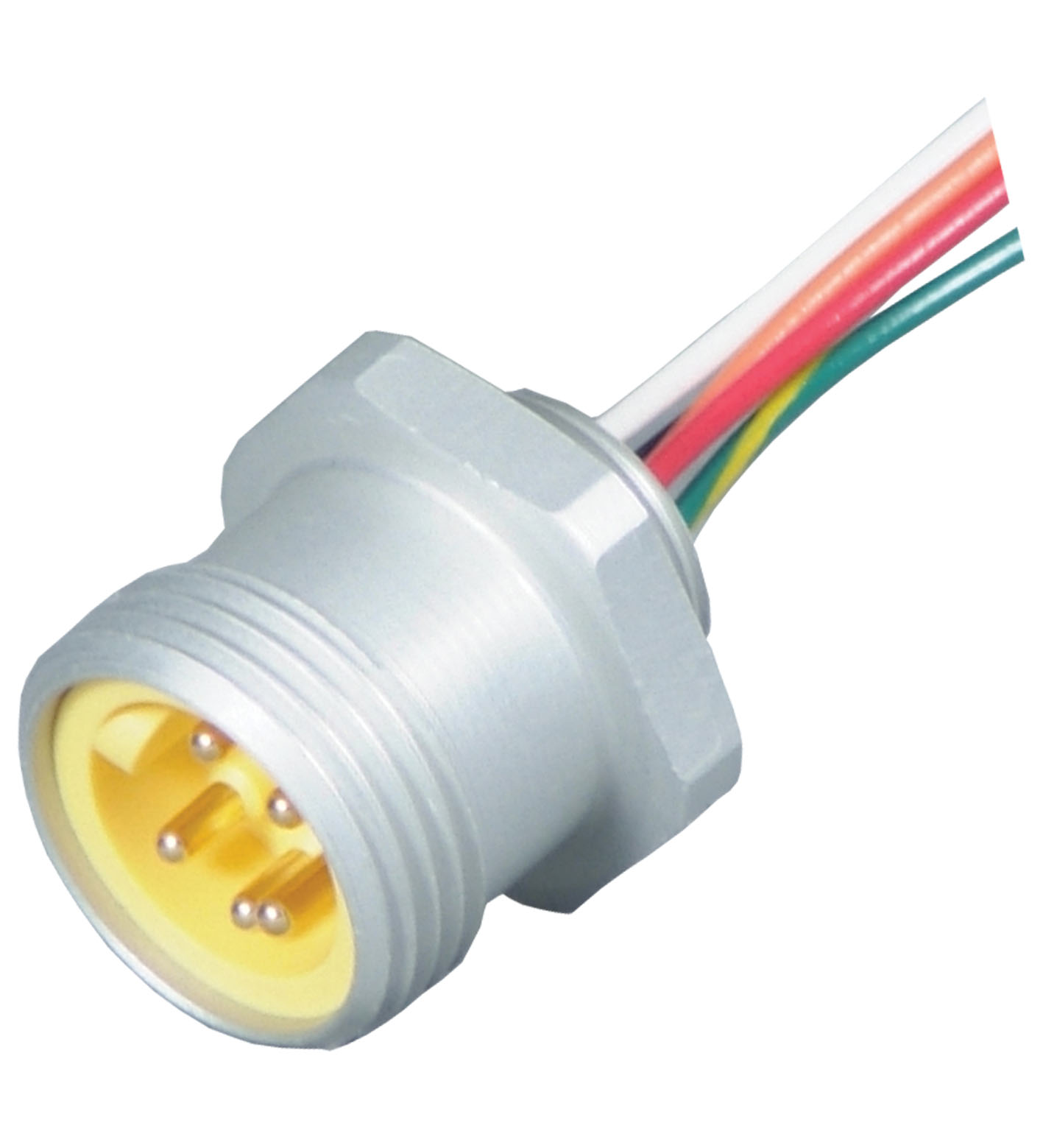

M16-V95-G-S-.15M

Male receptacle. Male receptacle, 7/8 inch UN2 /M16, 5-pin. Number of pins: 5. Construction type: straight. Connection 1: plug. Threading 1: 7/8 inch. Operating voltage: max. 300 V. Operating current:...

Male receptacle. Male receptacle, 7/8 inch UN2 /M16, 5-pin. Number of pins: 5. Construction type: straight. Connection 1: plug. Threading 1: 7/8 inch. Operating voltage: max. 300 V. Operating current: max. 4 A. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP69. Connection: 7/8 inch-16 UN 2 A. Material: clear anodized aluminum. Contactscopper alloy gold platedSleeve connectoryellow PVCSealO-ring: BUNA-N: . Contacts: copper alloy gold plated. Sleeve connector: yellow PVC. Seal: O-ring: BUNA-N. Cable: . Cores5 x 0.34 mm2 / 22 AWGLengthL0.15 m: . Cores: 5 x 0.34 mm2 / 22 AWG. Length: 0.15 m. Note: M16 x 1.5 installation thread

Brand	Pepperl Fuchs
Lifecycle status	active
