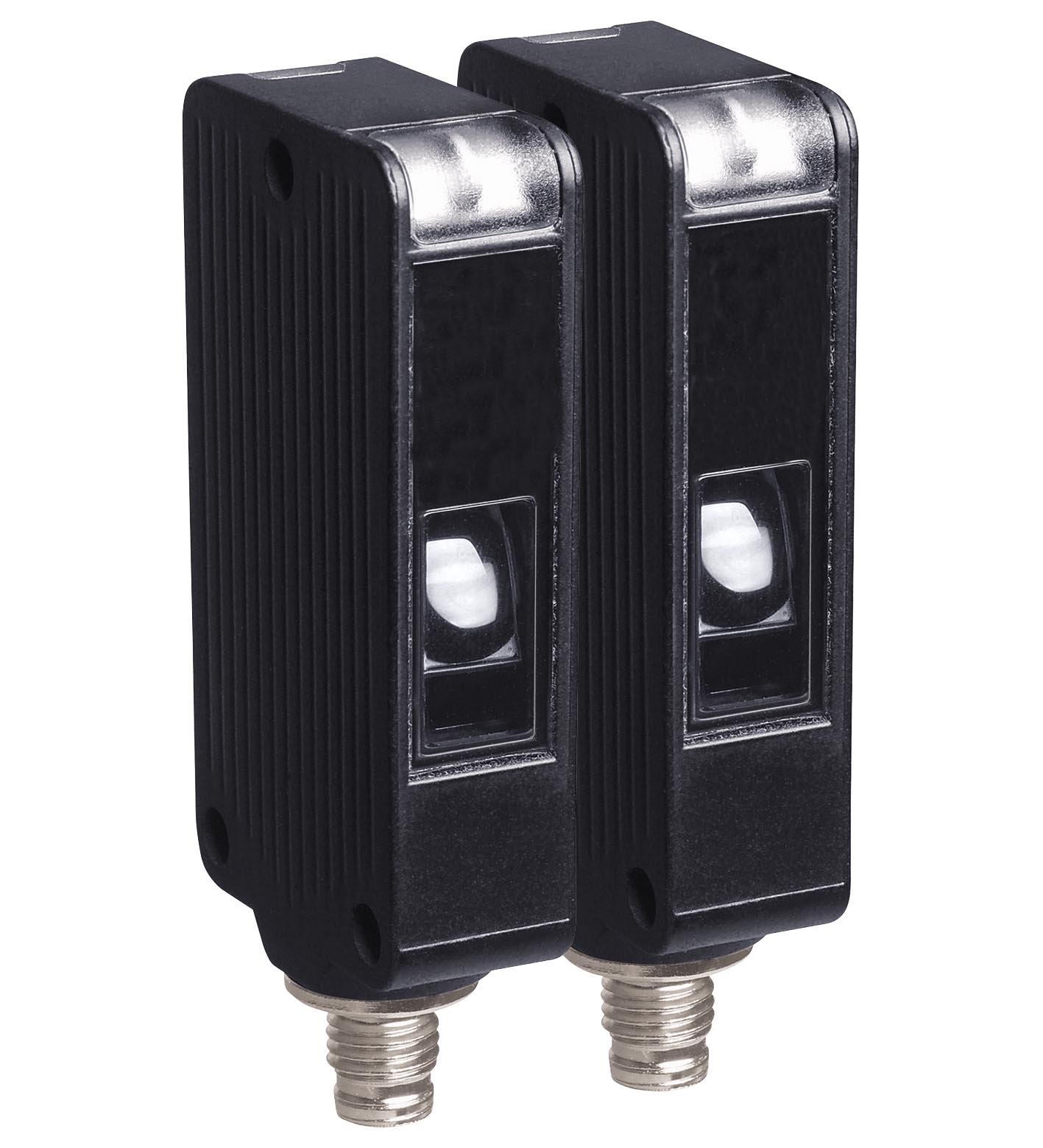

M41/MV41/25/76a/92/136
Thru-beam sensor. Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M12 plug, Rugge...
Thru-beam sensor. Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M12 plug, Rugged series in corrosion-resistant metal housing, Long sensor range with high power mode, Resistant against noise: reliable operation under all conditions, Clear and functional display concept for the operating modes, Aluminum housing with high quality Delta-Seal coated. Emitter: M41/76a/92. Receiver: MV41/25/92/136. Effective detection range: 0 ... 16 m. Threshold detection range: normal mode: 25 m High power mode: 35 m (Control input at UB+). Light source: normal mode: LED High power mode: LED+IRED. Light type: normal mode: modulated visible red light High power mode: Red and infrared, modulated light. Diameter of the light spot: approx. 500 mm at detection range 16 m. Opening angle: approx. 1.5 °. Optical face: frontal. Ambient light limit: 50000 Lux. MTTFd: 844 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Control elements: sensitivity adjustment (receiver). Operating voltage: 10 ... 30 V DC , class 2. Ripple: max. 10 %. No-load supply current: max. 30 mA. Test input: emitter deactivation at +UB (emitter). Control input: High power mode activation with +UB (emitter). Switching type: light-on. Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-2:2007: . EMC Directive 2004/108/EC: EN 60947-5-2:2007. Standard conformity: . Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007StandardsUL 508: . Product standard: EN 60947-5-2:2007 IEC 60947-5-2:2007. Standards: UL 508. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass paneConnectormetal: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Connector: metal. Mass: 50 g (device). Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
