MB-15/32GM25-E0-1.27M-4MOL

Magnetic field sensor. Switching function: Normally open (NO), Output type: NPN, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading:...

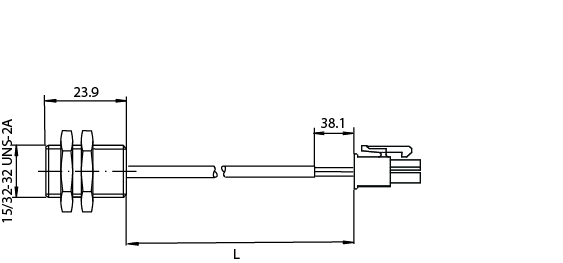

Magnetic field sensor. Switching function: Normally open (NO), Output type: NPN, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Operating voltage: 4.5 ... 24 V DC, Connection type: fixed cable with plug, Housing material: Aluminum, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NPN. Output polarity: DC. Output type: 3-wire. Operating voltage: 4.5 ... 24 V DC. Operating current: 20 mA max. No-load supply current: 10 mA max. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Connection type: fixed cable with plug. Housing material: Aluminum. Sensing face: Aluminum. Degree of protection: IP67. Connector: . Number of pins3Connection assemblyMolex connector 39-00-2040 Molex contact 39-00-0139: . Number of pins: 3. Connection assembly: Molex connector 39-00-2040 Molex contact 39-00-0139. Cable: . MaterialPVCColorGrayNumber of cores3Core cross section0.34 mm2LengthL1.27 m: . Material: PVC. Color: Gray. Number of cores: 3. Core cross section: 0.34 mm2. Length: 1.27 m. Dimensions: . Length23.9 mmDiameter11.9 mmThread size15/32" - 32: . Length: 23.9 mm. Diameter: 11.9 mm. Thread size: 15/32" - 32

Brand	Pepperl Fuchs
Lifecycle status	active
