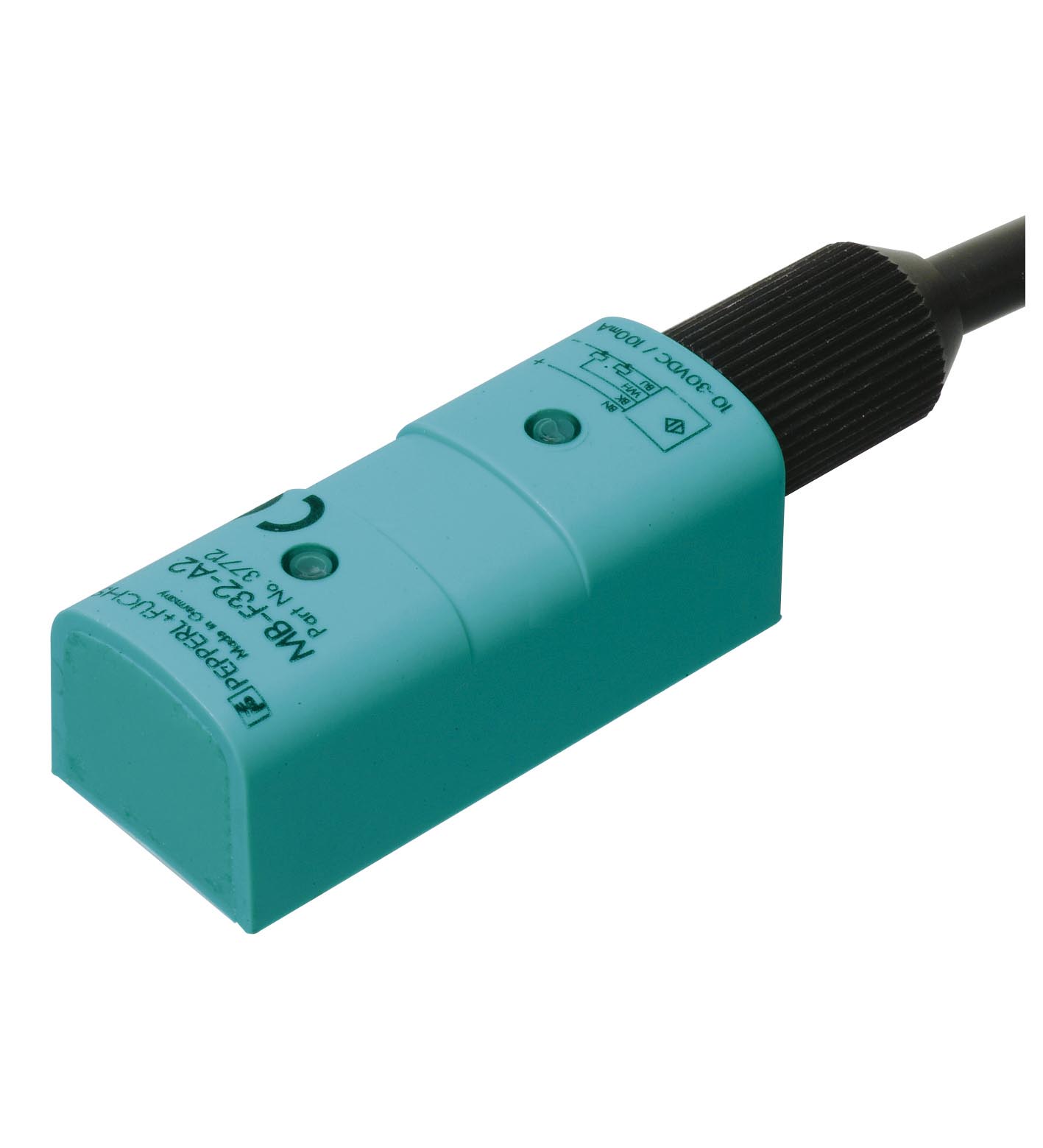

MB-F32-A2

Magnetic field sensor. Switching function: complementary, Output type: PNP, Installation: on the cylinder, Output polarity: DC, Output type: 4-wire, Construction type: Other, Series: Rectangular type,...

Magnetic field sensor. Switching function: complementary, Output type: PNP, Installation: on the cylinder, Output polarity: DC, Output type: 4-wire, Construction type: Other, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Polyamide (PA), Degree of protection: IP67. Switching function: complementary. Output type: PNP. Connection: Switching output 1 : black Switching output 2 : white. Installation: on the cylinder. Output polarity: DC. Switching range: typ. 50 mm. Output type: 4-wire. Operating voltage: 10 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 30 mA. MTTFd: 739 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: red: switching state output 1 yellow: switching state output 2. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: Polyamide (PA). Sensing face: Polyamide (PA). Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.2 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorblackNumber of cores4Core cross section0.5 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.2 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: black. Number of cores: 4. Core cross section: 0.5 mm2. Length: 2 m. Dimensions: . Height21 mmWidth18 mmLength50 mm: . Height: 21 mm. Width: 18 mm. Length: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
