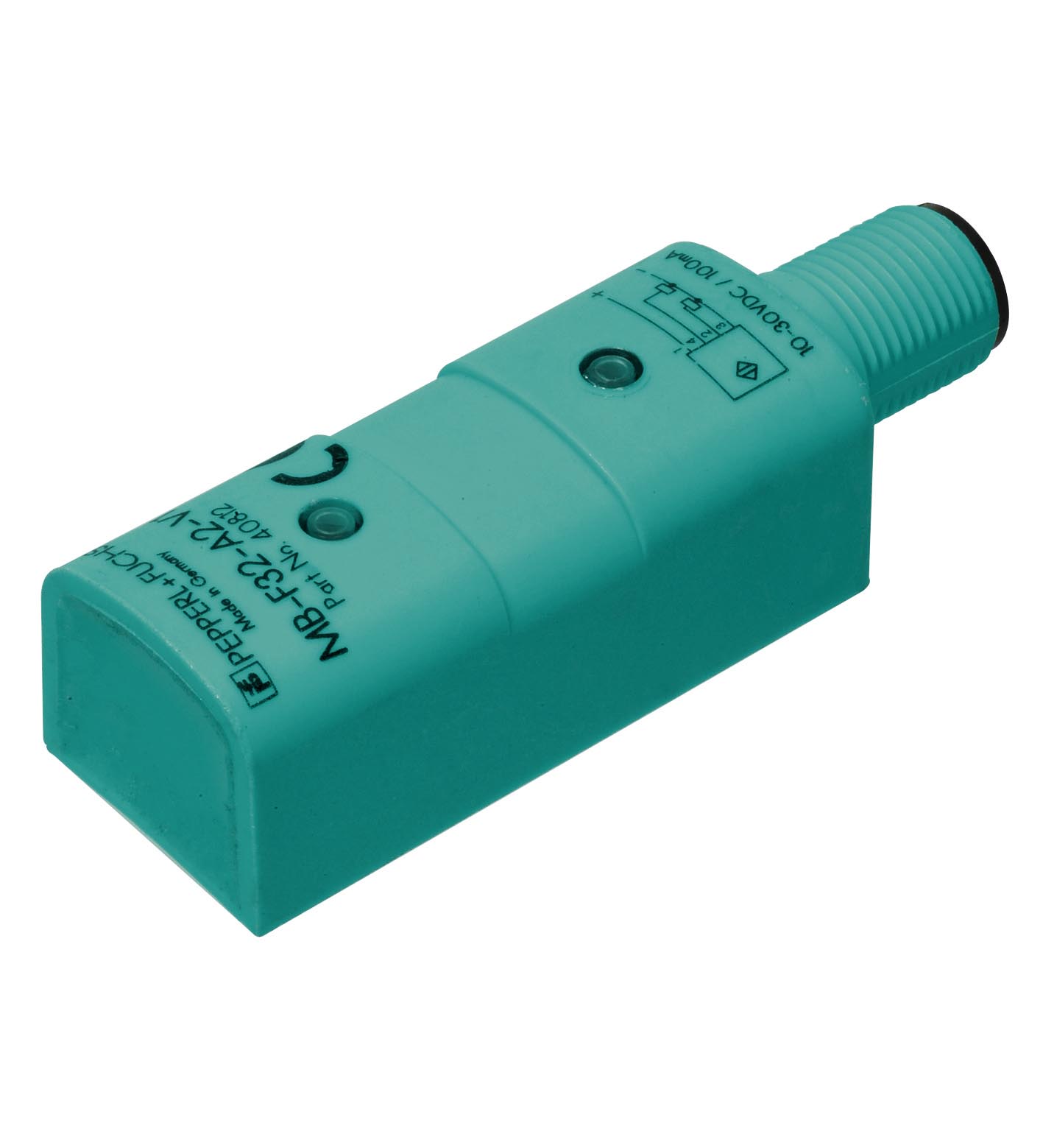

MB-F32-A2-V1

Magnetic field sensor. Switching function: complementary, Output type: PNP, Installation: on the cylinder, Output polarity: DC, Output type: 4-wire, Construction type: Other, Series: Rectangular type,...

Magnetic field sensor. Switching function: complementary, Output type: PNP, Installation: on the cylinder, Output polarity: DC, Output type: 4-wire, Construction type: Other, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Polyamide (PA), Degree of protection: IP67. Switching function: complementary. Output type: PNP. Connection: Switching output 1 : pin 4 Switching output 2 : pin 2. Installation: on the cylinder. Output polarity: DC. Switching range: typ. 50 mm. Output type: 4-wire. Operating voltage: 10 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 30 mA. MTTFd: 739 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: red: switching state output 1 yellow: switching state output 2. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Housing material: Polyamide (PA). Sensing face: Polyamide (PA). Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height21 mmWidth18 mmLength50 mm: . Height: 21 mm. Width: 18 mm. Length: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
