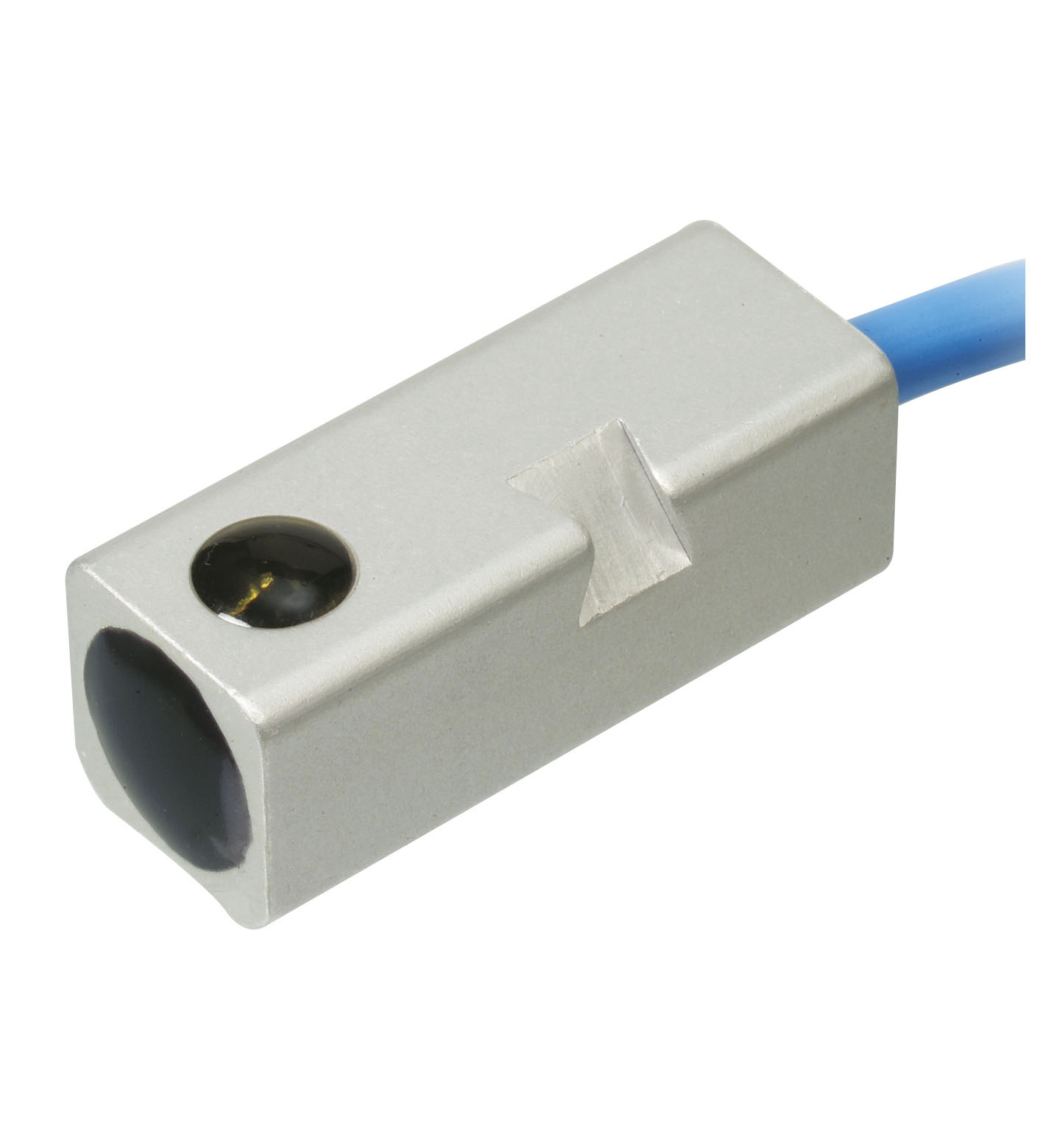

MB35-F12-1N

Magnetic field sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage:...

Magnetic field sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Equipment protection level Gb: IECEx TUN 20.0007, Equipment protection level Da: IECEx TUN 20.0007, Equipment protection level Gb: TÜV 20 ATEX 241336, Equipment protection level Da: TÜV 20 ATEX 241336, Connection type: cable, Housing material: anodized aluminum, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NAMUR. Rated operating distance: 35 mm. Installation: flush. Assured operating distance: 0 ... 35 mm. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Switching frequency: 0 ... 5000 Hz. Current consumption: . Magnet detected≥ 3 mAMagnet not detected≤ 1 mA: . Magnet detected: ≥ 3 mA. Magnet not detected: ≤ 1 mA. Switching state indicator: LED, yellow. MTTFd: 2781 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012: . NAMUR: EN 60947-5-6:2000. Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012. IECEx approval: . Equipment protection level GbIECEx TUN 20.0007Equipment protection level DaIECEx TUN 20.0007: . Equipment protection level Gb: IECEx TUN 20.0007. Equipment protection level Da: IECEx TUN 20.0007. ATEX approval: . Equipment protection level GbTÜV 20 ATEX 241336Equipment protection level DaTÜV 20 ATEX 241336: . Equipment protection level Gb: TÜV 20 ATEX 241336. Equipment protection level Da: TÜV 20 ATEX 241336. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: anodized aluminum. Sensing face: black plastic. Degree of protection: IP67. Cable: . MaterialPVCColorblueNumber of cores2Core cross section0.34 mm2LengthL2 m: . Material: PVC. Color: blue. Number of cores: 2. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height12 mmWidth12 mmLength30 mm: . Height: 12 mm. Width: 12 mm. Length: 30 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
