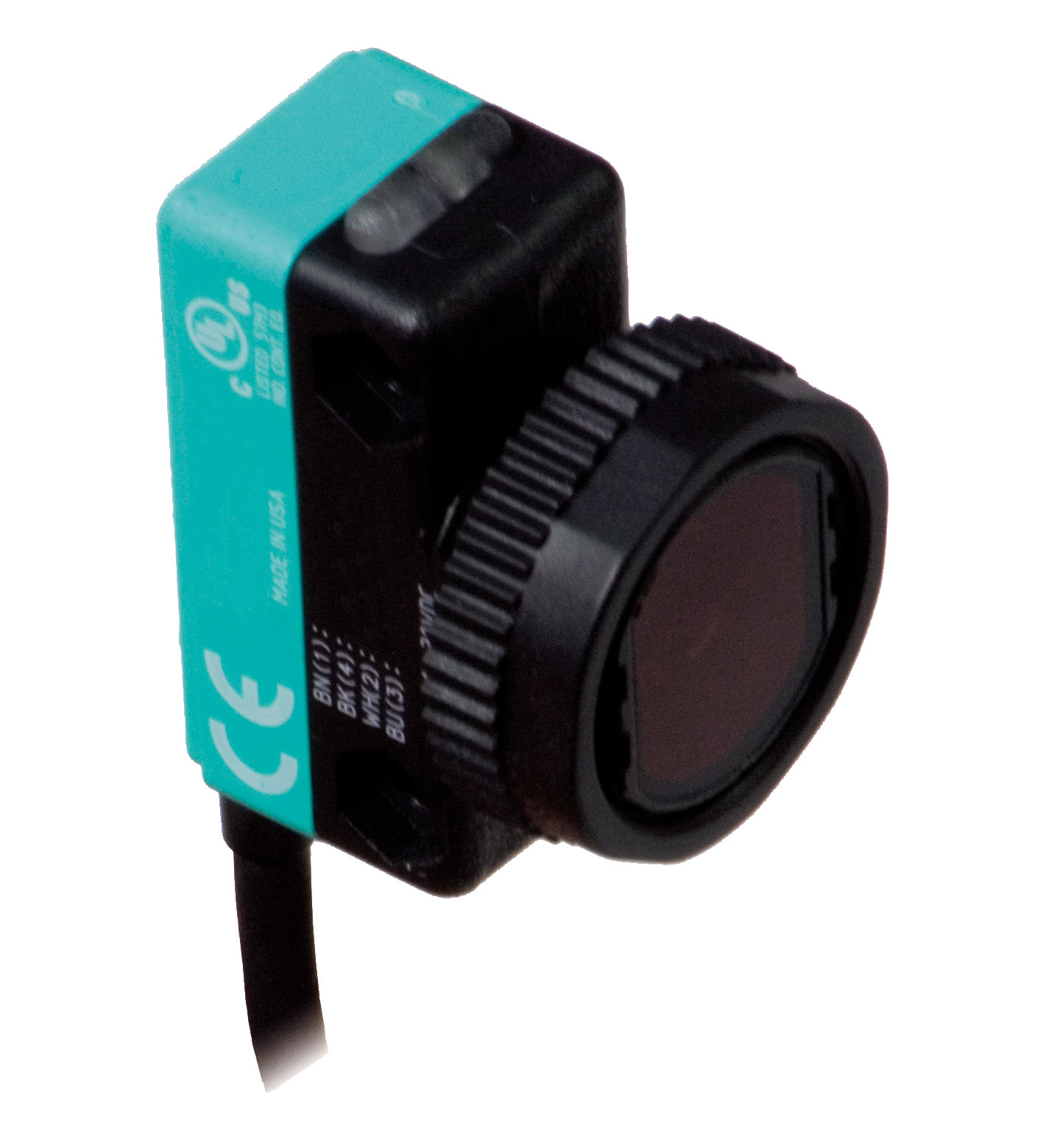

MD17/115

Thru-beam sensor emitter. Thru-beam sensor transmitter, small design, infrared light, 20 m range, cable, Emitter, Compact, versatile housing, 360° high visibility LEDs, 2 m cable length. Emitter: MD17...

Thru-beam sensor emitter. Thru-beam sensor transmitter, small design, infrared light, 20 m range, cable, Emitter, Compact, versatile housing, 360° high visibility LEDs, 2 m cable length. Emitter: MD17/115. Receiver: MV17/115. Effective detection range: 0 ... 15 m. Threshold detection range: 20 m. Reference target: receiver. Light source: IRED. Light type: Infrared LED. Ambient light limit: ≤ 10000 Lux. Operation indicator: LED green. Operating voltage: 10 ... 30 V DC , class 2. Ripple: max. 10 %. No-load supply current: < 25 mA. Operating current: . Time delay before availability: ≤ 200 ms. Product standard: EN 60947-5-2 IEC 60947-5-2. CE conformity: CE. UL approval: cULus. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingABSOptical faceAcrylic: . Housing: ABS. Optical face: Acrylic. Mass: 40 g. Dimensions: . Height34.5 mmWidth15 mmLength29.3 mm: . Height: 34.5 mm. Width: 15 mm. Length: 29.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
