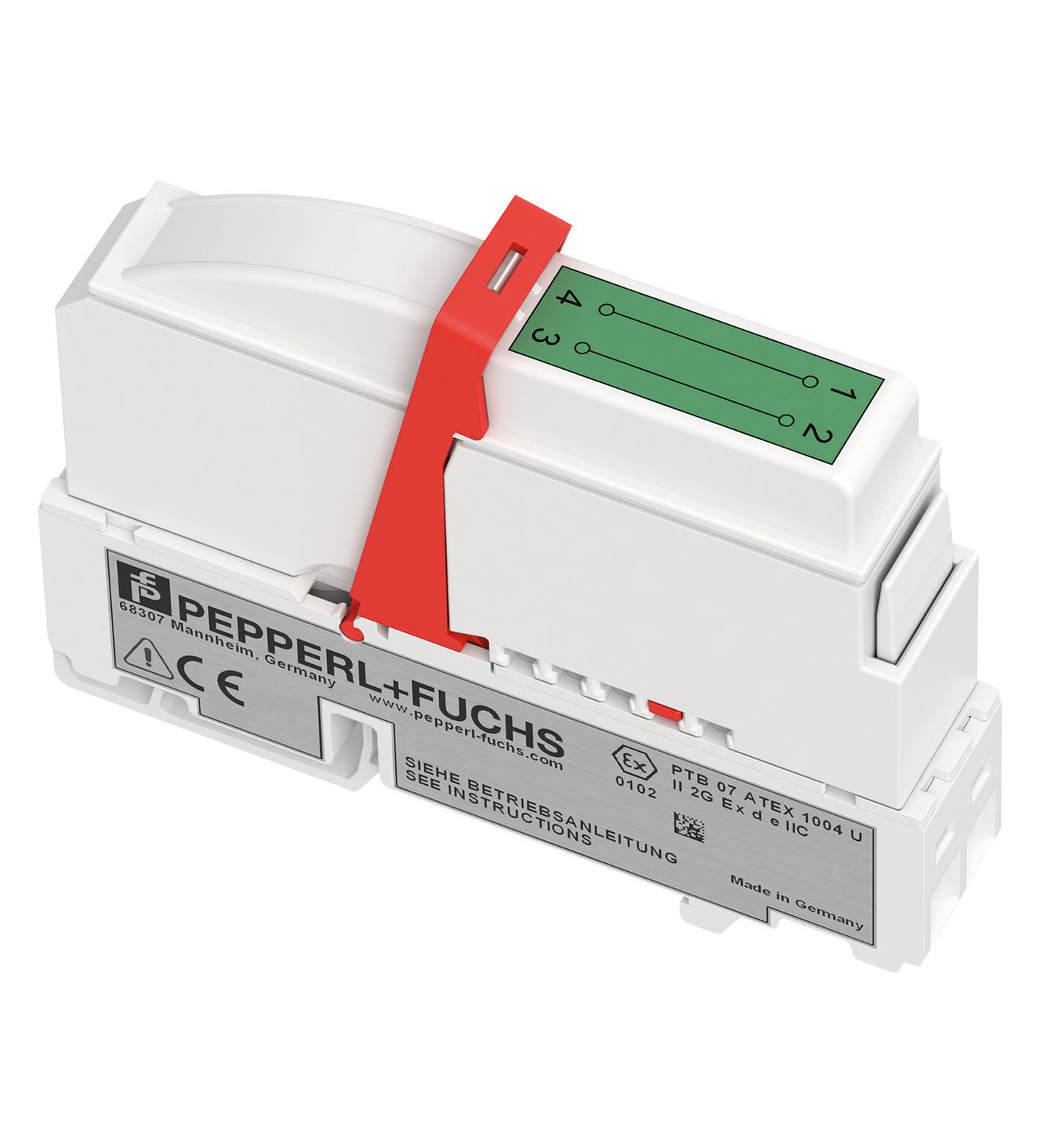

MFT-*

Multifunction Terminal. Suitable for fusing solenoids, alarm indicators, sounders etc, and diode decoupling of power supplies, Simple OR gate for zone 1 mounting, visible separation for field devices,...

Multifunction Terminal. Suitable for fusing solenoids, alarm indicators, sounders etc, and diode decoupling of power supplies, Simple OR gate for zone 1 mounting, visible separation for field devices, relay switches , Bus termination, Current limiting, DIN rail mounting, Maintenance without hot work permit, Wires can be disconnected during operation once the module has been removed <br> (parts under voltage remain covered), Up to SIL 3 acc. to IEC/EN 61508. Function: The specific device function can be found in the ordering information section.. Safety Integrity Level (SIL): SIL 3. Resistor: 1 x 1 Ω ... 22 MΩ, 0.5 W 2 x 1 Ω ... 22 MΩ, 0.5 W. Diode: 1 x I max. 1 A 2 x I max. 0.5 A. Fuse: 0.032 ... 1.5 A 1.5 ... 6.3 A Pre-arcing time/current characteristic: time-lag T. Nominal voltagemax. 250 V AC max. 30 V DC: . Nominal voltage: max. 250 V AC max. 30 V DC. Relay: . Control24 V , approx. 5 ... 8.5 mAContact loadingAC max. 250 V , max. 1 A DC max. 30 V , max. 1 AContact resistance0.1 Ω at 6 V, 1 ASwitching operations NO contact3 x 104Switching operations NC contact1 x 104: . Control: 24 V , approx. 5 ... 8.5 mA. Contact loading: AC max. 250 V , max. 1 A DC max. 30 V , max. 1 A. Contact resistance: 0.1 Ω at 6 V, 1 A. Switching operations NO contact: 3 x 104. Switching operations NC contact: 1 x 104. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Degree of protection: IEC 60529:2001. Ambient temperature: -55 ... 55 °C (-67 ... 131 °F) (Im = 1.5 ... 6.3 A) -55 ... 70 °C (-67 ... 158 °F) (Im = 0.032 ... 1.5 A) The specific ambient temperature can be found in the ordering information section.. Core cross section: 0.5 ... 2.5 mm2. Degree of protection: IP20 , IP30 when plug-in module is plugged in. Mass: approx. 115 g , depending on model. Dimensions: 93 x 17.5 x 79 mm (l x w x h). Height79 mmWidth17.5 mmLength93 mm: . Height: 79 mm. Width: 17.5 mm. Length: 93 mm. Tightening torque: 0.5 ... 1 Nm. EU-type examination certificate: PTB 07 ATEX 1004 U. Marking II 2 G Ex d e IIC: . Marking: II 2 G Ex d e IIC. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014 , EN 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014 , EN 60079-7:2015+A1:2018. IECEx approval: . IECEx certificateIECEx BKI 08.0008UIECEx markingEx d e IIC Gb: . IECEx certificate: IECEx BKI 08.0008U. IECEx marking: Ex d e IIC Gb. Marine approval: . DNV GL MarineTAA0000034: . DNV GL Marine: TAA0000034. Ordering information: Customer-specific values are available in the E96 series.Minimum order quantity 50 pieces.. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
