Pepperl Fuchs

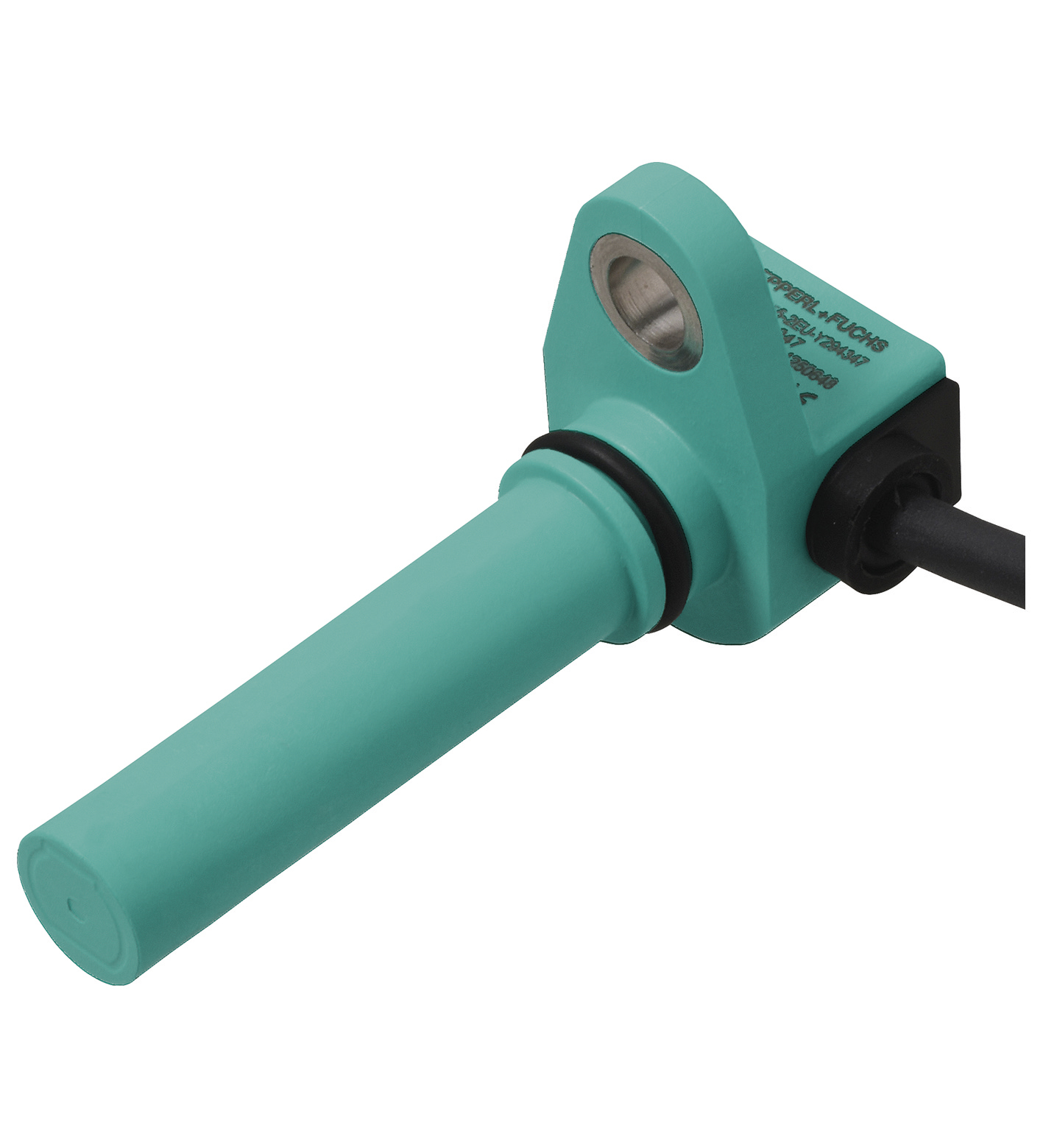

MHS2-12M55-2EU-0,3M

Hall-effect sensor. Output type: Digital voltage output, Connection type: cable, Housing material: PBT + GF, Degree of protection: IP67. Output type: Digital voltage output. Assured operating distance: 0.3 ... 2 mm. Operating voltage: 4.75 ... 5.25 V. Switching frequency: 10 kHz. Operating current: 0 ... 25 mA. MTTFd: 882.2 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Designation: A. Output type: Digital voltage output output of the velocity. Output value: The following output values are only achieved with a load resistance of ≥ 500 Ω high level 3.8 ... 4.75 V low level 0.4 ... 2.6 V. Designation: B. Output type: Digital voltage output output of the direction of rotation. Output value: The following output values are only achieved with a load resistance of ≥ 500 Ω direction of rotation cw 3.8 ... 4.75 V direction of rotation ccw 0.4 ... 2.6 V. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 5 V DC Further UL information see section "Additional Information". Ambient temperature: -40 ... 125 °C (-40 ... 257 °F). Connection type: cable. Housing material: PBT + GF. Sensing face: PBT + GF. Degree of protection: IP67. Cable: . Cable diameter4.8 mm ± 0.15 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores4Core cross section0.5 mm2LengthL300 mm: . Cable diameter: 4.8 mm ± 0.15 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 4. Core cross section: 0.5 mm2. Length: 300 mm. Tightening torque, fastening screws: ≤ 10 Nm. Tightening torque, housing screws: 10 Nm. Supplementary information: Specifications relating to disk 61_01-105_04_72-03 ST12 ferromagnetic steel

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
