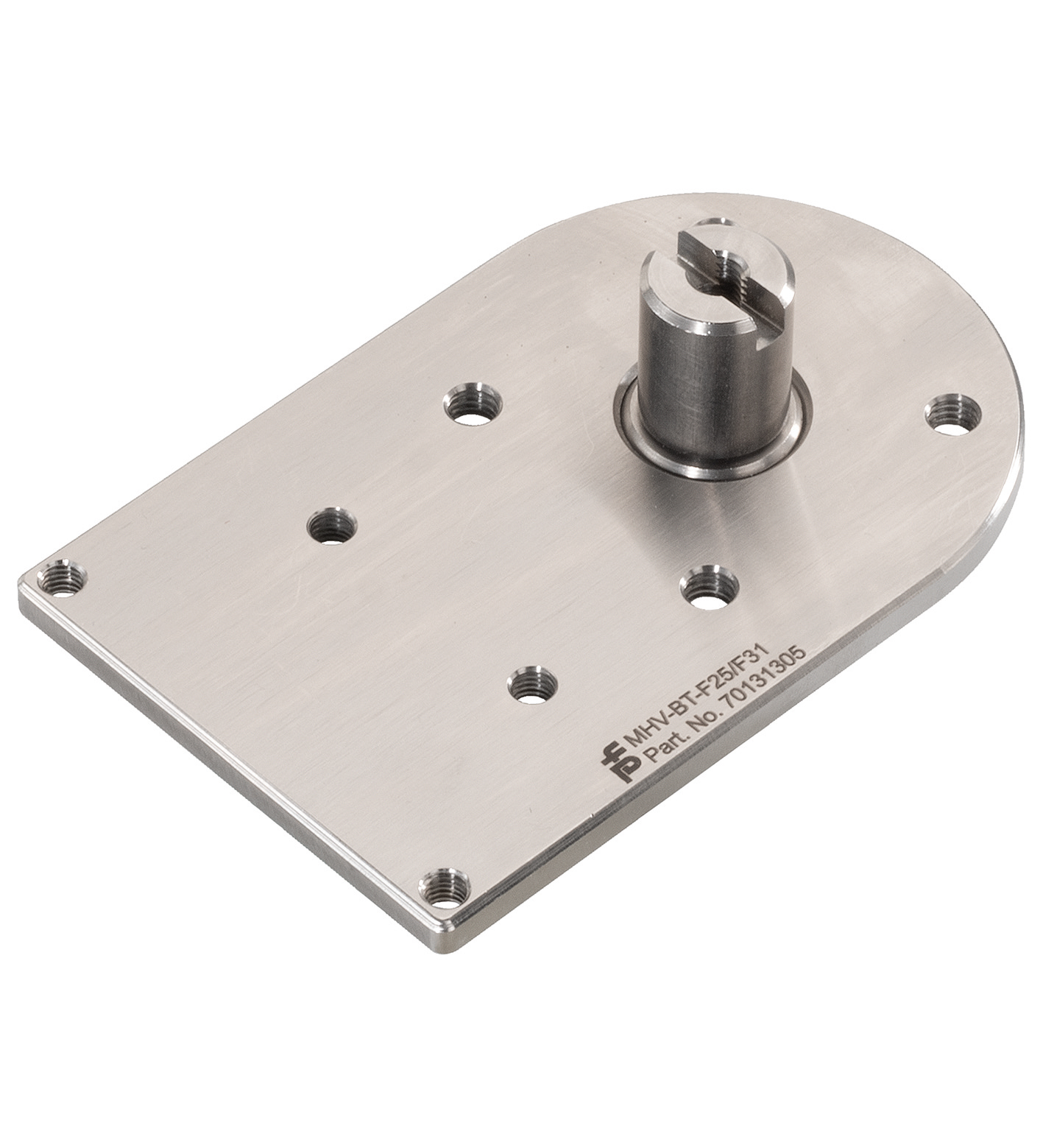

MHV-BT-F25/F31

Adapter plate. Suitable sensors and: Dual sensors, -F25 series with actuator BT32... Dual sensors, -F25K series with actuator BT32... Dual sensors, -F31 series with actuator BT65.... Standards: VDI /...

Adapter plate. Suitable sensors and: Dual sensors, -F25 series with actuator BT32... Dual sensors, -F25K series with actuator BT32... Dual sensors, -F31 series with actuator BT65.... Standards: VDI / VDE 3845 DIN EN ISO 5211. Shaft diameter: 16 mm. Shaft height: 20 mm. Mounting hole pattern: sensor: 30 x 80 mm, M5 screw mounting bracket: 4 x 50 mm, M6 screw. Material: stainless steel 1.4301 / AISI 304 for plates and sheet metal bending parts Stainless steel 1.4305 / AISI 303 for shaft. Mounting materialsstainless steel socket cap head screws 4 x M6 x 8 mm: . Mounting materials: stainless steel socket cap head screws 4 x M6 x 8 mm. Mass: 300 g. Dimensions: . Height53.5 mmWidth65 mmLength101.5 mm: . Height: 53.5 mm. Width: 65 mm. Length: 101.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
