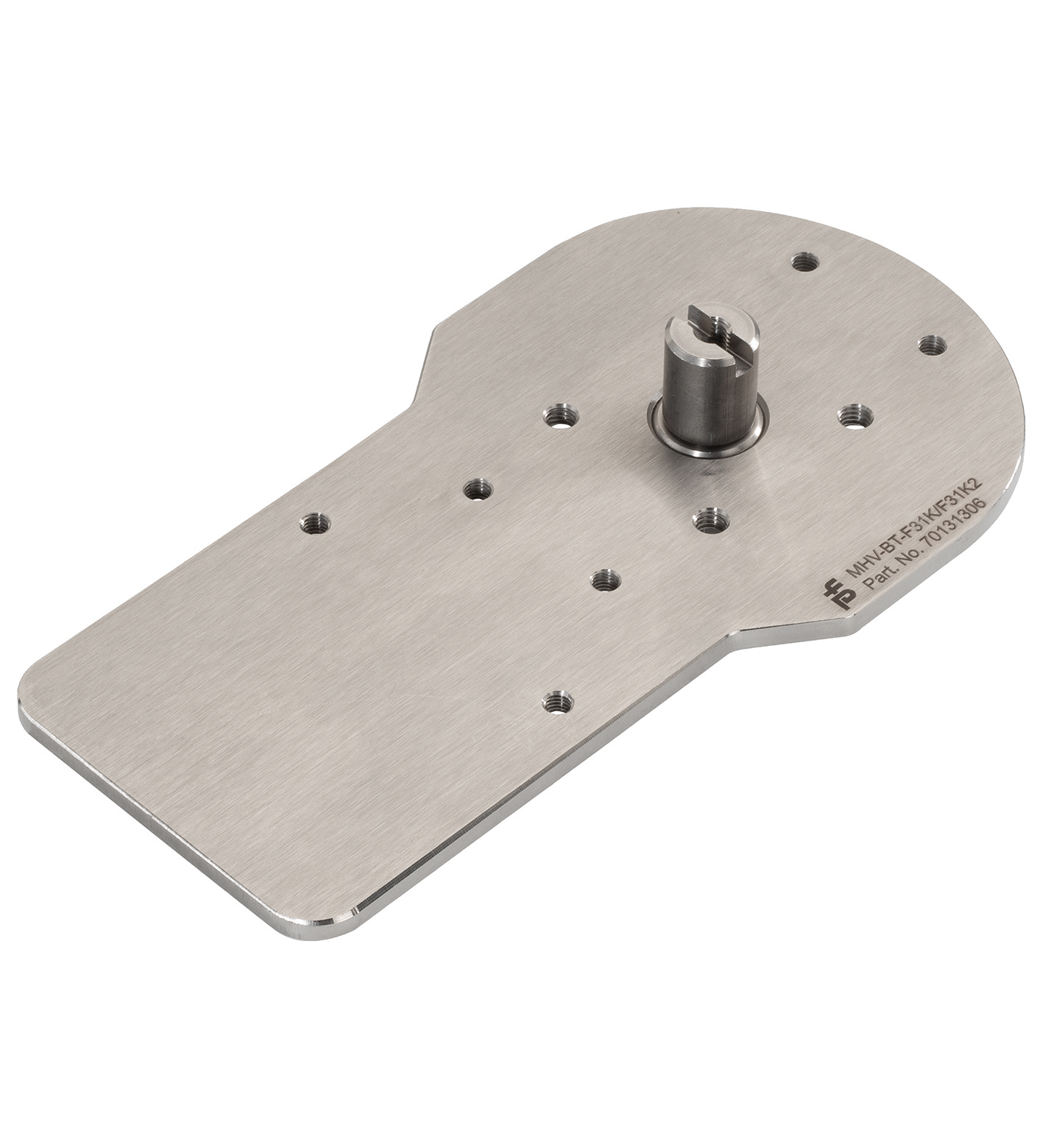

MHV-BT-F31K/F31K2

Adapter plate. Suitable sensors and: Dual sensors, -F31K series with actuator BT65... Dual sensors, -F31K2 series with actuator BT65.... Standards: VDI / VDE 3845 DIN EN ISO 5211. Shaft diameter: 16 m...

Adapter plate. Suitable sensors and: Dual sensors, -F31K series with actuator BT65... Dual sensors, -F31K2 series with actuator BT65.... Standards: VDI / VDE 3845 DIN EN ISO 5211. Shaft diameter: 16 mm. Shaft height: 20 mm. Mounting hole pattern: sensor: 30 x 80 mm, M5 screw mounting bracket: 4 x 50 mm, M6 screw. Material: stainless steel 1.4301 / AISI 304 for plates and sheet metal bending parts Stainless steel 1.4305 / AISI 303 for shaft. Mounting materialsstainless steel socket cap head screws 4 x M6 x 8 mm: . Mounting materials: stainless steel socket cap head screws 4 x M6 x 8 mm. Mass: 636 g. Dimensions: . Height53.5 mmWidth99 mmLength182 mm: . Height: 53.5 mm. Width: 99 mm. Length: 182 mm

Brand	Pepperl Fuchs
Lifecycle status	active
