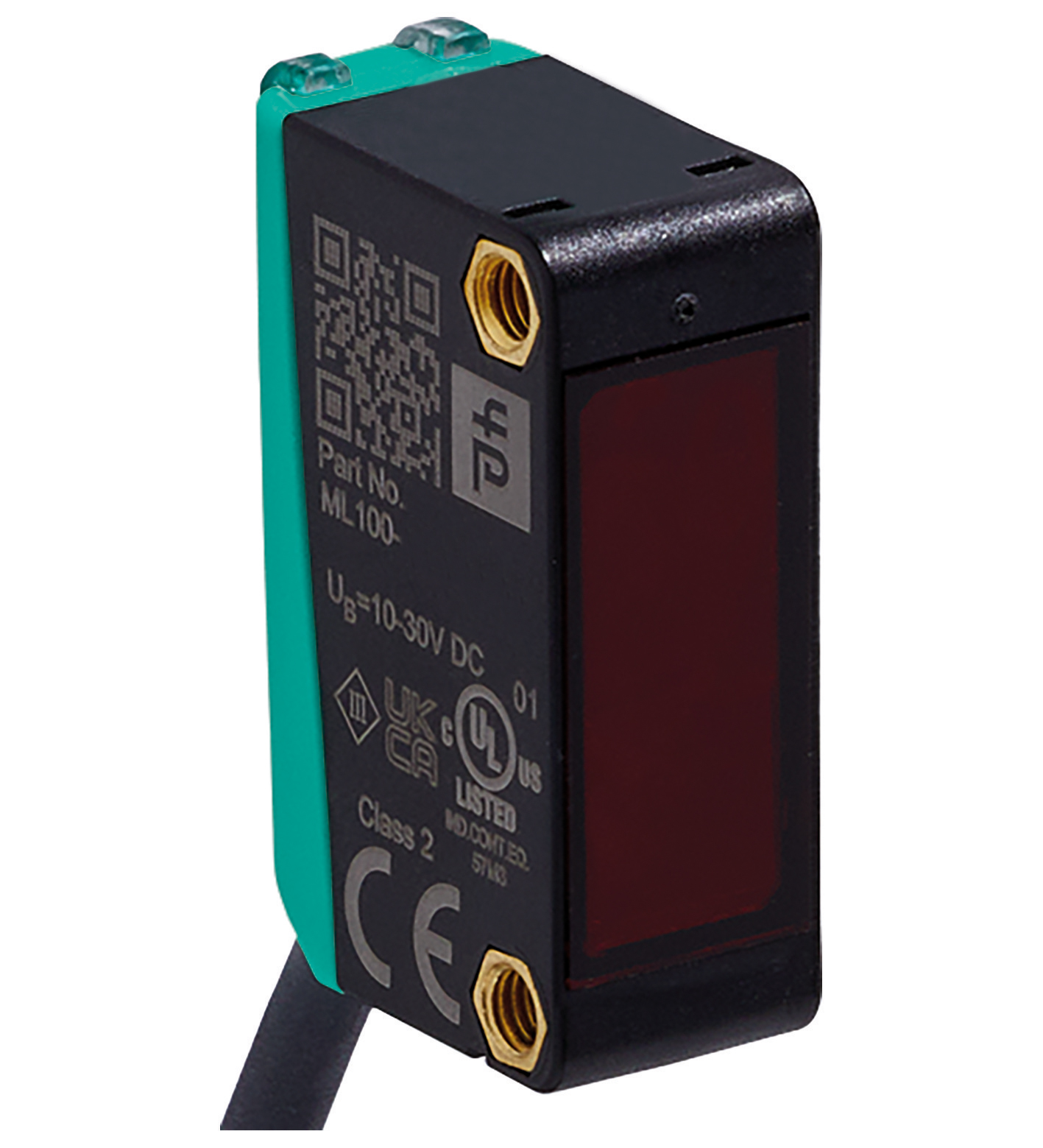

ML100-55-3704

Retroreflective sensor. Retroreflective sensor with polarization filter, plastic housing, 5 m detection range, red light, sensitivity adjuster, light/dark on, DC version, PNP output, fixed cable with...

Retroreflective sensor. Retroreflective sensor with polarization filter, plastic housing, 5 m detection range, red light, sensitivity adjuster, light/dark on, DC version, PNP output, fixed cable with Stocko plug, No controls, Miniature design, Easy to use, Clearly visible LEDs for Power ON, switching state and weak signal indication, Very bright, highly visible light spot. Effective detection range: 0 ... 5 m. Reflector distance: 0.02 ... 5 m. Threshold detection range: 7 m. Reference target: H50 reflector. Light source: LED. Light type: modulated visible red light. Polarization filter: yes. Diameter of the light spot: approx. 500 mm at a distance of 7 m. Opening angle: approx. 4 °. Optical face: frontal. Ambient light limit: EN 60947-5-2:2007+A1:2012. MTTFd: 860 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 20 mA. Switching type: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. UL approval: cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: fixed cable 265 mm with Stocko plug , 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 20 g. Tightening torque, fastening screws: 0.6 Nm. Dimensions: . Height31 mmWidth11 mmDepth20 mm: . Height: 31 mm. Width: 11 mm. Depth: 20 mm. Cable length: 265 mm

Brand	Pepperl Fuchs
Lifecycle status	active
