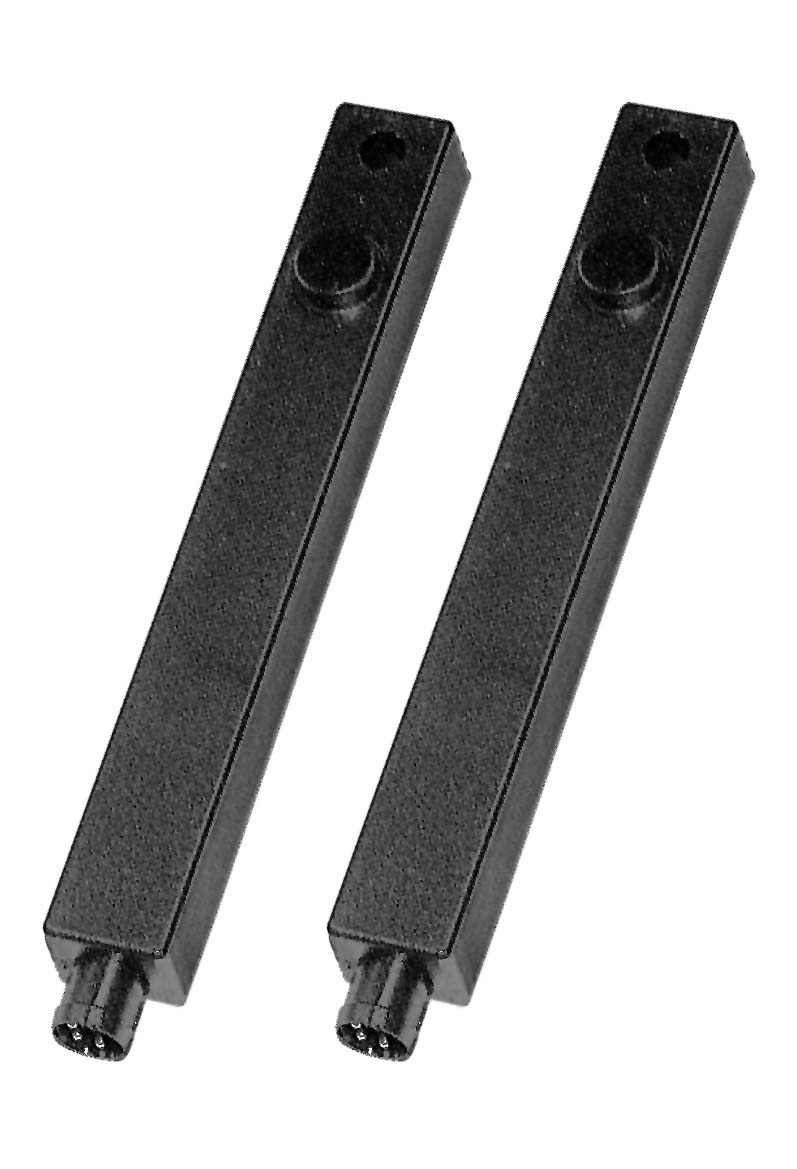

ML29-P/59/103/143
Thru-beam sensor. Single-beam monitoring with extremely narrow sensor, Integrated circuit, Test, Simple installation - Plug & Play, Ideal for installation in door profiles or frames, Construction type...
Thru-beam sensor. Single-beam monitoring with extremely narrow sensor, Integrated circuit, Test, Simple installation - Plug & Play, Ideal for installation in door profiles or frames, Construction type(S2): Rectangular type, Test input, Light source: IRED, Light type: modulated infrared light, Operating voltage: 11 ... 30 V DC, Test input: Test: Transmitter switches off at +UB ≤ 5 V DC, Switching type: dark-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Emitter: ML29-T/143. Receiver: ML29-R/59/103/143. Effective detection range: 0 ... 6 m. Threshold detection range: 8.5 m. Light source: IRED. Light type: modulated infrared light. Opening angle: +/- 8 °. Optical face: lateral. Ambient light limit: 40000 Lux. MTTFd: 880 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red in receiver : lights up when receiving the light beam. Operating voltage: 11 ... 30 V DC. No-load supply current: Emitter: ≤ 25 mA Receiver: ≤ 10 mA. Test input: Test: Transmitter switches off at +UB ≤ 5 V DC. Switching type: dark-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 0.1 A. Switching frequency: 100 Hz. Response time: 5 ms. Product standard: EN 60947-5-2. Standard conformity: . StandardsEN 61000-6-2, EN 61000-6-3: . Standards: EN 61000-6-2, EN 61000-6-3. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Relative humidity: 90 % , noncondensing. Degree of protection: IP65. Connection: 4-pin plastic connector, 6.5 mm diameter. Material: . HousingPMMA , blackOptical facePlastic pane: . Housing: PMMA , black. Optical face: Plastic pane. Mass: per device 120 g. Dimensions: . Height85.2 mmWidth11.6 mmDepth9.2 mm: . Height: 85.2 mm. Width: 11.6 mm. Depth: 9.2 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
