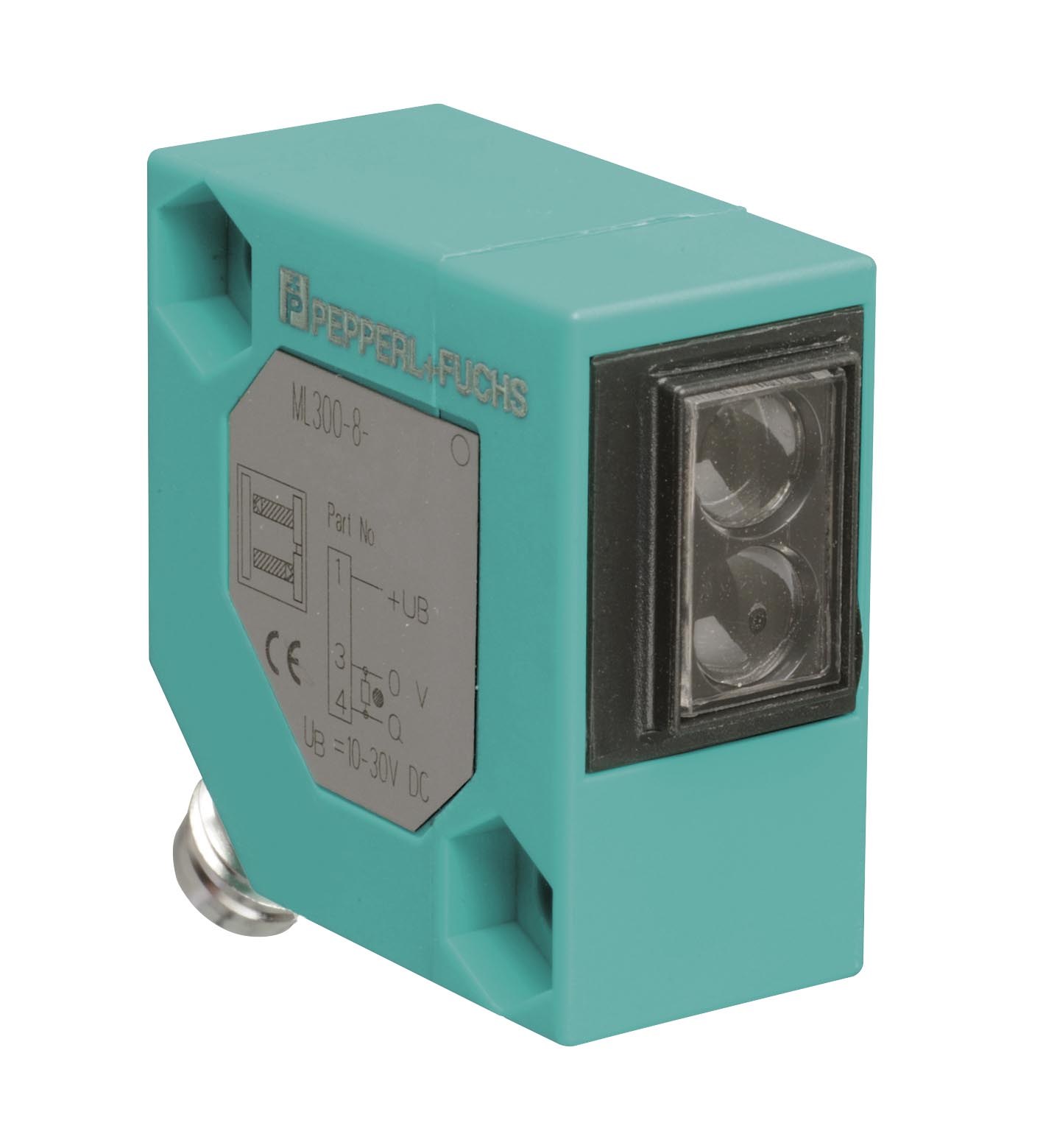

ML300-8-600-RT/25/98/103

Diffuse mode sensor. Diffuse mode sensor, miniature design, 600 mm adjustable detection range, red light, light on, PNP output, M8 plug, Miniature design, Easy to use, Visible red light, 45° connector...

Diffuse mode sensor. Diffuse mode sensor, miniature design, 600 mm adjustable detection range, red light, light on, PNP output, M8 plug, Miniature design, Easy to use, Visible red light, 45° connector. Detection range: 0 ... 600 mm , adjustable. Adjustment range: 150 ... 600 mm. Reference target: standard white 200 mm x 200 mm. Light source: LED. Light type: modulated visible red light , 660 nm. Diameter of the light spot: approx. 130 mm at a distance of 600 mm. Opening angle: approx. 13 °. Ambient light limit: . Continuous light10000 LuxModulated light5000 Lux: . Continuous light: 10000 Lux. Modulated light: 5000 Lux. Function indicator: LED yellow: lights up when output is active LED green: Sufficient operating reserve. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 35 mA. Switching type: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 0.1 A. Voltage drop: ≤ 2 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axesVibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes: . Shock and impact resistance: EN 60947-5-7 30 g, 11 ms, all axes. Vibration resistance: EN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Degree of protection: IP65. Connection: M8 x 1 connector, 3-pin. Material: . HousingABSOptical faceplasticConnectormetal: . Housing: ABS. Optical face: plastic. Connector: metal. Mass: 18 g. Dimensions: . Height30 mmWidth30 mmDepth15 mm: . Height: 30 mm. Width: 30 mm. Depth: 15 mm

Brand	Pepperl Fuchs
Lifecycle status	active
