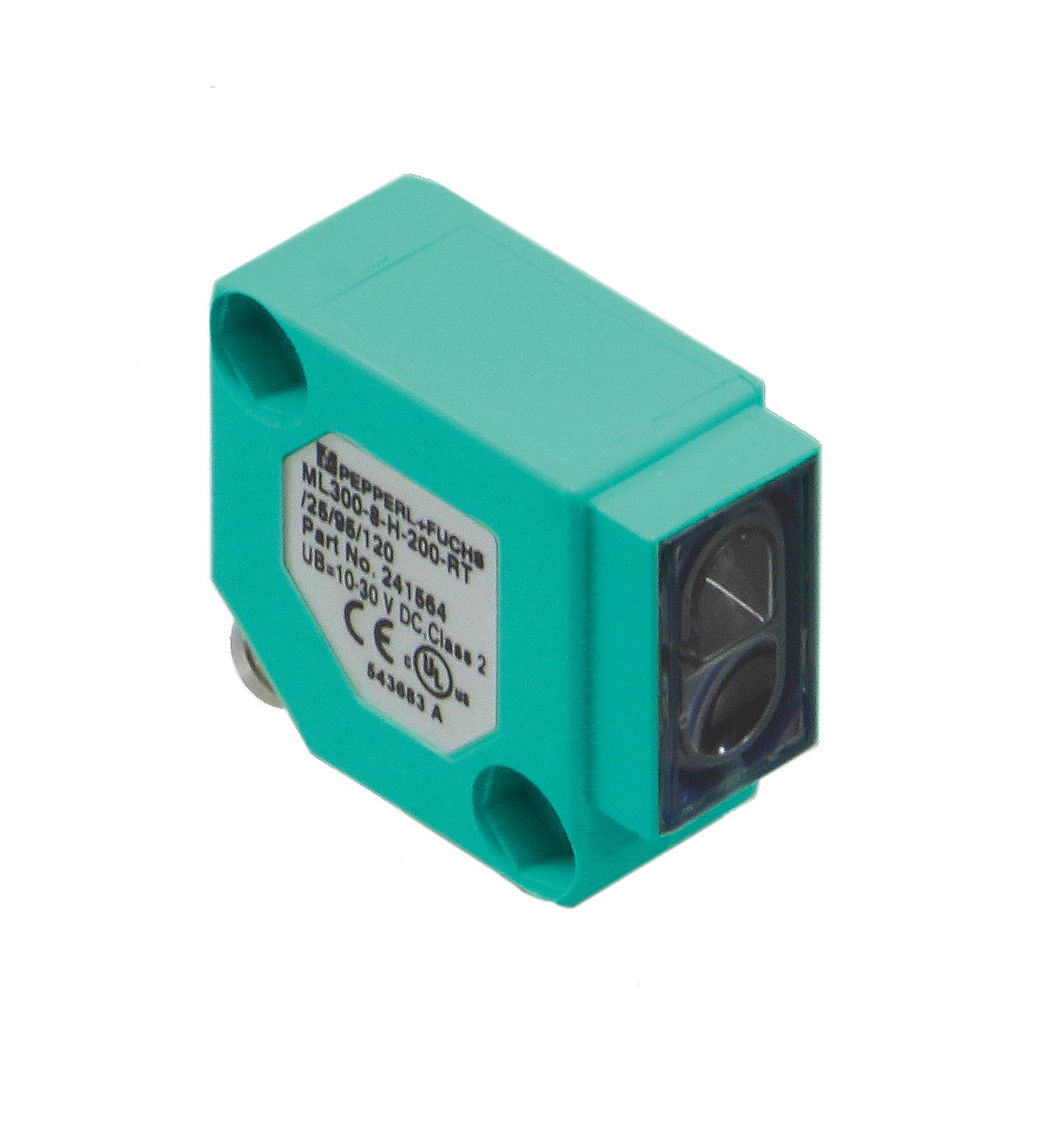

ML300-8-H-200-RT/25/98/103

Background suppression sensor. Background suppression sensor, Miniature design, Easy to use, Visible red light, 45° connector. Detection range: 0 ... 200 mm , adjustable. Detection range min.: 5 ......

Background suppression sensor. Background suppression sensor, Miniature design, Easy to use, Visible red light, 45° connector. Detection range: 0 ... 200 mm , adjustable. Detection range min.: 5 ... 25 mm. Detection range max.: 0 ... 200 mm. Adjustment range: 25 ... 200 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light , 660 nm. Black-white difference (6 %/90 %): 15 % at 200 mm. Diameter of the light spot: approx. 12 mm at a distance of 200 mm. Opening angle: approx. 3.5 °. Ambient light limit: . Continuous light10000 LuxModulated light5000 Lux: . Continuous light: 10000 Lux. Modulated light: 5000 Lux. Accessories provided: Mounting bracket OMH-ML300-01. Function indicator: LED yellow: lights up when output is active LED green: lights up with a stable object recognition. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC. Ripple: max. 20 %. No-load supply current: max. 25 mA. Switching type: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 0.1 A. Voltage drop: ≤ 2 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-2:2007: . EMC Directive 2004/108/EC: EN 60947-5-2:2007. Standard conformity: . Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axesVibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes: . Product standard: EN 60947-5-2:2007 IEC 60947-5-2:2007. Shock and impact resistance: EN 60947-5-7 30 g, 11 ms, all axes. Vibration resistance: EN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Degree of protection: IP67. Connection: M8 x 1 connector, 3-pin. Material: . HousingPBTOptical faceglass paneConnectormetal: . Housing: PBT. Optical face: glass pane. Connector: metal. Mass: 18 g. Dimensions: . Height30 mmWidth30 mmDepth15 mm: . Height: 30 mm. Width: 30 mm. Depth: 15 mm

Brand	Pepperl Fuchs
Lifecycle status	active
