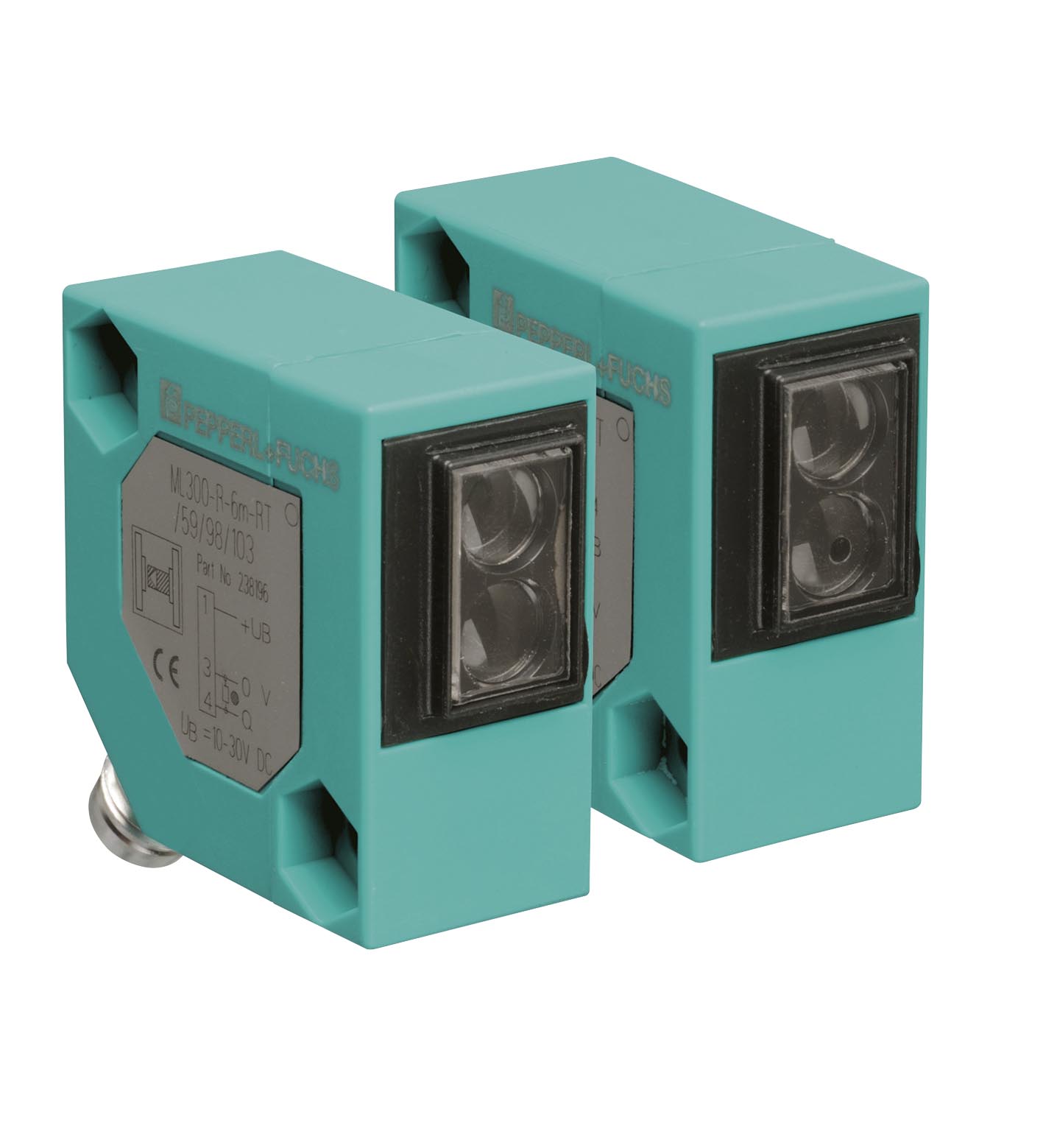

ML300-P-6m-RT/25/98/103

Thru-beam sensor. Thru-beam sensor for basic applications, miniature design, 6 m detection range, red light, light on, PNP output, M8 plug, Miniature design, Easy to use, Visible red light, 45° connec...

Thru-beam sensor. Thru-beam sensor for basic applications, miniature design, 6 m detection range, red light, light on, PNP output, M8 plug, Miniature design, Easy to use, Visible red light, 45° connector. Emitter: ML300-T-6m-RT/98. Receiver: ML300-R-6m-RT/25/98/103. Effective detection range: 0 ... 6 m. Threshold detection range: 8 m. Light source: LED. Light type: modulated visible red light 660 nm. Diameter of the light spot: approx. 500 mm at 6 m. Opening angle: approx. 5 °. Ambient light limit: . Continuous light10000 LuxModulated light5000 Lux: . Continuous light: 10000 Lux. Modulated light: 5000 Lux. Function indicator: LED yellow: lights up when output is active LED green: Sufficient operating reserve. Control elements: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 20 mA Receiver: ≤ 20 mA. Switching type: light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 0.1 A. Voltage drop: ≤ 2 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axesVibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes: . Shock and impact resistance: EN 60947-5-7 30 g, 11 ms, all axes. Vibration resistance: EN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Degree of protection: IP65. Connection: M8 x 1 connector, 3-pin. Material: . HousingABSOptical faceplasticConnectormetal: . Housing: ABS. Optical face: plastic. Connector: metal. Mass: 35 g (emitter and receiver). Dimensions: . Height30 mmWidth30 mmDepth15 mm: . Height: 30 mm. Width: 30 mm. Depth: 15 mm

Brand	Pepperl Fuchs
Lifecycle status	active
