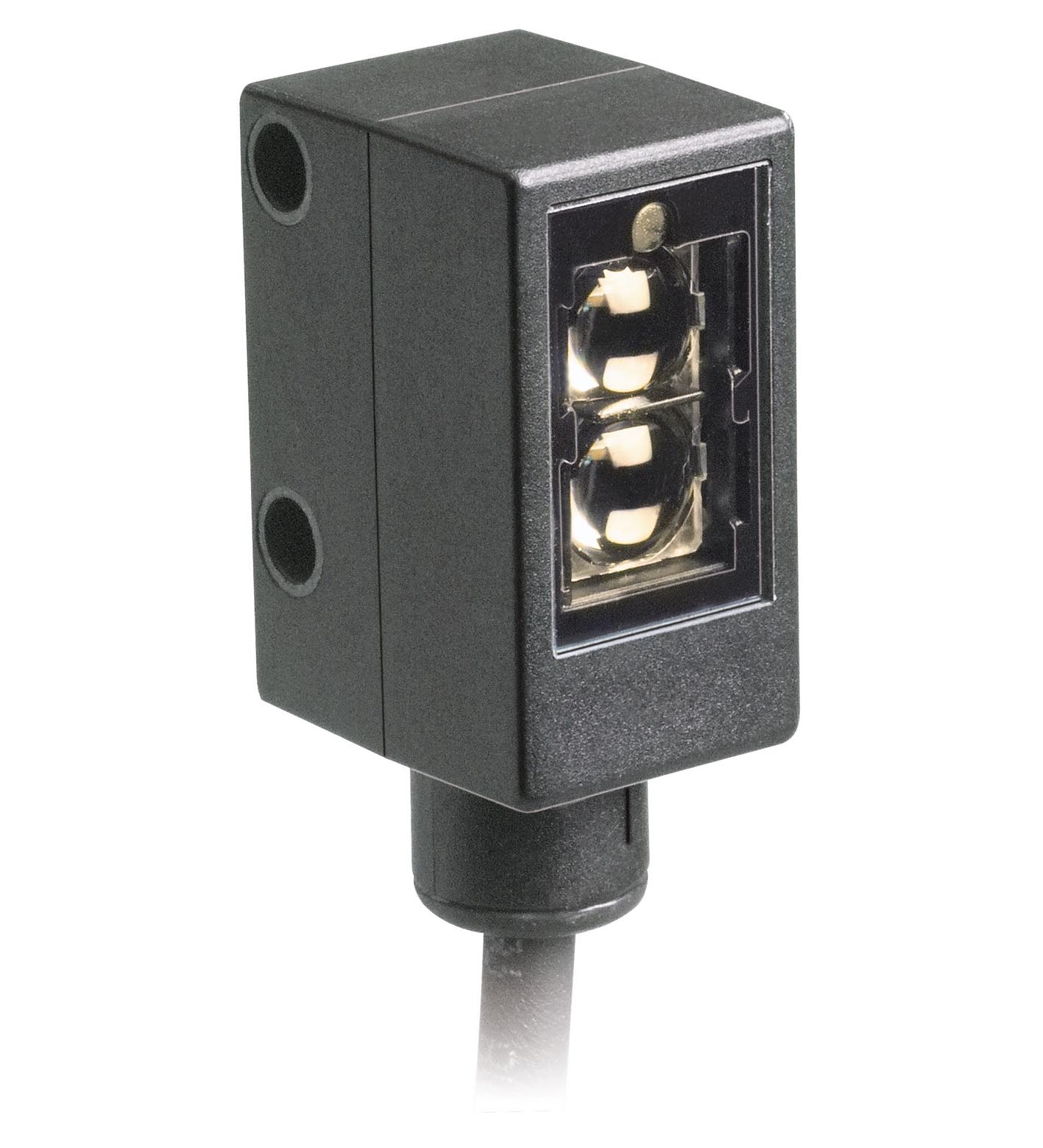

ML4.2-8-H-20-IR-4549

Background suppression sensor. Background suppression sensor, Dual sensor with two Light spots, Precise background suppression, Very small black-white difference, Highly visible LEDs for Power-On, sw...

Background suppression sensor. Background suppression sensor, Dual sensor with two Light spots, Precise background suppression, Very small black-white difference, Highly visible LEDs for Power-On, switching status, short-circuit, and undervoltage, Metal-reinforced fastening holes. Detection range: 7 ... 20 mm. Detection range max.: 5 ... 25 mm. Background suppression: starts from 25 mm. Light source: 2 IRED. Light type: modulated infrared light , 880 nm. Black-white difference (6 %/90 %): approx. 1 mm. Diameter of the light spot: 2 light spots: size 2.5 mm distance 5 mm at 20 mm. Opening angle: approx. 5 °. Ambient light limit: . Continuous light40000 LuxModulated light5000 Lux: . Continuous light: 40000 Lux. Modulated light: 5000 Lux. MTTFd: 1940 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow: lights when object is detected. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: < 20 mA. Switching type: light/dark on electrically switchable. Signal output: Push-pull output, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. CE conformity: yes. UL approval: cULus Listed. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67 / IP69K. Connection: 2 m fixed cable. Material: . HousingABSOptical faceglass paneCablePUR: . Housing: ABS. Optical face: glass pane. Cable: PUR. Mass: approx. 50 g. Dimensions: . Height31.4 mmWidth13.9 mmDepth18 mm: . Height: 31.4 mm. Width: 13.9 mm. Depth: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
